1
Engine displacement
570
2
Year
2019
3
Trim
ACE 570 EPS
4
Parts Catalog
STEERING
5

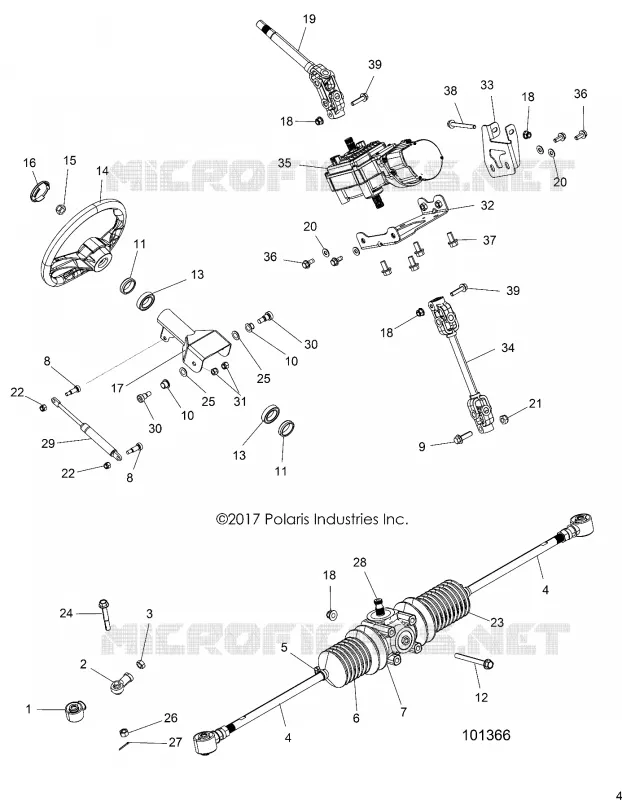

Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUAL
by
FRONT SUSPENSION
STEERING
1
2
3
1
1
5
23
7
8
8
9
10
10
11
11
12
13
13
14
15
16
17
18
18
18
18
19
20
20
21
22
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
39
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ROD-END 10MM M14-1.5LH 54DEG
7061189
$136,49 Unit Price incl. VAT
3
NUT JAM LH THREAD
2205058
$41,99 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BELLOWS CLAMP SMALL
7080978
$4,19 Unit Price incl. VAT
6
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
7
CLAMP LARGE BELLOWS
7080979
$10,49 Unit Price incl. VAT
8
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
9
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
10
BUSHING TILT STEERING
5439154
$6,29 Unit Price incl. VAT
11
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
12
SCR-HXFL M8X1.25X80 8.8 ZOD
7519217
$3,14 Unit Price incl. VAT
13
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
14
WHEEL-STEERING 14#
1823623
$246,74 Unit Price incl. VAT
15
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
16
CAP-STEERING WHEEL
5436536
$62,99 Unit Price incl. VAT
17
ASM-PIVOT TUBE M.BLK [INCL. 13]
1022896458
$89,24 Unit Price incl. VAT
18
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
19
SHAFT STEERING EPS UPPER
1824286
$293,99 Unit Price incl. VAT
20
WASHER-.327X.875X.090 FL-Y
7555960
$7,34 Unit Price incl. VAT
21
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
22
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
23
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
24
SCR-HXFL-M10X1.25X75 10.9 ZOD
7519854
$31,49 Unit Price incl. VAT
25
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
26
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
ASM-GEARBOX STEERING 17T [INCL. 2-7 23]
1824540
$902,99 Unit Price incl. VAT
29
ASM-SHOCK TILT STEERING SHORT
7044699
$152,24 Unit Price incl. VAT
30
SCR-SHS-M10X1.5-M12X16 RIE
7519355
$19,94 Unit Price incl. VAT
31
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$7,34 Unit Price incl. VAT
32
BRACKET BASE EPS
1020912329
$178,49 Unit Price incl. VAT
33
BRACKET EPS LH
5260034329
$73,49 Unit Price incl. VAT
34
SHAFT-STEERING EPS LOWER 17T
1824549
$241,49 Unit Price incl. VAT
35
ASM-POWER STEERING G2 ACE
2414684
$3 291,74 Unit Price incl. VAT
36
BOLT-M8X1.25X20 HXHDFLG W/PTCH
7518450
$3,14 Unit Price incl. VAT
37
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
38
SCR-M8X1.25X75 8.8 HX/FL ZOD
7518955
$6,29 Unit Price incl. VAT
39
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
