CYLINDER HEAD, CAM AND VALVES FOR SPORTSMAN XP 1000 HIGH LIFTER EDITION FROM 2020

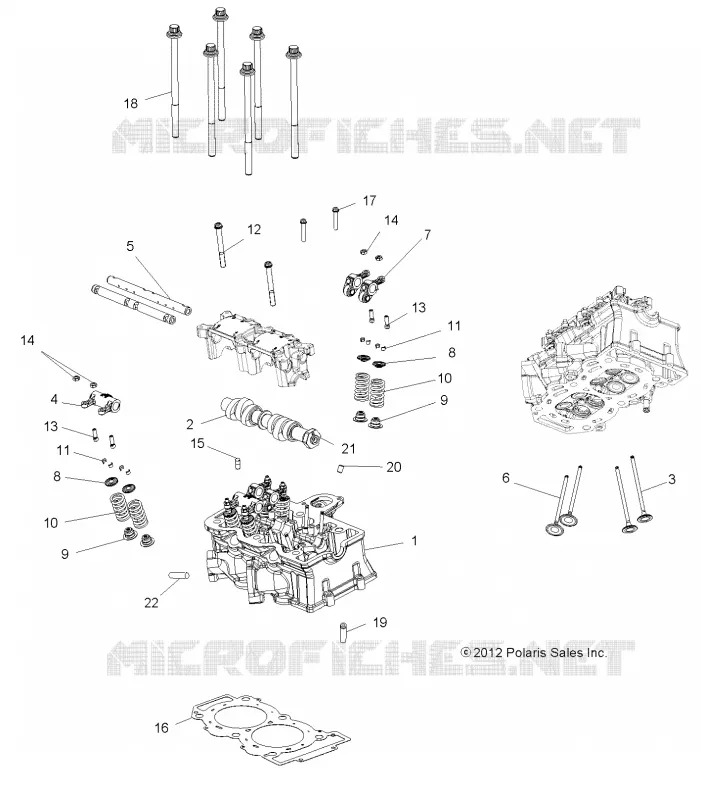

CYLINDER HEAD, CAM AND VALVES

1

ASM. CYLINDER HEAD [INCL. CAMSHAFT CARRIER PLUG]

3022549

$1 730,39 Unit Price incl. VAT

1

PLUG

7052532

$52,49 Unit Price incl. VAT

2

ASM. CAM SHAFT [INCL. 21][TO 9/1/2022]

3022643

$734,99 Unit Price incl. VAT

3

VALVE-EXHAUST 28MM SUH35

3022589

$62,99 Unit Price incl. VAT

4

ASM. ARM ROCKER EXHAUST [INCL. ARM SCREW NUT]

1205374

$257,24 Unit Price incl. VAT

5

ASM-ROCKER SHAFT

3022728

$125,99 Unit Price incl. VAT

5

ASM-ROCKER SHAFT [FROM 3/1/2020]

3023036

$125,99 Unit Price incl. VAT

6

VALVE-INTAKE 33MM

3022203

$62,99 Unit Price incl. VAT

7

ASM. ARM ROCKER INTAKE [INCL. ARM SCREW NUT]

1205375

$178,49 Unit Price incl. VAT

8

RETAINER VALVE

3021865

$9,44 Unit Price incl. VAT

9

Seal Valve

3610165

$14,69 Unit Price incl. VAT

10

SPRING VALVE

7043947

$52,49 Unit Price incl. VAT

11

KEEPER-VALVE

7081470

$9,44 Unit Price incl. VAT

12

SCREW

7519293

$13,64 Unit Price incl. VAT

13

SCREW LASH ADJUSTER SWIVEL

5142377

$15,74 Unit Price incl. VAT

14

NUT LOCK

7547933

$6,29 Unit Price incl. VAT

15

JET-OIL OIL PUMP

2540080

$17,84 Unit Price incl. VAT

16

GASKET-CYLINDER HEAD 1000XP

5813933

$110,24 Unit Price incl. VAT

17

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$7,34 Unit Price incl. VAT

18

Bolt Head

7519219

$18,89 Unit Price incl. VAT

19

GUIDE VALVE

3022348

$16,79 Unit Price incl. VAT

20

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

21

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

22

STUD EXHAUST MOUNT [FROM 11/4/2019]

5132040

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
