FRONT WISHBONES FOR 600 SWITCHBACK XCR FROM 2018

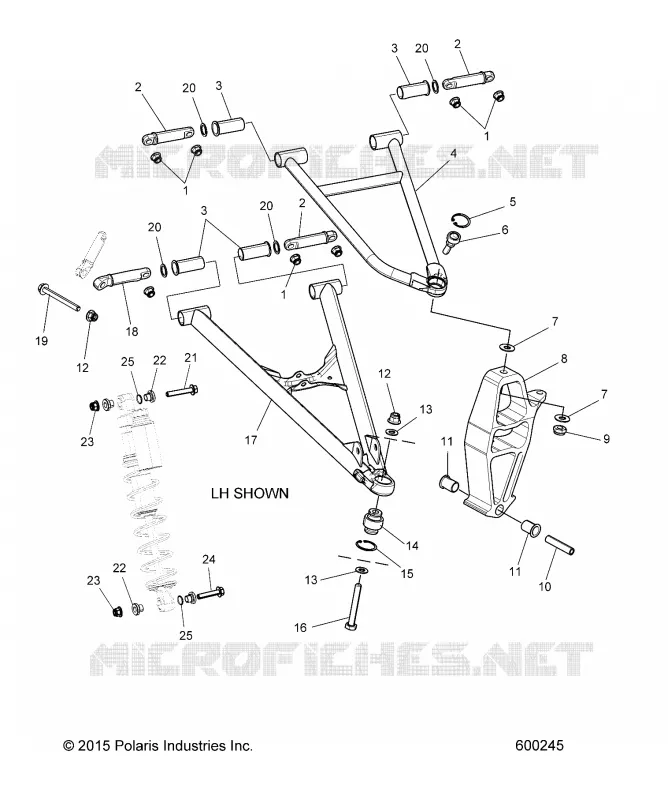

FRONT WISHBONES

1

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

2

SHAFT PIVOT

5139521

$52,49 Unit Price incl. VAT

3

BUSHING PIVOT

5450297

$6,29 Unit Price incl. VAT

4

CONTROL ARM LH UPPER MOLY MATTE BLACK [ALSO ORDER FASTENERS 1 9]

1824171458

$283,49 Unit Price incl. VAT

4

CONTROL ARM RH UPPER MOLY MATTE BLACK [ALSO ORDER FASTENERS 1 9]

1824172458

Not Available

5

RING RETAINING

7710642

$4,19 Unit Price incl. VAT

6

BEARING SPHERICAL UPPER CONTROL ARM

7061179

$47,24 Unit Price incl. VAT

7

WASHER-7/16 SAE STF THRU-HRD-Y

7556212

$15,74 Unit Price incl. VAT

8

ASM. SPINDLE LH MATTE BLACK [SNOW CHECK][INCL. 11]

1823801458

$456,74 Unit Price incl. VAT

8

ASM. SPINDLE RH MATTE BLACK [SNOW CHECK][INCL. 11]

1823802458

$456,74 Unit Price incl. VAT

9

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

10

BUSHING

5136910

$13,64 Unit Price incl. VAT

11

BUSHING SKI PIVOT

5438460

$27,29 Unit Price incl. VAT

12

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

13

WASHER

7555806

$1,56 Unit Price incl. VAT

14

KIT SPHERICAL BEARING LOWER

2204229

$54,59 Unit Price incl. VAT

15

RING RETAINING

7710539

$4,19 Unit Price incl. VAT

16

SCREW M10x75 HCS

7519015

$10,49 Unit Price incl. VAT

17

CONTROL ARM LOWER LH MATTE BLACK [ALSO ORDER FASTENERS 1 12]

1824169458

Not Available

17

CONTROL ARM LOWER RH MATTE BLACK [ALSO ORDER FASTENERS 1 12]

1824170458

Not Available

18

SHAFT PIVOT LOWER CONTROL ARM FRONT

5139607

$52,49 Unit Price incl. VAT

19

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

$9,44 Unit Price incl. VAT

20

WASHER

7556758

$6,29 Unit Price incl. VAT

21

SCREW

7518941

$7,34 Unit Price incl. VAT

22

SPACER-10.2IDX12.62OD

5136530

$8,39 Unit Price incl. VAT

23

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

24

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

25

O-RING 0.600IDX.210

5412290

$3,66 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
