1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN TOURING 570 EFI/EPS
4
Parts Catalog

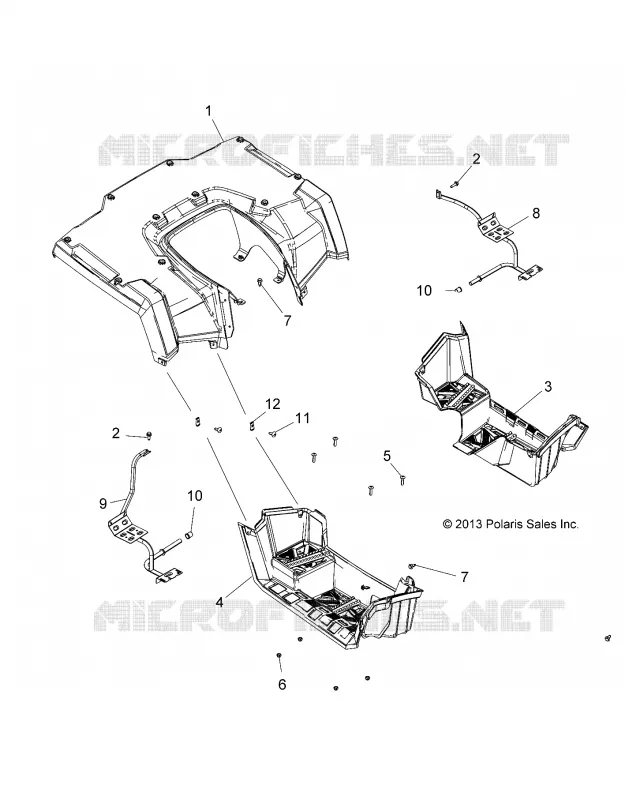

REAR BODYWORK CAB AND FOOTWELLS
5
Parts Diagram
Parts Catalog
by
STORAGE, FRONT
REAR BODYWORK CAB AND FOOTWELLS
1
ASM-CAB RR SVC VELOCITY BLUE [B5][INCL. REFLECTORS]
2635180689
$2 010,74 Unit Price incl. VAT
1
ASM-CAB RR SVC INDY RED [SEE57R7] [INCL. REFLECTORS]
2635180293
$2 010,74 Unit Price incl. VAT
2
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
3
FOOTWELL-TOUR LH BLK [TO 4/24/2023]
5450543070
5465175-070
$430,49 Unit Price incl. VAT
4
FOOTWELL-TOUR RH BLK [TO 4/24/2023]
5450544070
5465176-070
$430,49 Unit Price incl. VAT
5
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
6
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
7
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
8
WELD-PASS FOOTWELL LH E-COAT
1019966329
$178,49 Unit Price incl. VAT
9
WELD-PASS FOOTWELL RH E-COAT
1019967329
$178,49 Unit Price incl. VAT
10
Bushing
5433369
$20,99 Unit Price incl. VAT
11
SCR-1/4-20X.75 TR/TX-M
7518280
$2,09 Unit Price incl. VAT
12
NUT-1/4-20 U-TYPE(.080-.170)
7670145
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
