1
Engine displacement
500
2
Year
1991
3
Trim
500-sp-0910664
4
Parts Catalog

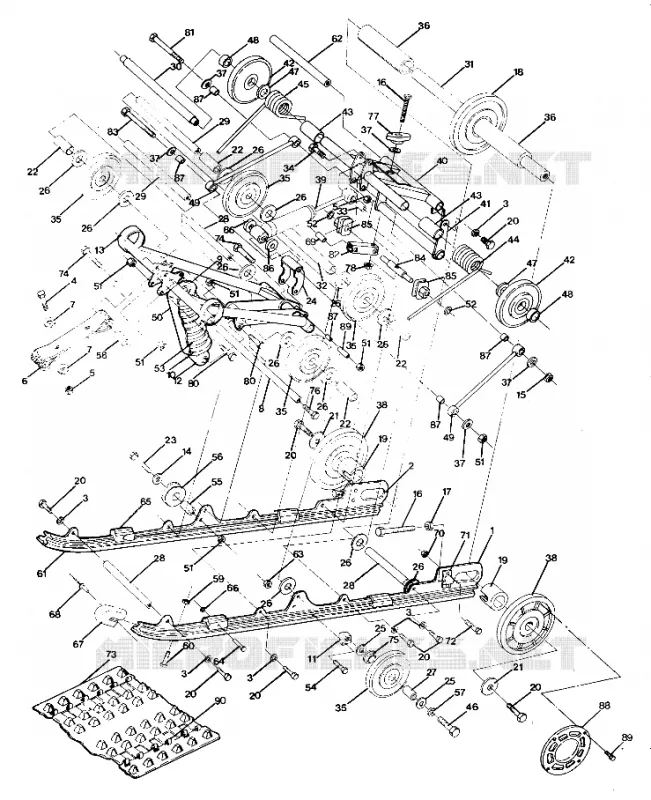

SUSPENSION 500 AND 500 CLASSIC (4919251925011A)
5
Parts Diagram
Parts Catalog
HOOD 500 AND 500 CLASSIC (4919251925003A)
by
ENGINE MOUNTING 500 AND 500 CLASSIC (4919251925013A)
SUSPENSION 500 AND 500 CLASSIC (4919251925011A)
1
RAIL ASM LH SILVER (Incl. 64-66 70-72) (400)
1540553
Not Available
1
RAIL ASM. LH
1540615
$435,74 Unit Price incl. VAT
2
RAIL ASM RH SILVER (Incl. 64-66 70-72)
1540554
Not Available
2
RAIL ASM RH
1540616
$435,74 Unit Price incl. VAT
3
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
4
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
5
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
6
STRAP LIMITER
5410397
Not Available
7
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
8
SHAFT MOUNTING
5010149
Not Available
9
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
10
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
11
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
12
SHOCK-SUSP
7041142
Not Available
13
ARM FRONT TORQUE Substituted by 1540667-067
1540667
Not Available
14
WASHER(10)
7555743
Not Available
15
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
16
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
17
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
18
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
19
SPACER-IDLER-OUTER
5332641
Not Available
20
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
21
WASHER FLAT(10)
7555732
Not Available
22
SPACER OUTER
5332784
Not Available
23
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
24
ARM SHOCK PIVOT Substituted by 1540664-067
1540664
Not Available
25
WASHER
7555804
$7,34 Unit Price incl. VAT
26
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
27
SPACER
5332786
$13,64 Unit Price incl. VAT
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
5020723
$47,24 Unit Price incl. VAT
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$47,24 Unit Price incl. VAT
30
AXLE Substituted by 5020906
5020426
Not Available
31
SHAFT REAR IDLER Substituted by 5020722
5020395
Not Available
32
TUBE SUSPENSION
5332783
Not Available
33
BUSHING R.SHOCK
5333030
Not Available
34
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
35
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
36
SPACER IDLER R.INNER Substituted by 5333086
5332734
Not Available
37
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
38
WHEEL OUTER W/HOLES Substituted by 1594021 (600 SE)
1594035
Not Available
38
WHEEL IDLER BLUE (500 Only)
1594038
Not Available
38
WHEEL IDLER (400)
1594032
Not Available
39
SHOCK ASM. Substituted by 7041441
7041250
Not Available
39
SHOCK ASM.
7041237
Not Available
40
ARM REAR TORQUE Substituted by 1540666-067
1540666
Not Available
41
ARM REAR PIVOT Substituted by 1540665-067
1540665
Not Available
42
WHEEL CARRIER ASM
1543022
$115,49 Unit Price incl. VAT
43
TUBE
5431171
Not Available
44
SPRING LH R.SUSP. Substituted by 7041248-067
7041248
Not Available
44
SPRING LH R.SUSP. Substituted by 7041246-067
7041246
Not Available
44
SPRING LH Substituted by 7041235-067
7041235
Not Available
45
SPRING RH Substituted by 7041236-067
7041236
Not Available
45
SPRING RH R.SUSP. Substituted by 7041249-067
7041249
Not Available
45
SPRING RH R.SUSP. Substituted by 7041247-067
7041247
Not Available
46
SCREW
7512659
$13,64 Unit Price incl. VAT
47
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
48
SPACER-CARR.WHEEL
5332730
$22,04 Unit Price incl. VAT
49
ROD SUSPENSION Substituted by 1540662-067
1540662
Not Available
50
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
51
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
52
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
53
SPRING-SHOCK SUSP
7041140
Not Available
54
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
55
SPACER
5332787
Not Available
56
ROLLER-SPRING
5430540
Not Available
57
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
58
BUSHING SUSPENSION
5010212
Not Available
59
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
60
SCREW
7512227
$6,29 Unit Price incl. VAT
61
SLIDER BLACK(2) (Black) (500 Classic Only)
5521320
Not Available
61
SLIDE RED (HIFAX) Substituted by 5521321 (Blk) (Trail)
5521104
5521452
$73,49 Unit Price incl. VAT
62
SHAFT R.TORQUE ARM Substituted by 5020727
5020559
Not Available
63
Nut
7542403
Not Available
64
RIVET (50)
7661609
Not Available
65
BUMPER-SUSPENSION Substituted by 5810554
5410315
$15,74 Unit Price incl. VAT
66
PALNUT(10)
7670009
$4,19 Unit Price incl. VAT
67
COVER RAIL TIP
5430627
$62,99 Unit Price incl. VAT
68
RIVET
7621435
$2,09 Unit Price incl. VAT
69
SPACER R.PIVOT ARM
5333026
$4,92 Unit Price incl. VAT
71
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
72
BOLT(10)
7512247
Not Available
73
TRACK (650) (650)
5410498
Not Available
73
TRACK 133 Substituted by 5410594
5410461
Not Available
74
BOLT
7515438
$9,44 Unit Price incl. VAT
75
INSERT-WHEEL Substituted by 5431531
5430789
5431531
$19,94 Unit Price incl. VAT
76
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
76
BOLT(10)
7515432
Not Available
77
KNOB SPRING ADJ.
5630361
Not Available
78
NUT
7542449
$7,34 Unit Price incl. VAT
80
SCREW
7515415
$2,09 Unit Price incl. VAT
81
SCR-3/8-16X3 1/2HXHD TAP GR5-Y
7515459
$10,49 Unit Price incl. VAT
82
TUBE
5130748
Not Available
83
SCREW
7515496
$17,84 Unit Price incl. VAT
84
ROD SPRING ADJ.
5130746
Not Available
85
ROLLER SPRING ADJ.
5431168
Not Available
86
SPACER R.SHOCK(10)
5211224
Not Available
87
BUSHING Substituted by 5020561
5333027
$2,61 Unit Price incl. VAT
88
COVER IDLER WHL. (600 SE)
5220442
$41,04 Unit Price incl. VAT
89
SCREW WHL.COVER(SE)(10)
7511853
Not Available
90
CLIP METAL(YOKOHAMA) (10) (TRAIL)
5222109
Not Available
90
BUSHING
5430537
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for 500 SP - 0910664

NOSEPAN 500 and 500 Classic (4919251925005A)

NOSEPAN 500 and 500 Classic (4919251925005A)

for 500 SP - 0910664 from 1991

CONSOLE 500 AND 500 CLASSIC (4919251925006A)

CONSOLE 500 AND 500 CLASSIC (4919251925006A)

for 500 SP - 0910664 from 1991

FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4919251925007A)

FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4919251925007A)

for 500 SP - 0910664 from 1991

BRAKE CHAINCASE 500 AND 500 CLASSIC TO SERIAL NUMBER 1808614

BRAKE CHAINCASE 500 AND 500 CLASSIC TO SERIAL NUMBER 1808614

for 500 SP - 0910664 from 1991

DRIVEN CLUTCH 500 AND 500 CLASSIC (4919251925016A)

DRIVEN CLUTCH 500 AND 500 CLASSIC (4919251925016A)

for 500 SP - 0910664 from 1991

ELECTRIC START COMPONENTS 500 and 500 Classic (4919251925017A)

ELECTRIC START COMPONENTS 500 and 500 Classic (4919251925017A)

for 500 SP - 0910664 from 1991

MASTER CYLINDER 500 AND 500 CLASSIC (4919251925018A)

MASTER CYLINDER 500 AND 500 CLASSIC (4919251925018A)

for 500 SP - 0910664 from 1991

COOLING SYSTEM 500 AND 500 CLASSIC (4919251925019A)

COOLING SYSTEM 500 AND 500 CLASSIC (4919251925019A)

for 500 SP - 0910664 from 1991

MAGNETO 500 AND 500 CLASSIC (4919251925026A)

MAGNETO 500 AND 500 CLASSIC (4919251925026A)

for 500 SP - 0910664 from 1991

RECOIL STARTER 500 AND 500 CLASSIC (4919251925027A)

RECOIL STARTER 500 AND 500 CLASSIC (4919251925027A)

for 500 SP - 0910664 from 1991

OIL PUMP 500 AND 500 CLASSIC (4919251925028A)

OIL PUMP 500 AND 500 CLASSIC (4919251925028A)

for 500 SP - 0910664 from 1991

FUEL PUMP 500 AND 500 CLASSIC (4919251925029A)

FUEL PUMP 500 AND 500 CLASSIC (4919251925029A)

for 500 SP - 0910664 from 1991

CARBURETOR '500 AND 500 CLASSIC (4919251925030A)

CARBURETOR '500 AND 500 CLASSIC (4919251925030A)

for 500 SP - 0910664 from 1991

CARBURETOR-ECSOPL-04,-05 500 AND 500 CLASSIC (4919251925035A)

CARBURETOR-ECSOPL-04,-05 500 AND 500 CLASSIC (4919251925035A)

for 500 SP - 0910664 from 1991

BRAKE CHAINCASE 500 AND 500 CLASSIC FROM SERIAL NUMBER 1808615

BRAKE CHAINCASE 500 AND 500 CLASSIC FROM SERIAL NUMBER 1808615

for 500 SP - 0910664 from 1991

CHASSIS AND SEAT 500 AND 500 CLASSIC (4919251925001A)

CHASSIS AND SEAT 500 AND 500 CLASSIC (4919251925001A)

for 500 SP - 0910664 from 1991

HOOD 500 AND 500 CLASSIC (4919251925003A)

HOOD 500 AND 500 CLASSIC (4919251925003A)

for 500 SP - 0910664 from 1991

SUSPENSION 500 AND 500 CLASSIC (4919251925011A)

SUSPENSION 500 AND 500 CLASSIC (4919251925011A)

for 500 SP - 0910664 from 1991

ENGINE MOUNTING 500 AND 500 CLASSIC (4919251925013A)

ENGINE MOUNTING 500 AND 500 CLASSIC (4919251925013A)

for 500 SP - 0910664 from 1991

DRIVE CLUTCH 500 AND 500 CLASSIC TO SERIAL NO. 1841611 (4919251925015A)

DRIVE CLUTCH 500 AND 500 CLASSIC TO SERIAL NO. 1841611 (4919251925015A)

for 500 SP - 0910664 from 1991

DRIVE CLUTCH FROM SERIAL NO. 1841612 (4919251925015B)

DRIVE CLUTCH FROM SERIAL NO. 1841612 (4919251925015B)

for 500 SP - 0910664 from 1991

STEERING 500 AND 500 CLASSIC (4919251925020A)

STEERING 500 AND 500 CLASSIC (4919251925020A)

for 500 SP - 0910664 from 1991

CRANKCASE 500 AND 500 CLASSIC (4919251925023A)

CRANKCASE 500 AND 500 CLASSIC (4919251925023A)

for 500 SP - 0910664 from 1991

CYLINDER 500 AND 500 CLASSIC (4919251925024A)

CYLINDER 500 AND 500 CLASSIC (4919251925024A)

for 500 SP - 0910664 from 1991

PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4919251925025A)

PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4919251925025A)

for 500 SP - 0910664 from 1991

STARTER 500 AND 500 CLASSIC (4919251925031A)

STARTER 500 AND 500 CLASSIC (4919251925031A)

for 500 SP - 0910664 from 1991

WATER PUMP 500 AND 500 CLASSIC (4919251925032A)

WATER PUMP 500 AND 500 CLASSIC (4919251925032A)

for 500 SP - 0910664 from 1991

MAGNETO-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925033A)

MAGNETO-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925033A)

for 500 SP - 0910664 from 1991

OIL PUMP-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925034A)

OIL PUMP-EC50PL-04,-05 500 AND 500 CLASSIC (4919251925034A)

for 500 SP - 0910664 from 1991

POLARIS 500 SP - 0910664 1991

500 SP - 0910664

500 SP - 0910664

Model : OTHERS

Engine capacity : 500

Year : 1991

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
