1
Engine displacement
500
2
Year
1994
3
Trim
500 EFI SKS - 0942574
4
Parts Catalog
MAGNETO ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498038A)
5
Parts Diagram
Parts Catalog
WATER PUMP 500 EFI 0942774 AND EFI SKS 0942574 (4924982498033A)
by
RECOIL STARTER ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498039A)

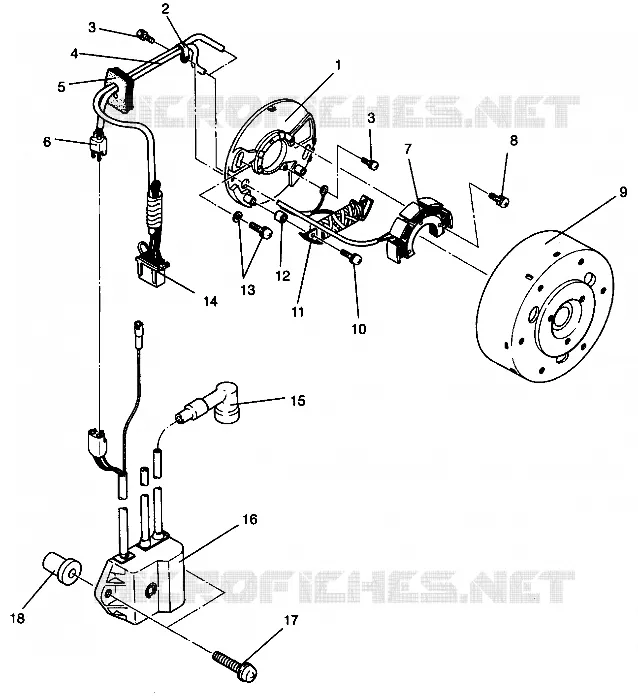

MAGNETO ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498038A)
1
PLATE ASM.
3084634
Not Available
1
PLATE COIL
3083987
$524,99 Unit Price incl. VAT
2
CLAMP
3081146
$2,09 Unit Price incl. VAT
3
SCREW&WASHER (10)
3081260
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
GROMMET
3082969
Not Available
6
COUPLER
3083909
$41,99 Unit Price incl. VAT
7
STATOR #1 (Touring)
3084635
Not Available
8
SCREW(10)
3082365
$6,29 Unit Price incl. VAT
9
FLYWHEEL (Touring)
3084636
Not Available
10
SCREW&WASHER
3084510
Not Available
11
COIL EXCITER
3083984
$173,24 Unit Price incl. VAT
12
COLLAR (Touring Only)
3084638
Not Available
13
SCREW&WASHER (10)
3082175
Not Available
14
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
15
CAP SPARK PLUG (10)
4020129
4083595
$52,49 Unit Price incl. VAT
16
COIL IGNITION
3084288
Not Available
17
SCREW AND WASHER
3083784
$4,19 Unit Price incl. VAT
18
NUT-RUBBER
3083240
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
