1
Engine displacement
330
2
Year
2005
3
Trim
ATP 330 4X4 QUAD - A05JD32EA
4
Parts Catalog

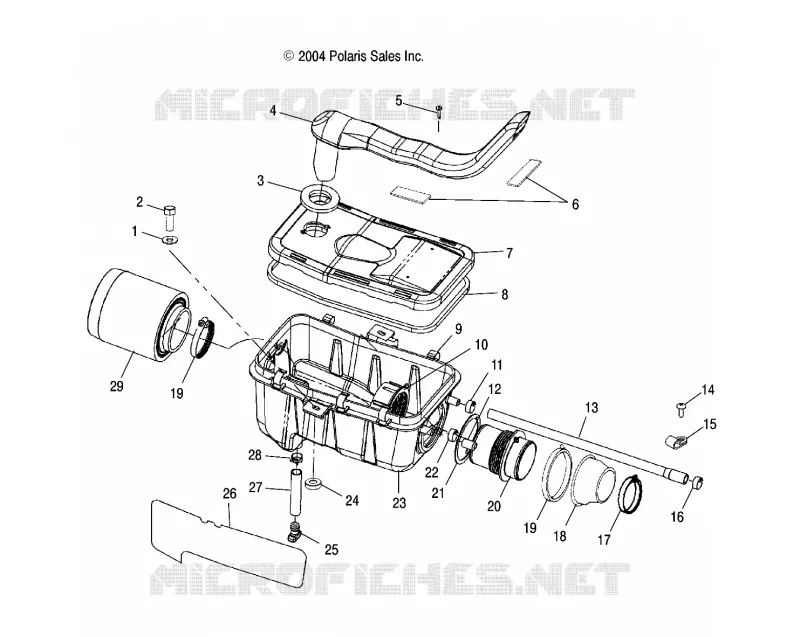

AIR BOX
5
Parts Diagram
Parts Catalog
OIL COOLING
by
FRONT STRUT
AIR BOX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
2
Screw
7518306
$7,34 Unit Price incl. VAT
3
Seal
5812023
$10,70 Unit Price incl. VAT
4
Duct Inlet
5433920
Not Available
5
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
6
PAD
5810317
Not Available
7
COVER AIRBOX
5433769
$141,74 Unit Price incl. VAT
8
SEAL AIRBOX COVER
5811482
5813949
$52,49 Unit Price incl. VAT
9
CLIP-AIR BOX
5242044
$17,84 Unit Price incl. VAT
10
COLLAR CARB INLET
5432601
$24,14 Unit Price incl. VAT
11
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
12
CAP END AIRBOX
5433396
$9,44 Unit Price incl. VAT
13
HOSE BRTHR .47-.38X13.5#
5411866
$18,57 Unit Price incl. VAT
14
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
15
CLAMP-CABLE 9/16 I.D.
7080499
$10,49 Unit Price incl. VAT
16
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
17
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
18
BOOT-CARB 325 PVT
5411588
Not Available
19
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
20
DUCT-CARB INLET
5433180
$68,24 Unit Price incl. VAT
21
GASKET CARB.IN.DUCT
5830128
Not Available
22
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
23
Box Air Intake 4 Stroke
5435758
Not Available
24
SPACER-.26IDX.75ODX.38 NY BLK
7556091
$7,34 Unit Price incl. VAT
25
Plug Trap
5432377
Not Available
26
FOIL-ARIBOX RH
5812111
Not Available
27
Line
8450059100
$115,49 Unit Price incl. VAT
28
CLAMP HOSE (10)
7080650
$7,34 Unit Price incl. VAT
29
ASM-FILTER AIR 4.0# LONG (Incl. 27)
1253372
$49,13 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
