1
Engine displacement
900
2
Year
2016
3
Trim
RZR 900 50 / 55 INCH ALL OPTIONS
4
Parts Catalog

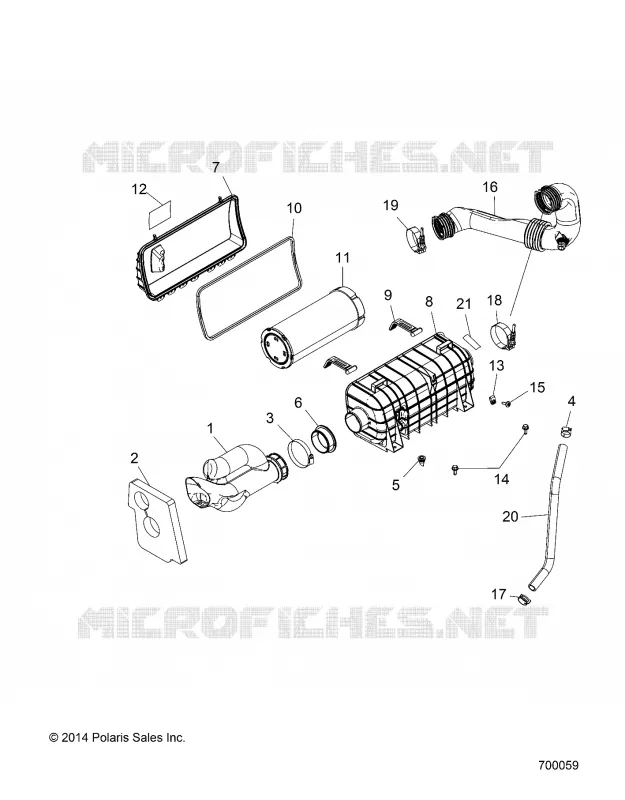

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
ENGINE, CRANKSHAFT AND PISTON
ENGINE, AIR INTAKE SYSTEM
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
1
DUCT INTAKE AIRBOX
5450781
$99,74 Unit Price incl. VAT
2
PANEL INTAKE SEPARATOR
5814168
$20,99 Unit Price incl. VAT
3
CLAMP HOSE 3.25 SS
7080439
$17,84 Unit Price incl. VAT
4
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
5
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
6
SEAL INTAKE AIRBOX
5415155
$10,49 Unit Price incl. VAT
7
COVER AIRBOX
5451097
$104,99 Unit Price incl. VAT
8
AIRBOX
5451098
$272,99 Unit Price incl. VAT
9
STRAP AIRBOX
5451099
$9,44 Unit Price incl. VAT
10
SEAL AIRBOX
5814054
5815300
$52,49 Unit Price incl. VAT
11
K-FILTER-AIR PERF RZX [OPT]
2881063
2882233
$120,74 Unit Price incl. VAT
11
FILTER AIR
7082115
$57,63 Unit Price incl. VAT
12
DECAL-CAUT.AIR BOX
7182652
Not Available
13
NUT-M6-1.0 U-TYPE (2.5-3.8)
7547674
$2,09 Unit Price incl. VAT
14
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
15
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
16
ASM. INTAKE DUCT [INCL. 18 19]
1240871
$351,74 Unit Price incl. VAT
17
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
18
CLAMP HOSE T-BOLT 72 DIA
7081978
$68,24 Unit Price incl. VAT
19
CLAMP HOSE T-BOLT 66.4 DIA
7081979
$68,24 Unit Price incl. VAT
20
HOSE VENT
5414896
$62,99 Unit Price incl. VAT
21
DECAL INTAKE DUCT
7182087
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
