1
Engine displacement
600
2
Year
2016
3
Trim
600-indy-sp-ltd
4
Parts Catalog

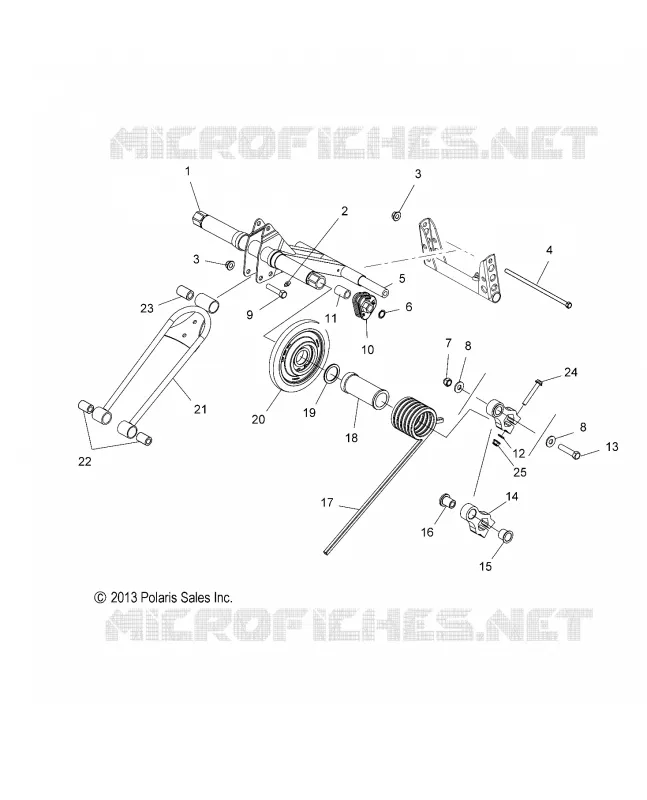

REAR SUSPENSION TORQUE ARM
5
Parts Diagram
Parts Catalog
SWAY BAR
by
FRONT BUMPER
REAR SUSPENSION TORQUE ARM
1
2
3
3
4
5
6
7
8
8
9
10
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
18
19
20
20
20
21
22
23
24
25
1
ARM TORQUE REAR BLACK
1543127329
$414,74 Unit Price incl. VAT
2
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
3
Nut Flanged Lock
7547263
$6,29 Unit Price incl. VAT
4
SCREW
7518241
$62,99 Unit Price incl. VAT
5
SHAFT
5133973
$47,24 Unit Price incl. VAT
6
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
7
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
8
WASHER FLAT
7555984
$4,19 Unit Price incl. VAT
9
SCREW
7515415
$2,09 Unit Price incl. VAT
10
ROLLER-SPRING TRI-ADJ LH
5434589
$68,24 Unit Price incl. VAT
10
ROLLER-SPRING TRI-ADJ RH
5434590
$62,99 Unit Price incl. VAT
11
SPACER-.520X.770X1.185 HDPE
5334285
$4,19 Unit Price incl. VAT
12
WASHER FLAT
7556557
$2,09 Unit Price incl. VAT
13
BOLT
7518271
$6,29 Unit Price incl. VAT
14
ASM. ARM [INCL. 15]
1543129
$83,99 Unit Price incl. VAT
15
BUSHING PIVOT
5439071
$34,64 Unit Price incl. VAT
16
SHAFT FLANGE
5134046
$47,24 Unit Price incl. VAT
17
SPRING TORSION .347S 80 11# BLACK LH [OPT]
7043070067
$209,99 Unit Price incl. VAT
17
SPRING TORSION .347S 77 9# BLACK LH [OPT]
7043240067
$230,99 Unit Price incl. VAT
17
SPRING TORSION .347S 77 9# BLACK RH [OPT]
7043241067
$230,99 Unit Price incl. VAT
17
SPRING TORSION .347S 80 10# BLACK RH [STD]
7043860329
$209,99 Unit Price incl. VAT
17
SPRING TORSION .359S 12.5# BLACK LH [OPT]
7043079067
$209,99 Unit Price incl. VAT
17
SPRING TORSION .347S 80 11# BLACK RH [OPT]
7043071067
$209,99 Unit Price incl. VAT
17
SPRING TORSION .347S 80 10# BLACK LH [STD]
7043859329
$209,99 Unit Price incl. VAT
17
SPRING TORSION .359S 12.5# BLACK RH [OPT]
7043080067
$209,99 Unit Price incl. VAT
18
SLEEVE-TORSION SPRING
5434989
$7,34 Unit Price incl. VAT
19
WSHR-1.28X1.69X.075-Y
7555939
$7,34 Unit Price incl. VAT
20
ASM-WHEEL PLAIN 6.38 6007
1590001
$141,74 Unit Price incl. VAT
20
BEARING [1 PER]
3514445
1590001
$141,74 Unit Price incl. VAT
20
RING RETAINING [1 PER]
7710486
Not Available
21
ROD SHOCK BLACK
1542330329
$167,99 Unit Price incl. VAT
22
BUSHING
5135043
$11,54 Unit Price incl. VAT
23
BUSHING
5134601
$27,29 Unit Price incl. VAT
24
SCR-HXFL-5/16-18X0.25 GR5 ZY3
7518340
$13,64 Unit Price incl. VAT
25
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
