1
Engine displacement
330
2
Year
2005
3
Trim
ATP 330 4X4 QUAD - A05JD32EA
4
Parts Catalog
BOX FRAME
5
Parts Diagram
Parts Catalog
FRAME EXTENSION MAIN FRAME
by
REAR TURN LAMPS / REGISTRATION PLATE

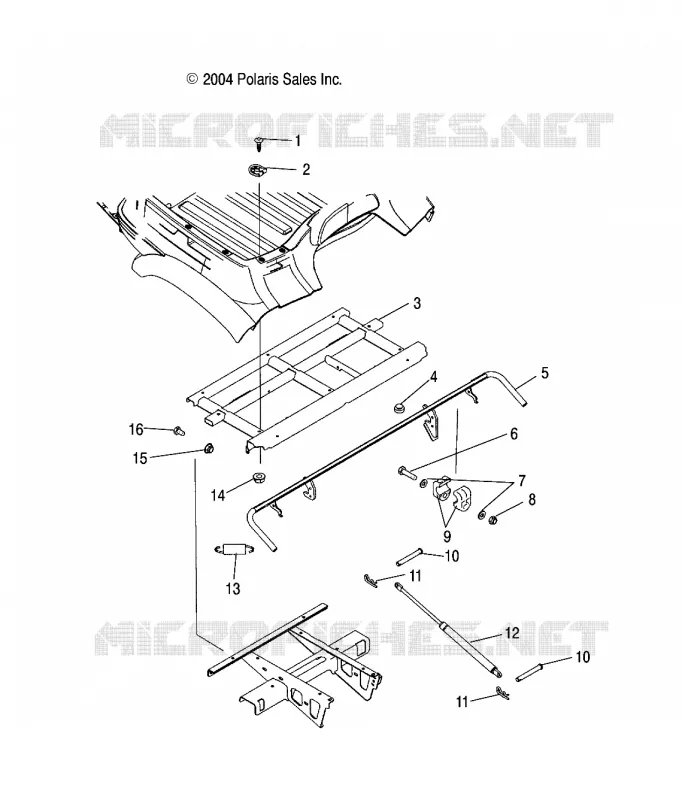

BOX FRAME
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
2
Ring Tie Down
7081101
$14,69 Unit Price incl. VAT
3
Frame Box (If built after 9/02/03)
1014655067
Not Available
4
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
5
Latch Box Rear
1014146067
Not Available
6
Bolt Hex
7515319
$9,44 Unit Price incl. VAT
7
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
8
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
9
BUSHING-BOX LATCH
5434226
$7,34 Unit Price incl. VAT
10
PIN-CLEVIS 5/16X1 1/2
7661163
$7,34 Unit Price incl. VAT
11
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
12
Shock Dump Box
7042268
$115,49 Unit Price incl. VAT
13
SPRING-EXHAUST
7041687
$12,59 Unit Price incl. VAT
14
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
15
NUT
7542449
$7,34 Unit Price incl. VAT
16
SCREW
7512492
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
