1
Engine displacement
1200
2
Year
2002
3
Trim
INT'L VIRAGE TX - W025199I
4
Parts Catalog
SHROUD
5

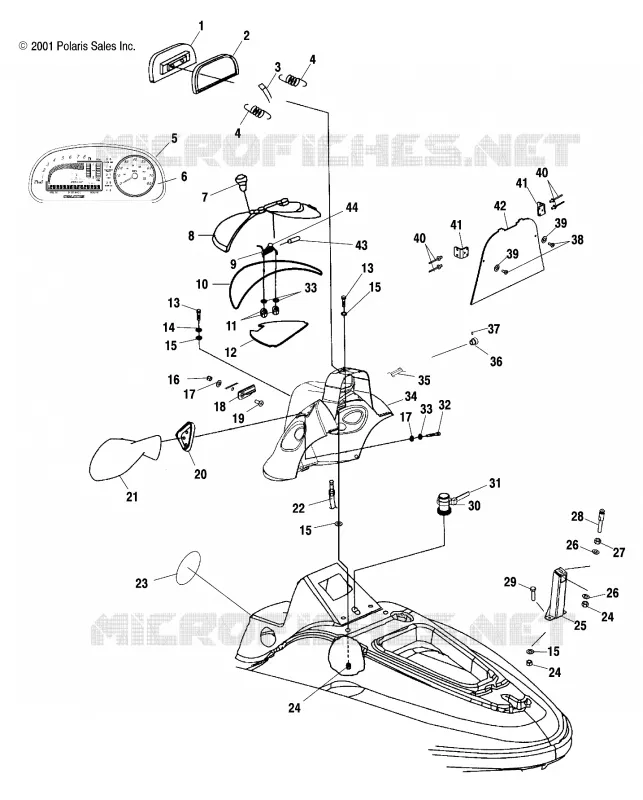

Parts Diagram
Parts Catalog
STARTING MOTOR
by
HULL BODY
SHROUD
14
15
15
15
15
16
17
17
18
19
20
20
21
21
22
23
24
24
24
25
26
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
39
40
40
41
41
42
43
44
14
15
15
15
15
16
17
17
18
19
20
20
21
21
22
23
24
24
24
25
26
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
39
40
40
41
41
42
43
44
1
GAUGE-MFI VIRAGE RVS RPM LIMIT
3280365
Not Available
2
GASKET-MFI
5411738
$8,39 Unit Price incl. VAT
3
PITOT LINE 90DEG FORMED 190CM Substituted by 8450070-235
8450070190
Not Available
4
SPRING MOUNTING MFI
7041931
$2,93 Unit Price incl. VAT
5
MFI BUTTON REPLACEMENT KIT
2201593
$37,16 Unit Price incl. VAT
6
BEZEL-MFI OVERLAY
3280342
$38,42 Unit Price incl. VAT
7
LATCH ASM CONSOLE
2653011
$46,40 Unit Price incl. VAT
8
Lid Console
54345641093
Not Available
9
SPRING-TORTION CONSOLE 070.SS [Item NotAvailable]
7042007
Not Available
10
Seal
5521596
Not Available
11
NUT 6 MM. S.S.(10)
7546705
$9,44 Unit Price incl. VAT
12
PAD-CONSOLE
5812235
Not Available
13
SCREW(10)
7517668
$3,35 Unit Price incl. VAT
14
WASHER LOCK SS.
7556055
Not Available
15
WASHER FLAT S.S.(10)
7555831
Not Available
16
NUT NYLOCK SS.(10)
7546704
$2,82 Unit Price incl. VAT
17
WASHER-6.4MMX18X1.6 SS
7556094
$9,44 Unit Price incl. VAT
18
HOOK-CONSOLE LATCH
5245455
Not Available
19
SCREW (10)
7517669
Not Available
20
GASKET-MIRROR LH
5411557
$7,97 Unit Price incl. VAT
20
GASKET-MIRROR RH
5411558
$7,97 Unit Price incl. VAT
21
MIRROR LH BLACK ASM. (LH)
2631972070
$192,14 Unit Price incl. VAT
21
MIRROR RH BLACK ASM. (RH)
2631973070
$171,66 Unit Price incl. VAT
22
Cable Choke
7081055
$125,99 Unit Price incl. VAT
23
GROMMET-ACCESS 5.0 HOLE
5411674
$15,95 Unit Price incl. VAT
24
NUT-HEX M8X1.25 NYLOCK-SS [S99CR]
7546804
$2,09 Unit Price incl. VAT
25
Post Door Latch
1821213
Not Available
26
WASHER FLAT S.S. (10)
7555835
$0,93 Unit Price incl. VAT
27
NUT-M8X1.25 SS(10)
7547187
$1,56 Unit Price incl. VAT
28
PIN-HOOD LATCH
5132781
$39,78 Unit Price incl. VAT
29
SCREW SS. Substituted by 7517339
7517539
Not Available
30
GROMMET-DECK WIRE HARNESS
5411664
Not Available
31
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
32
SCREW S.S.(10)
7516805
$1,14 Unit Price incl. VAT
33
WASHER LOCK(10)
7552613
Not Available
34
Shroud Steering
54345601093
$423,14 Unit Price incl. VAT
35
BUMPER DOOR/SHROUD
5812076
$15,95 Unit Price incl. VAT
36
Knob
7081037
$14,58 Unit Price incl. VAT
37
SCREW
2080005
$0,93 Unit Price incl. VAT
38
SCREW(10)
7511873
Not Available
39
WASHER FLAT S.S.(10)
7555837
$2,09 Unit Price incl. VAT
40
RIVET-POP
7621220
$4,19 Unit Price incl. VAT
41
BRKT-SHROUD COVER MFI
5245451
Not Available
42
COVER-SHROUD FRNT
5812284
$38,42 Unit Price incl. VAT
43
PIN-HINGE CONSOLE
5333698
Not Available
44
HINGE-CONSOLE 3/16 PIN
5433384
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
