1
Engine displacement
0
2
Year
1994
3
Trim
LITE DELUXE - 0943431
4
Parts Catalog

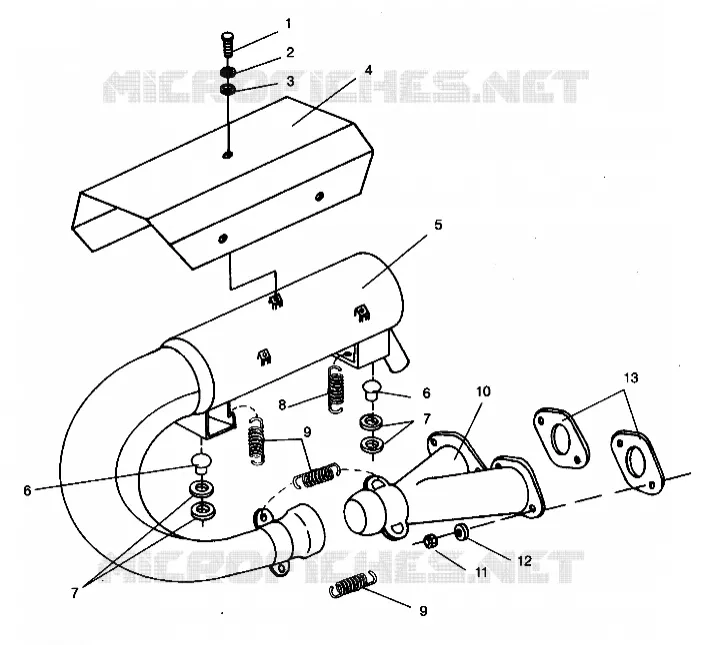

EXHAUST SYSTEM LITE 0943433 AND LITE DELUXE 0943431 (4924992499027A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING STARLITE 0943427 (4924992499026A)
by
EXHAUST SYSTEM STARLITE 0943427 (4924992499028A)
EXHAUST SYSTEM LITE 0943433 AND LITE DELUXE 0943431 (4924992499027A)
1
BOLT(10)
7515354
$7,34 Unit Price incl. VAT
2
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
3
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
4
SHIELD MUFFLER
5222704
Not Available
5
MUFFLER (LITE GT)
1260578029
Not Available
6
DAMPNER VIB.
5410467
$16,79 Unit Price incl. VAT
7
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
8
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
9
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
10
MANIFOLD
1260497029
Not Available
11
NUT(10)
3080285
Not Available
12
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
13
GASKET EXHAUST
3083770
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
