1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 EPS EU S.R.
4
Parts Catalog
BRAKES, FRONT BRAKE LEVER AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE REAR CALIPER
by
CHASSIS, FRAME

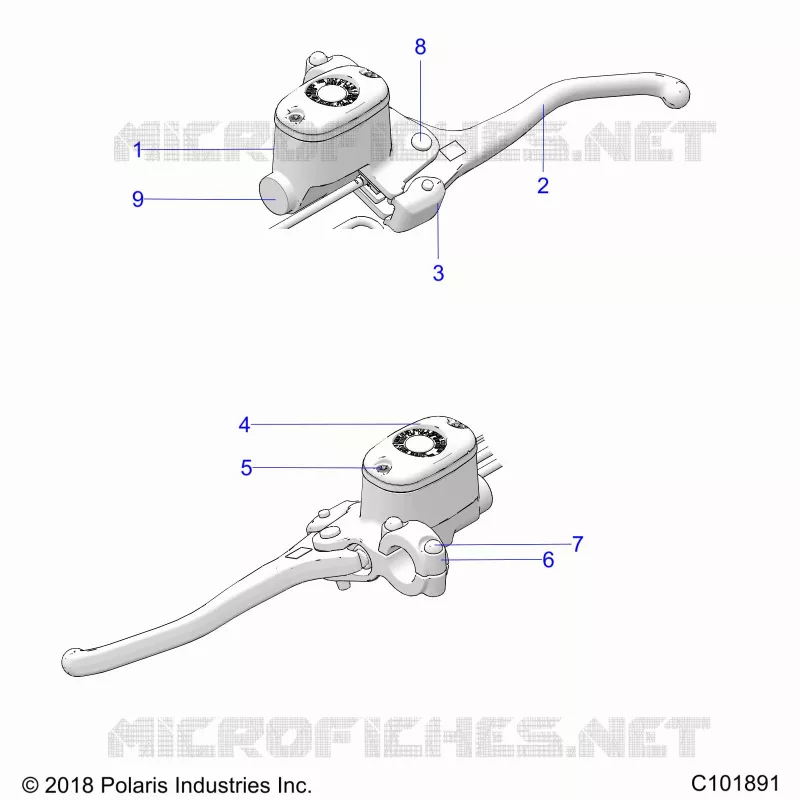

BRAKES, FRONT BRAKE LEVER AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
1
ASM-M/CYL HB 11/16# B/U-RING [INCL. ALL]
2010440
$325,49 Unit Price incl. VAT
2
KIT LEVER PARK BRAKE LEVER [INCL. BRAKE LEVER PARK LEVER PINS SPRING SNAP RINGS]
2203053
$173,24 Unit Price incl. VAT
3
KIT PARK LEVER ASM.
2203054
$68,24 Unit Price incl. VAT
4
KIT M/C COVER
2203055
$141,74 Unit Price incl. VAT
5
Kit Screw Master Cylinder Cover [INCL. 2 SCREWS]
2203056
$52,49 Unit Price incl. VAT
6
K-CLAMP
2203093
$94,49 Unit Price incl. VAT
7
Kit Screws and Clamp [INCL. 2 SCREWS]
2203058
$68,24 Unit Price incl. VAT
8
KIT PIN PIVOT AND RING SNAP [INCL. BRAKE LEVER PIN SNAP RING]
2203059
$73,49 Unit Price incl. VAT
9
K-PISTON & RES. BOSY 11/16# HB [INCL. PISTON SEALS SPRING BODY]
2206551
$262,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
