1
Engine displacement
1000
2
Year
2017
3
Trim
RANGER CREW XP 1000 EPS ALL OPTIONS
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNAL
5

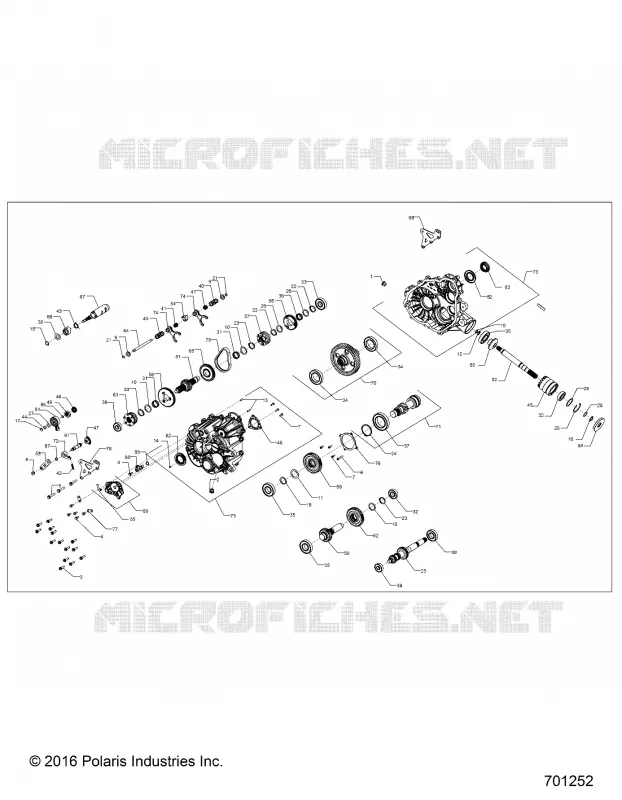

Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNAL
by
DRIVE TRAIN, MAIN GEARCASE MOUNTING
DRIVE TRAIN, MAIN GEARCASE INTERNAL
-
1
2
3
3
4
4
5
6
7
7
8
9
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
23
23
24
25
26
26
27
28
29
30
31
31
32
32
33
34
34
35
35
35
36
37
38
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
74
75
76
77
78
79
80
81
82
82
83
84
85
86
87
-
ASM-GEARCASE 1000 C.MUD RGR [VM99AM/BM]
1333725
$4 824,74 Unit Price incl. VAT
1
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE M8 X 50
3235207
$19,94 Unit Price incl. VAT
6
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
7
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
8
NUT LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$14,69 Unit Price incl. VAT
9
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
10
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
11
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
12
WASHER-17.3X25X1.5(115290)
3235213
$31,49 Unit Price incl. VAT
13
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
14
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
17
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
18
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
19
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
20
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
21
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
22
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
23
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
24
RING-RETAIN VSH-237(130298)
3235216
$19,94 Unit Price incl. VAT
25
SHAFT INPUT 42T/20T/25T
3235764
$299,24 Unit Price incl. VAT
26
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
27
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
28
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
29
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
30
SPACER 19.4 X 34.0 X 2.0
3235883
$41,99 Unit Price incl. VAT
31
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
32
BEARING
3233019
$54,59 Unit Price incl. VAT
33
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
34
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
35
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
36
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
37
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
38
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
39
BEARING BALL 6206RSH2 STD 30 X 62 X 16
3235496
$54,59 Unit Price incl. VAT
40
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
41
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
42
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
43
SPRING TORSION
3235885
$36,74 Unit Price incl. VAT
44
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
45
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
46
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
47
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
48
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
49
STAR DETENT
3235982
$68,24 Unit Price incl. VAT
50
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
51
SHAFT-REVERSE 27T(285878)
3235380
$456,74 Unit Price incl. VAT
52
SHAFT-FRONT OUTPUT(285914)
3235394
$246,74 Unit Price incl. VAT
53
SWITCH ROTARY 2 PIN RESISTIVE
3235474
$62,99 Unit Price incl. VAT
54
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
55
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
56
GEAR-LOW 67T(352856)
3235232
$230,99 Unit Price incl. VAT
57
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
58
GEAR-53T(352858)
3235234
$157,49 Unit Price incl. VAT
59
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
60
GEAR-13T FRONT OUTPUT(352957)
3235237
$246,74 Unit Price incl. VAT
61
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
62
GEAR 46T STAGE 2
3235381
$246,74 Unit Price incl. VAT
63
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
64
RAIL-SHIFT SHAFT(353622)
3235542
$52,49 Unit Price incl. VAT
65
SPROCKET 48T 6-FACE
3235762
$204,74 Unit Price incl. VAT
66
CAM PARK
3235983
$283,49 Unit Price incl. VAT
67
DRUM SHIFT MACH
3235984
$519,74 Unit Price incl. VAT
68
WELDMENT REAR MOUNT BRACKET63 [INCL. ALL HARDWARE]
3235399
$89,24 Unit Price incl. VAT
69
SUBASSEMBLY SECTOR COVER
3235713
$209,99 Unit Price incl. VAT
70
SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)
3235335
$645,74 Unit Price incl. VAT
71
SUBASM. SHAFT
3235336
$703,49 Unit Price incl. VAT
72
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
73
SUBASM. LH CASE [INCL. ALL HARDWARE]
3235491
$1 007,99 Unit Price incl. VAT
74
SUBASSEMBLY SHIFT FORK
3235920
$136,49 Unit Price incl. VAT
75
SUBASSEMBLY RH COVER
3235995
$818,99 Unit Price incl. VAT
76
COVER-BEARING CNTR DR.
3235241
$89,24 Unit Price incl. VAT
77
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
78
BRACKET MOUNT REAR
3235398
$125,99 Unit Price incl. VAT
79
CHAIN SILENT TYPE 103 .25P X .48W X 58L
3235633
$493,49 Unit Price incl. VAT
80
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
81
SWITCH ROTARY 2 PIN RESISTIVE
7662299
$209,99 Unit Price incl. VAT
82
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
83
SEAL TRIPLE LIP VITON HELIX 30 X 47
3235495
$73,49 Unit Price incl. VAT
84
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
85
O-RING
3234302
$13,64 Unit Price incl. VAT
86
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
87
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RANGER CREW XP 1000 EPS ALL OPTIONS

DECALS

DECALS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DOORS, FULL

DOORS, FULL

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

FLOOR, REAR

FLOOR, REAR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

HOOD AND FRONT FACSIA

HOOD AND FRONT FACSIA

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

SEAT

SEAT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

SLIDER, DRIVERS SEAT

SLIDER, DRIVERS SEAT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CHASSIS, CAB FRAME

CHASSIS, CAB FRAME

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CHASSIS, FRONT BUMPER

CHASSIS, FRONT BUMPER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DASHBOARD

DASHBOARD

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DOORSS

DOORSS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

FUEL TANK

FUEL TANK

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

AIR CONDITIONING ASSEMBLY

AIR CONDITIONING ASSEMBLY

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

SIDE NETS

SIDE NETS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

STORAGE

STORAGE

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

BRAKES, REAR CALIPER

BRAKES, REAR CALIPER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CHASSIS, FRAME

CHASSIS, FRAME

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, REAR DRIVE SHAFT (TO 7/3/2017)

DRIVE TRAIN, REAR DRIVE SHAFT (TO 7/3/2017)

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, HARNESS

ELECTRICAL, HARNESS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, IGNITION

ELECTRICAL, IGNITION

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

COOLING, WATERPUMP

COOLING, WATERPUMP

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

EXHAUST

EXHAUST

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, INTAKE AND THROTTLE BODY

ENGINE, INTAKE AND THROTTLE BODY

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, THROTTLE PEDAL

ENGINE, THROTTLE PEDAL

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

REFERENCES, TOOL KIT AND OWNERS MANUALS

REFERENCES, TOOL KIT AND OWNERS MANUALS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

REAR SUSPENSION STABILIZER BAR

REAR SUSPENSION STABILIZER BAR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

WHEELS, FRONT

WHEELS, FRONT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

BED BOX

BED BOX

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

BODY, BOX MOUNTING AND LATCH

BODY, BOX MOUNTING AND LATCH

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

TAILGATE

TAILGATE

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CENTER MIRROR

CENTER MIRROR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

AIR CONDITIONING DUCTING

AIR CONDITIONING DUCTING

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

AIR CONDITIONING ROUTINGS

AIR CONDITIONING ROUTINGS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ROOF AND CAB

ROOF AND CAB

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

BODY, SEALING FOAM

BODY, SEALING FOAM

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

SEAT

SEAT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, CLUTCH COVER

DRIVE TRAIN, CLUTCH COVER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, CLUTCH COVER

DRIVE TRAIN, CLUTCH COVER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, HARNESS

ELECTRICAL, HARNESS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, HARNESS

ELECTRICAL, HARNESS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, CRANKSHAFT

ENGINE, CRANKSHAFT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CYLINDER AND PISTON

CYLINDER AND PISTON

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, CYLINDER HEAD AND VALVES

ENGINE, CYLINDER HEAD AND VALVES

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, DIPSTICK AND OIL FILTER

ENGINE, DIPSTICK AND OIL FILTER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, REAR DRIVE SHAFT (TO 7/17/2017)

DRIVE TRAIN, REAR DRIVE SHAFT (TO 7/17/2017)

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, HEADLIGHT AND TAILLIGHT

ELECTRICAL, HEADLIGHT AND TAILLIGHT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, SENSORS AND MODULES

ELECTRICAL, SENSORS AND MODULES

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CAM CHAIN AND TENSIONER

CAM CHAIN AND TENSIONER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

COOLING, THERMOSTAT AND BYPASS

COOLING, THERMOSTAT AND BYPASS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CRANKCASE

CRANKCASE

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, ENGINE MOUNTING

ENGINE, ENGINE MOUNTING

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

STEERING (EPS)

STEERING (EPS)

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

WHEELS, FRONT

WHEELS, FRONT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

WHEELS, FRONT

WHEELS, FRONT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, REAR DRIVE SHAFT (FROM 7/17/2017)

DRIVE TRAIN, REAR DRIVE SHAFT (FROM 7/17/2017)

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

STEERING (NON EPS)

STEERING (NON EPS)

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

SUSPENSION, FRONT SHOCK

SUSPENSION, FRONT SHOCK

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

REAR SUSPENSION

REAR SUSPENSION

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

SUSPENSION, REAR SHOCK

SUSPENSION, REAR SHOCK

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

EXHAUST

EXHAUST

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CHASSIS, FRONT BUMPER

CHASSIS, FRONT BUMPER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, REAR DRIVE SHAFT (FROM 7/3/2017)

DRIVE TRAIN, REAR DRIVE SHAFT (FROM 7/3/2017)

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DOORS, FULL, MOUNTING

DOORS, FULL, MOUNTING

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DOORS, REAR, FULL

DOORS, REAR, FULL

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DOORS, REAR, FULL MOUNTING

DOORS, REAR, FULL MOUNTING

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

FLOOR, FRONT

FLOOR, FRONT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

BARKE CALIPER MOUNTING

BARKE CALIPER MOUNTING

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

BRAKES, LINES AND MASTER CYLINDER

BRAKES, LINES AND MASTER CYLINDER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, MAIN GEARCASE INTERNAL

DRIVE TRAIN, MAIN GEARCASE INTERNAL

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, MAIN GEARCASE INTERNAL

DRIVE TRAIN, MAIN GEARCASE INTERNAL

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ELECTRICAL, THROTTLE PEDAL

ELECTRICAL, THROTTLE PEDAL

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, ALTERNATOR COVER HVAC

ENGINE, ALTERNATOR COVER HVAC

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, ALTERNATOR AND COMPRESSOR

ENGINE, ALTERNATOR AND COMPRESSOR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, MAG COVER MOUNT

ENGINE, MAG COVER MOUNT

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

OIL PUMP

OIL PUMP

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

ENGINE, STATOR AND COVER

ENGINE, STATOR AND COVER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

WHEELS, REAR

WHEELS, REAR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

WHEELS, REAR

WHEELS, REAR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

WHEELS, REAR

WHEELS, REAR

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

WINCH

WINCH

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

REAR BODYWORK BUMPER

REAR BODYWORK BUMPER

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

CARGO BOX

CARGO BOX

for RANGER CREW XP 1000 EPS ALL OPTIONS from 2017

POLARIS RANGER CREW XP 1000 EPS ALL OPTIONS 2017

RANGER CREW XP 1000 EPS ALL OPTIONS

RANGER CREW XP 1000 EPS ALL OPTIONS

Model : RANGER XP CREW 1000 EPS ALL OPTIONS

Engine capacity : 1000

Year : 2017

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
