1
Engine displacement
700
2
Year
1996
3
Trim
INTL SL 700 - I964066
4
Parts Catalog
CRANKSHAFT PISTON SL 700 B964066 AND INTL. SL 700 I964066 (4935633563C004)
5
Parts Diagram
Parts Catalog
CYLINDER MANIFOLD SL 700 B964066 AND INTL. SL 700 I964066 (4935633563C003)
by
DRAIN SL 700 B964066 AND INTL. SL 700 I964066 (4935633563C010)

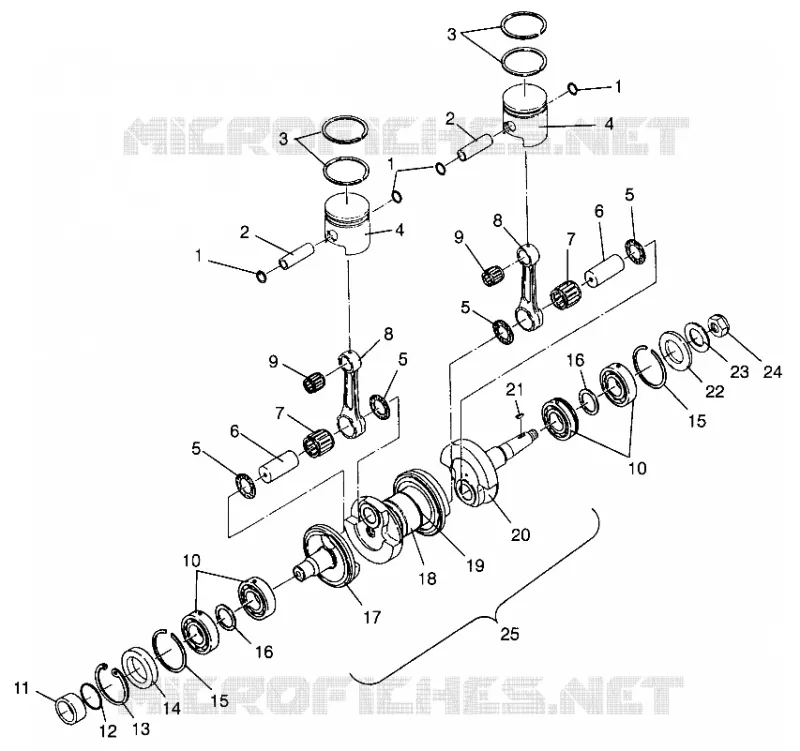

CRANKSHAFT PISTON SL 700 B964066 AND INTL. SL 700 I964066 (4935633563C004)
16
16
17
18
19
20
21
22
23
23
25
16
16
17
18
19
20
21
22
23
23
25
1
CIRCLIP PISTON 20MM. (10)
3022950
Not Available
2
PIN PISTON
3022953
Not Available
3
KIT PISTONRINGS(.50 O/S)81MM. Substituted by 2200904
2200678
Not Available
3
KIT PISTONRINGS(.25 O/S)81MM. Substituted by 2200903
2200679
Not Available
3
KIT PISTONRINGS STD 81MM. Substituted by 2200902 (2 Rings)
2200671
Not Available
4
KIT PISTON ASM STD PWC Substituted by 2200921 (Incl. 1-3)
2200883
Not Available
4
KIT PISTON ASM .25 O/S PWC Substituted by 2200920 (Incl. 1-3)
2200884
Not Available
4
KIT PISTON ASM .50 O/S PWC Substituted by 2200919 (Incl. 1-3)
2200885
$290,84 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
KIT CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5-7)
2200674
Not Available
9
BEARING CONNECT.ROD
3584001
Not Available
10
BEARING DEEP GROOVE Substituted by 3585503
3585501
3585503
$54,59 Unit Price incl. VAT
11
COLLAR CRANKSHAFT
5131195
Not Available
12
O-RING
5410613
$3,66 Unit Price incl. VAT
13
RING RETAINING(10)
7710435
Not Available
14
SEAL Substituted by 5411524
5410913
Not Available
15
RING RETAINING (10)
7710441
Not Available
16
BUSHING(10)
7555905
$6,29 Unit Price incl. VAT
17
CRANKWEB PTO BIGBORE
5131083
$198,96 Unit Price incl. VAT
18
CRANKWEB CTR BIGBORE
5131084
$198,96 Unit Price incl. VAT
19
LABYRINTH
5131086
Not Available
20
CRANKWEB MAG.
5131085
Not Available
21
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
22
SEAL (Magneto)
3610044
$41,99 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
CRANKSHAFT ASM 2 CYL. Substituted by 2201243 (Incl. 5-8 17-20)
1201558
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
