1
Engine displacement
650
2
Year
1993
3
Trim
SL 650 - B934058
4
Parts Catalog
CARBURETOR SL 650 / B934058 (4924732473025A)
5
Parts Diagram
Parts Catalog
OIL PUMP ASSEMBLY SL 650 / B934058 (4924732473024A)
by
MAGNETO ASSEMBLY SL 650 / B934058 (4924732473027A)

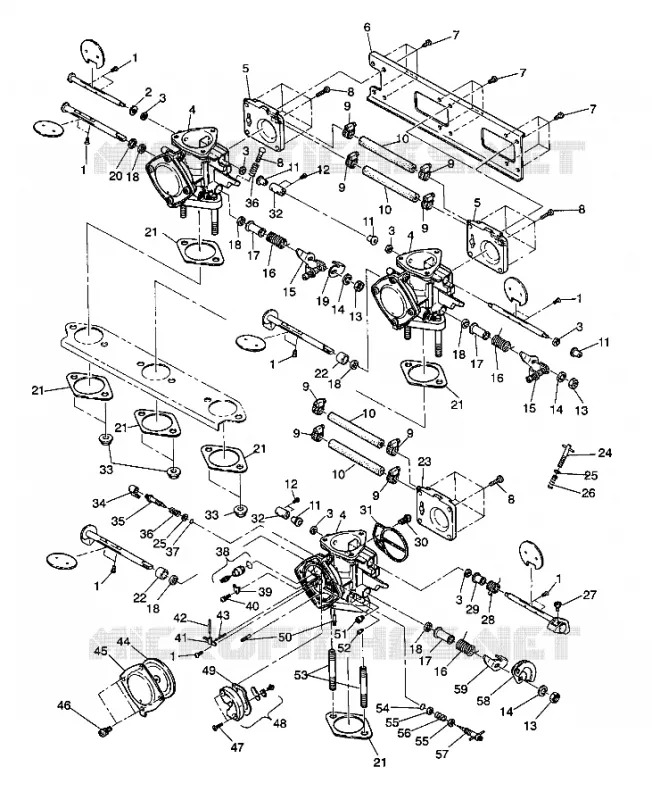

CARBURETOR SL 650 / B934058 (4924732473025A)
1
1
1
1
1
1
1
2
3
3
3
3
3
3
4
4
5
5
6
6
7
7
8
8
8
8
8
9
9
9
9
9
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
13
14
14
14
15
15
16
16
16
17
17
17
18
18
18
18
18
18
19
20
21
21
21
21
21
21
22
22
23
24
25
25
26
27
28
29
30
31
32
32
33
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
55
56
57
58
59
1
SCREW Substituted by 3140065
3140005
Not Available
2
PACKING
3140069
Not Available
3
SEAL
3140022
$7,97 Unit Price incl. VAT
4
CARBURETOR ASM (#93SL650)
3140059
$1 115,09 Unit Price incl. VAT
5
COVER CARB.
3140033
Not Available
6
PLATE
3140008
$132,29 Unit Price incl. VAT
7
SCREW
3140009
Not Available
8
SCREW
3140027
$3,14 Unit Price incl. VAT
9
CLAMP
3140028
$15,42 Unit Price incl. VAT
10
HOSE
3140029
Not Available
11
RING
3140025
$2,72 Unit Price incl. VAT
12
SCREW(10)
3140065
Not Available
13
NUT
3140011
Not Available
14
WASHER SPRING
3140012
Not Available
15
LEVER ASM THROTTLE
3140031
Not Available
16
SPRING
3140003
Not Available
17
RING
3140002
Not Available
18
SEAL
3140001
Not Available
19
LEVER THROTTLE
3140070
$7,97 Unit Price incl. VAT
20
PACKING
3140030
Not Available
21
GASKET CARBURETOR (10) (Carburetor)
3240128
Not Available
22
RING
3140032
Not Available
23
COVER CARB.
3140007
Not Available
24
SCREW ASM.
3140015
$28,23 Unit Price incl. VAT
25
WASHER
3140014
Not Available
26
SPRING
3140013
Not Available
27
SCREW
3140019
Not Available
28
SPRING
3140020
$7,97 Unit Price incl. VAT
29
RING
3140021
Not Available
30
FILTER
3140039
$11,54 Unit Price incl. VAT
31
O-RING (GASKET)
3140006
Not Available
32
PLATE
3140023
Not Available
33
NUT FLANGE (10)
3240058
Not Available
34
CAP
3140047
$6,71 Unit Price incl. VAT
35
ADJUSTER
3140048
Not Available
36
SPRING
3140054
$2,93 Unit Price incl. VAT
37
RING
3140049
$17,84 Unit Price incl. VAT
38
VALVE ASM NEEDLE
3140067
Not Available
39
PLATE
3140037
Not Available
40
SCREW (10)
3140038
Not Available
41
ARM
3140041
Not Available
42
PIN
3140036
Not Available
43
SPRING (MIKUNI#730-03032)
3140068
Not Available
44
DIAPHRAGM ASM.
3140044
Not Available
45
COVER
3140045
$3,98 Unit Price incl. VAT
46
SCREW (10)
3140046
$3,35 Unit Price incl. VAT
47
SCREW (10)
3140034
Not Available
48
BODY ASM.
3140066
Not Available
49
GASKET
3140043
Not Available
50
SCREW (1)
3140018
Not Available
51
JET MAIN #77.5 (#77.5)
3140061
$3,98 Unit Price incl. VAT
52
JET PILOT #77.5 (#72.5)
3140064
Not Available
53
BOLT
3140026
$30,75 Unit Price incl. VAT
54
O-RING
3140053
$10,49 Unit Price incl. VAT
55
WASHER
3140052
Not Available
56
SPRING
3140051
$2,93 Unit Price incl. VAT
57
ADJUSTER
3140050
Not Available
58
LEVER ASM THROTTLE
3140010
$22,46 Unit Price incl. VAT
59
LEVER THROTTLE
3140004
$19,83 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
