ENGINE, EXHAUST VALVE ASM. AND ACTUATOR FOR PATRIOT 9R RMK KHAOS SLASH 155 FROM 2023

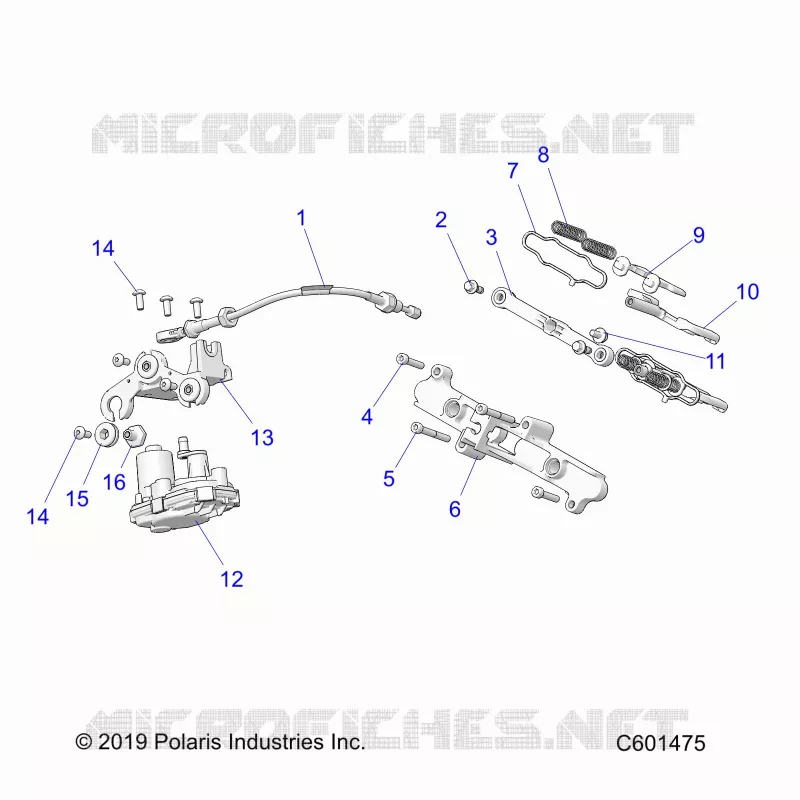

ENGINE, EXHAUST VALVE ASM. AND ACTUATOR

-

K-EXHAUST VALVE ASM 900 [INCL. 1-4-6-11]

2209830

$818,99 Unit Price incl. VAT

1

CABLE-EV VALVE PUSH/PULL

7082291

$115,49 Unit Price incl. VAT

2

SCR-M6X1.0X16.0 HX/FL-Y/D

7516820

$10,49 Unit Price incl. VAT

3

TIEBAR-EXH VALVE MACH

5143539

$115,49 Unit Price incl. VAT

4

SCR-SH M6X1.0X30 8.8 ZPY D204

7519058

$7,34 Unit Price incl. VAT

5

SCR-HXSOC M6X1.00X50 8.8 ZY3

7520733

$4,19 Unit Price incl. VAT

6

DOWEL HOLLOW M8X8

7661977

$15,74 Unit Price incl. VAT

6

K-EV BUSHING/SEAL 650/850 [INCL. 2 BUSHINGS AND SEALS]

2208930

$47,24 Unit Price incl. VAT

6

ASM-EV BASE [PART OF 2207894]

1208701

$157,49 Unit Price incl. VAT

7

SEAL-BASE CYL EXH VALVE

5416132

$15,74 Unit Price incl. VAT

8

SPRING EV UPPER

7044014

$19,94 Unit Price incl. VAT

9

VALVE-GUILLOTINE EXH UPPER MCH

5144090

$115,49 Unit Price incl. VAT

10

VALVE-GUILLOTINE EXH LOWER MCH

5144089

$136,49 Unit Price incl. VAT

11

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$7,34 Unit Price incl. VAT

12

ACTUATOR EV-NON SMART

4018736

$719,24 Unit Price incl. VAT

13

MOUNT ACTUATOR EV

5142973

$73,49 Unit Price incl. VAT

14

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$7,34 Unit Price incl. VAT

15

GROMMET ISOLATION

5415111

$20,99 Unit Price incl. VAT

16

SPACER ISOLATION BUSHING

5139301

$13,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
