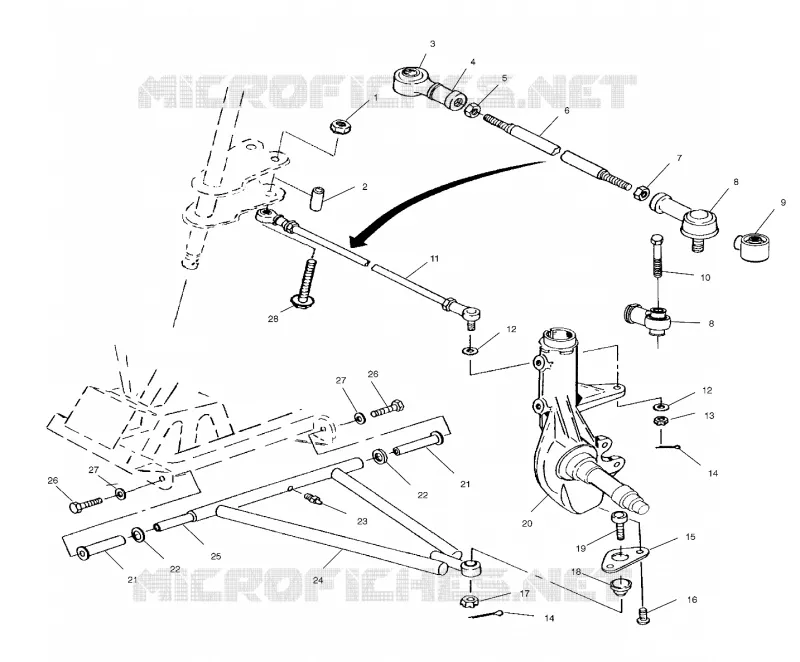

WISHBONES FOR MAGNUM 325 2X4 - A00CB32CA FROM 2000

WISHBONES

1

Nut

7542403

Not Available

2

BUSHING

5333367

$10,70 Unit Price incl. VAT

3

Boot Seal Rod End

5411291

$20,99 Unit Price incl. VAT

4

Rod End

7061034

$115,49 Unit Price incl. VAT

5

NUT-1/2-20 HX JM-Y

7542711

$4,19 Unit Price incl. VAT

6

ROD TIE

5020927

$83,99 Unit Price incl. VAT

7

NUT-1/2-20 LH JAM

7547028

$4,19 Unit Price incl. VAT

8

ROD END LH Substituted by 2201743

7061033

$115,49 Unit Price incl. VAT

8

ROD END [INCL. 1]

7061054

$104,99 Unit Price incl. VAT

9

BOOT SEAL ROD END

5411920

$20,99 Unit Price incl. VAT

10

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909 (If built after 8/16/99)

7517674

$10,49 Unit Price incl. VAT

11

TIE ROD 1/2-20X14.0 ASM. (Incl. 3-8)(If built after 8/16/99)

1820806

$204,74 Unit Price incl. VAT

11

TIEROD ASM 1/2-20X14.00 Substituted by 2201742 (Incl. 3-8)

1820566

$246,74 Unit Price incl. VAT

12

WASHER

7555806

$1,56 Unit Price incl. VAT

12

WASHER-FL 10.7X21.9X2.5-Y

7556099

$3,14 Unit Price incl. VAT

13

NUT CASTLE(10)

7546904

$9,44 Unit Price incl. VAT

14

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

15

BRACKET BALLJOINT

5240717

Not Available

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$2,09 Unit Price incl. VAT

17

NUT-3/8-24 HX CA GR5-Y

7542438

$3,14 Unit Price incl. VAT

18

BOOT RUBBER

5410548

$9,44 Unit Price incl. VAT

19

BALLJOINT HI-ANGLE Substituted by 7080927 (If built before 11/01/00)

7080673

$52,49 Unit Price incl. VAT

20

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

21

BUSHING A ARM LONG

5433066

$9,44 Unit Price incl. VAT

22

BUSHING A-ARM SPACER(10)

5020677

$19,94 Unit Price incl. VAT

23

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

24

A-FRAME KIT RH (1541455) (Incl. 21-23 26 27)

2201602

$225,74 Unit Price incl. VAT

24

A-FRAME KIT LH (1541454) (Incl. 21-23 26 27)

2201601

$225,74 Unit Price incl. VAT

25

SHAFT A-ARM

5020681

$52,49 Unit Price incl. VAT

26

SCREW

7512492

$2,09 Unit Price incl. VAT

27

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

28

BOLT (10)

7517527

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
