1
Engine displacement
500
2
Year
2003
3
Trim
500 XC EDGE F/O
4
Parts Catalog

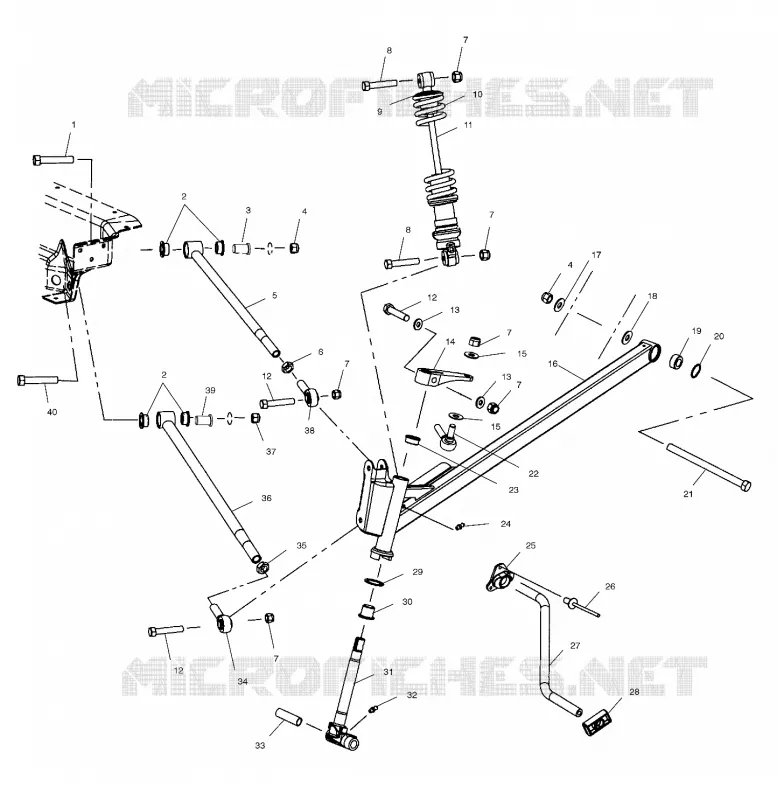

FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
SHOCK (RYDE FX)(IFS)
by
FRONT TORQUE ARM (EDGE)
FRONT SUSPENSION
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
29
30
31
32
33
34
35
36
36
37
38
39
40
1
BOLT
7517980
$12,59 Unit Price incl. VAT
2
BUSHING-RAD ROD PIVOT INNER
5434036
Not Available
3
BUSHING-SHLDR .443X.750X1.215
5132779
$15,74 Unit Price incl. VAT
4
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
5
WELD-RADIUS ROD UPPER YELLOW (X)
1820679216
Not Available
5
RADIUS ROD UPPER BLK
1820679067
Not Available
6
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
7
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
8
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
9
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
10
SPRING-COMP 68/160# 11.5 BLACK
7041950067
Not Available
11
SHOCK-IFS IFP 11X16.25 ALUM AR
7041976
Not Available
12
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
13
Washer .105
7555832
$4,19 Unit Price incl. VAT
14
ARM-STEERING MACHINED EDGE
5132728
$135,44 Unit Price incl. VAT
15
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
16
ASM-TRAILING ARM SVC RH RED (Incl. 20 21)
1821166293
Not Available
16
Asm. Trailing Arm Yellow RH [Incl. 19 20]
1821166216
Not Available
16
Asm. Trailing Arm Cloud Silver LH [Incl. 20 21]
1821165385
Not Available
16
ASM-TRAILING ARM SVC LH RED (Incl. 20 21)
1821165293
Not Available
16
Asm. Trailing Arm Cloud Silver RH [Incl. 20 21]
1821166385
Not Available
16
Asm. Trailing Arm Yellow LH [Incl. 19 20]
1821165216
$519,74 Unit Price incl. VAT
17
WASHER FLAT
7555820
$7,34 Unit Price incl. VAT
18
CUP TRAILING ARM MNT
5132364
$36,74 Unit Price incl. VAT
19
BEARING-SPHERICAL 7/16 PLASTIC
7061042
$54,59 Unit Price incl. VAT
20
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
21
BOLT
7512099
$36,74 Unit Price incl. VAT
22
ROD END-3/8 PL 75° 1.00 RH
7061057
$99,74 Unit Price incl. VAT
23
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
24
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
25
BUSHING-TORSION BAR
5433234
$40,94 Unit Price incl. VAT
26
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
27
BAR TRSN 1/2 42.5 EDGE BLK
5244415067
Not Available
28
Slide Torsion Bar
5434369
Not Available
29
BUSHING
7556509
$3,14 Unit Price incl. VAT
30
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
31
SHAFT-SPINDLE W/STEER STOP BLK
6230225067
$330,74 Unit Price incl. VAT
32
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
33
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
34
ROD END RADIUS 1/2
7061060
$99,74 Unit Price incl. VAT
35
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
36
WELD-RADIUS ROD LOWER YELLOW (X)
1820677216
1820677-067
$157,49 Unit Price incl. VAT
36
RADIUS ROD LOWER BLK
1820677067
$157,49 Unit Price incl. VAT
37
NUT NYLON
7547065
$7,34 Unit Price incl. VAT
38
ROD END RADIUS 7/16
7061061
$99,74 Unit Price incl. VAT
39
BUSHING-SHLDR .505X.750X1.215
5132780
$13,64 Unit Price incl. VAT
40
BOLT(10)
7512684
Not Available
