FRONT SUSPENSION
5

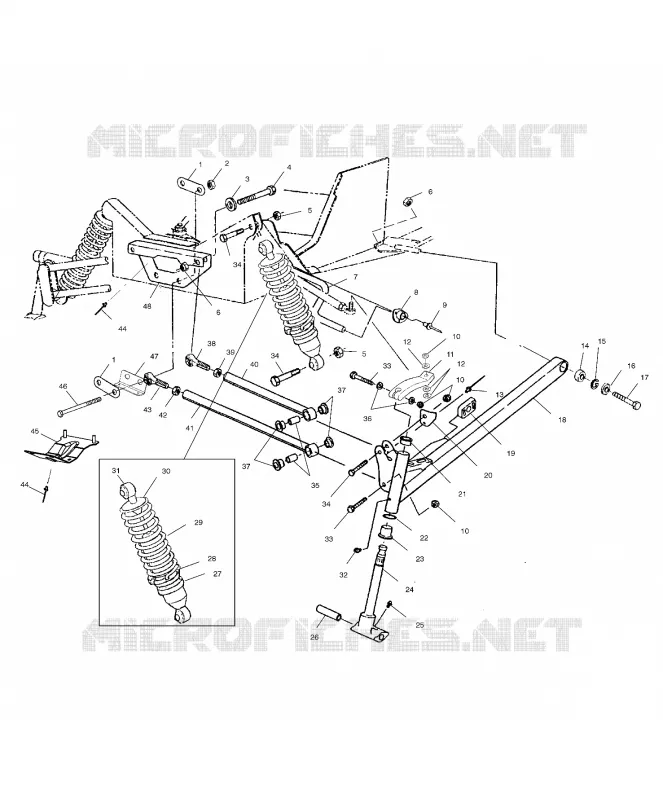

Parts Diagram
Parts Catalog
DECALS
by
REVERSE LINKAGE
FRONT SUSPENSION
1
1
2
3
4
5
5
6
6
7
8
9
10
10
10
11
11
12
12
13
14
15
16
17
18
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
34
35
36
37
37
38
39
40
41
42
43
44
44
45
46
47
48
1
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
2
NUT FLEX (10)
7542703
Not Available
3
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
4
BOLT(10)
7512551
Not Available
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
7
BAR-TORSION 5/8 BLK
5243008067
Not Available
8
BUSHING SWAY BAR
5432038
Not Available
9
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
10
Nut
7542403
Not Available
11
ARM RH STRG ALUM.
5131740
Not Available
11
ARM LH STRG ALUM.
5131739
Not Available
12
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
13
RIVET-3/16-.214-.420
7661130
$2,09 Unit Price incl. VAT
14
BEARING-SPHERICAL 7/16 PLASTIC
7061042
$54,59 Unit Price incl. VAT
15
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
16
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
17
BOLT(10)
7512579
Not Available
18
Arm Trailing RH (Incl. 15)
1820714244
Not Available
18
Arm Trailing LH (Incl. 15)
1820713244
Not Available
19
SLIDE SWAYBAR 5/8
5432561
$52,49 Unit Price incl. VAT
20
Stop Steering LH
5242017244
Not Available
20
Stop Steering RH
5242018244
$21,20 Unit Price incl. VAT
21
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
22
BUSHING
7556509
$3,14 Unit Price incl. VAT
23
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
24
SPINDLE SHAFT HARD.
6230099067
Not Available
25
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
26
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
27
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
28
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
29
SPRING COMP. IFS 100# BLK
7041551067
$115,49 Unit Price incl. VAT
30
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
31
SHOCK-GAS IFS SELECT
7041799
Not Available
32
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
33
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
34
SCREW
7515415
$2,09 Unit Price incl. VAT
35
BUSHING
5010127
$12,59 Unit Price incl. VAT
36
Washer .105
7555832
$4,19 Unit Price incl. VAT
37
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
38
ROD END-RADIUS RH 7/16#
7061049
Not Available
39
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
40
Rod Radius Upper
1822588244
Not Available
41
Rod Radius Lower
1822559244
Not Available
42
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
43
RODEND 1/2 W/LINER 1.05 WIDE Substituted by 7061052
7061027
7061052
$99,74 Unit Price incl. VAT
44
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
BOLT(10)
7512684
Not Available
47
BRKT. RADIUS ROD BOTTOM
5242578
$68,24 Unit Price incl. VAT
48
BRACE BULKHEAD FRONT BLK
1012575067
$38,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
