ENGINE, CRANKSHAFT AND PISTON FOR SPORTSMAN TOURING EPS 550 - A11DX55AF/AZ FROM 2011

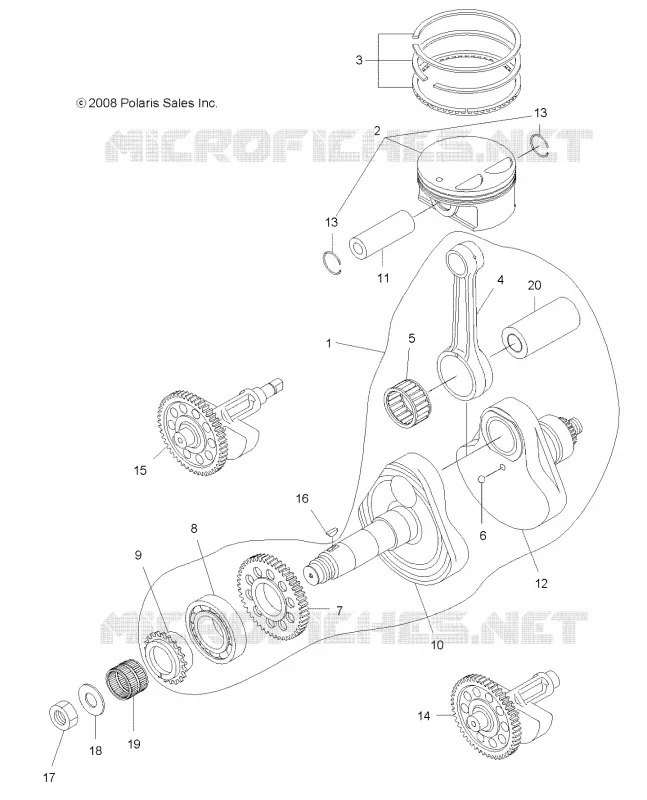

ENGINE, CRANKSHAFT AND PISTON

1

Asm. Crankshaft [Incl. 4-10 12 20]

3090301

$1 606,49 Unit Price incl. VAT

2

Piston Set Std. [Incl. Piston Qty 2 of #13]

3090173

Not Available

2

Piston Set .25 OS [Incl. Piston Qty 2 of #13]

3090174

$242,54 Unit Price incl. VAT

2

Piston Set .50 OS [Incl. Piston Qty 2 of #13]

3090175

$242,54 Unit Price incl. VAT

3

Ring Piston Set .50 OS [Incl. Qty 1 Top Middle Lower Ring]

3090177

Not Available

3

Ring Piston Set Std. [Incl. Qty 1 Top Middle Lower Ring]

3090110

$108,14 Unit Price incl. VAT

3

Ring Piston Set .25 OS [Incl. Qty 1 Top Middle Lower Ring]

3090176

$108,14 Unit Price incl. VAT

4

Rod Connecting

3090172

Not Available

5

Bearing End Large

3085343

$121,79 Unit Price incl. VAT

6

BALL STEEL

3085024

$12,59 Unit Price incl. VAT

7

Gear Balancer Drive

3090211

Not Available

8

BEARING BALL

3080676

$54,59 Unit Price incl. VAT

9

ASM. BAND ADAPTER [INCL. 2]

3090108

Not Available

10

Crankshaft 1

3090302

$596,39 Unit Price incl. VAT

11

Pin Piston

3090109

$89,24 Unit Price incl. VAT

12

Crankshaft 2

3090170

$290,84 Unit Price incl. VAT

13

CLIP(10)

3085534

Not Available

14

Shaft Balancer 1

3090212

Not Available

15

Shaft Balancer 2

3090213

Not Available

16

KEY WOODRUFF

3081543

$26,24 Unit Price incl. VAT

17

Nut

3090113

Not Available

18

Washer

3090114

$14,69 Unit Price incl. VAT

19

Bearing Needle

3087976

$34,64 Unit Price incl. VAT

20

Pin Crank

3090171

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
