1
Engine displacement
800
2
Year
2018
3
Trim
800 SWITCHBACK PRO-S
4
Parts Catalog
ELECTRICAL, SWITCHES, SENSORS AND COMPONENTS
5

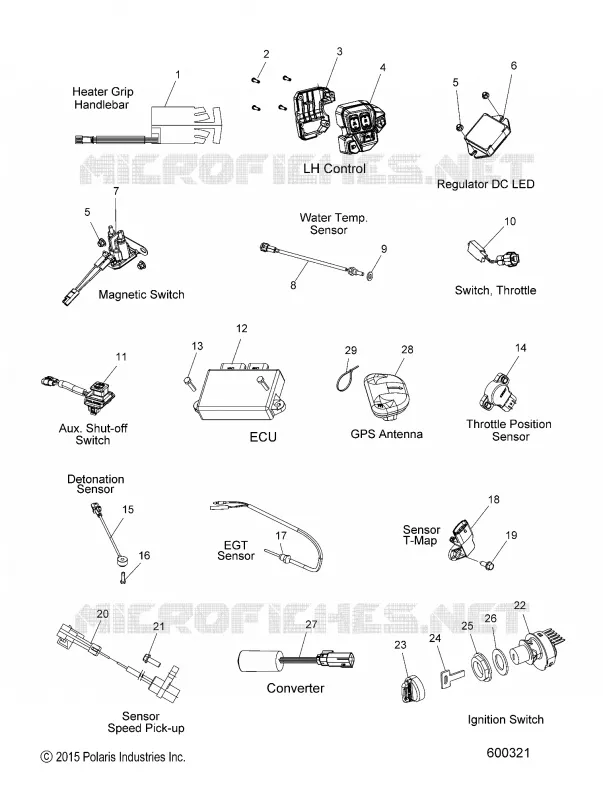

Parts Diagram
Parts Catalog
ELECTRICAL, IGNITION SYSTEM
by
DECALS
ELECTRICAL, SWITCHES, SENSORS AND COMPONENTS
19
20
21
22
23
24
25
26
27
28
29
1
GRIP HEATER LO/MED/HI ALUM. INS RH
2413074
$99,74 Unit Price incl. VAT
1
HEATER-GRIP LO/MED/HI LH
2413778
$89,24 Unit Price incl. VAT
1
HEATER-GRIP LO/MED/HI RH
2413779
$89,24 Unit Price incl. VAT
1
GRIP HEATER LO/MED/HI ALUM. INS LH
2413073
$104,99 Unit Price incl. VAT
2
SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB
7518227
$7,34 Unit Price incl. VAT
3
COVER CONTROL LH
5450542
$27,29 Unit Price incl. VAT
4
ASM. LH CONTROL
2010409
$299,24 Unit Price incl. VAT
5
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
6
REGULATOR DC LED
4015642
$519,74 Unit Price incl. VAT
7
SWITCH MAGNETIC
4015817
$99,74 Unit Price incl. VAT
8
SENSOR WATER TEMP
4012115
$104,99 Unit Price incl. VAT
9
WASHER-18X12X2.5MM-COPPER
7556357
$7,34 Unit Price incl. VAT
10
SWITCH THROTTLE
4015245
4080778
$141,74 Unit Price incl. VAT
11
SWITCH. AUX. SHUTOFF [SWITCH ONLY]
4015321
Not Available
12
ECU CAL KOK 800CH V18SDI
4016143
$1 469,99 Unit Price incl. VAT
13
SCR-M6X1.0X25-HX/FL-Y/D
7516823
$5,76 Unit Price incl. VAT
14
SENSOR THROTTLE POSITION
3131751
$503,99 Unit Price incl. VAT
15
SENSOR-DETONATION BOSCH
2410369
$152,24 Unit Price incl. VAT
16
SCREW-M8X1.25X30 HX/FL-YD
7517262
$10,49 Unit Price incl. VAT
17
SENSOR EGT
4016024
4080929
$414,74 Unit Price incl. VAT
18
SENSOR T-MAP
2410422
2411528
$178,49 Unit Price incl. VAT
19
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
20
SENSOR SPEED PICKUP LG
2412968
4080774
$188,99 Unit Price incl. VAT
21
SCR-1/4-20X.75 TR/TX-M
7518280
$2,09 Unit Price incl. VAT
22
SWITCH KEY 3 POSITION [INCL. 23-25]
4012165
4083589
$202,64 Unit Price incl. VAT
23
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
24
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
25
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
26
WASHER NYLON
7556327
$6,29 Unit Price incl. VAT
27
CONVERTER PWM TO ANALOG
4014356
$188,99 Unit Price incl. VAT
28
GPS-ANTENNA
4014811
$692,99 Unit Price incl. VAT
29
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
