1
Engine displacement
600
2
Year
1998
3
Trim
EURO 600 RMK - E980958
4
Parts Catalog
CARBURETOR 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C010)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C009)
by
OIL PUMP 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C011)

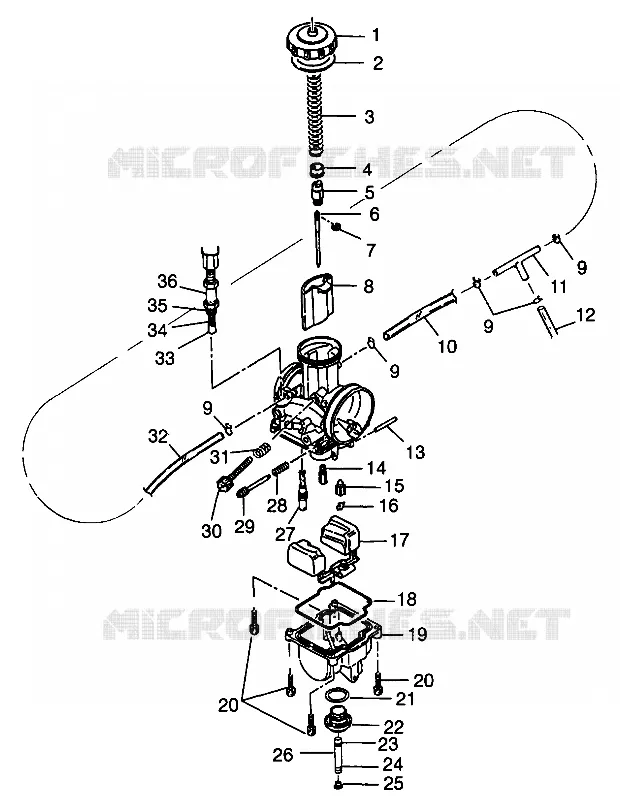

CARBURETOR 600 RMK 0980958 AND EUROPEAN 600 RMK E980958 (4944634463C010)
-
CARB 39MM-600 RMK (Incl. 1-22 27-36)
1253206
Not Available
1
TOP ASM CARB.
3050224
Not Available
2
GASKET
3050225
$3,45 Unit Price incl. VAT
3
SPRING THROTTLE
3050228
Not Available
4
COLLAR
3050238
Not Available
5
HOLDER CABLE
3050223
Not Available
6
JET NEEDLE (R-1368G) (1368G)
3050244
Not Available
7
CLIP JET NEEDLE (10)
3050222
Not Available
8
VALVE THROTTLE KHN.
3050234E02
$159,06 Unit Price incl. VAT
9
CLIP
3050233
Not Available
10
PIPE BOWL VENT
3050242
Not Available
11
T-JOINT
3050243
$19,83 Unit Price incl. VAT
12
VENT BOWL (SHORT)
3050248
Not Available
13
PIN FLOAT
3050232
$18,89 Unit Price incl. VAT
14
MAIN JET KHN. (#160)
3050235160
$15,95 Unit Price incl. VAT
15
VALVE FLOAT
3050218
$83,99 Unit Price incl. VAT
16
CLIP FLOAT VALVE
3050229
$15,74 Unit Price incl. VAT
17
FLOAT KHN.
3050213
Not Available
18
GASKET FLOAT BOWL
3050215
Not Available
19
BOWL FLOAT CARB.
3050214
Not Available
20
SCREW FLOAT BOWL (10)
3050230
Not Available
21
O-RING PLUG SCREW
3050217
$9,44 Unit Price incl. VAT
22
PLUG SCREW
3050216
Not Available
23
CLAMP HOSE
7080534
$3,14 Unit Price incl. VAT
24
CLAMP HOSE(10)
7080544
Not Available
25
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
26
FUEL LINE 5 FT.
8450045153
8450123-153
$157,49 Unit Price incl. VAT
27
PILOT JET KHN. (#45)
305021945
$26,24 Unit Price incl. VAT
28
SPRING
3050227
Not Available
29
SCREW AIR ADJUST
3050226
Not Available
30
ADJUSTER IDLE Substituted by 3050257
3050236
Not Available
31
SPRING
3050237
Not Available
32
PIPE BOWL VENT
3050231
Not Available
33
VALVE STARTER
3050212
Not Available
34
SPRING
3050240
Not Available
35
O-RING
3050241
Not Available
36
CAP STARTER
3050239
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
