1
Engine displacement
500
2
Year
2005
3
Trim
ATP 500 4X4 - A05JD50AA
4
Parts Catalog
CLUTCH COVER
5

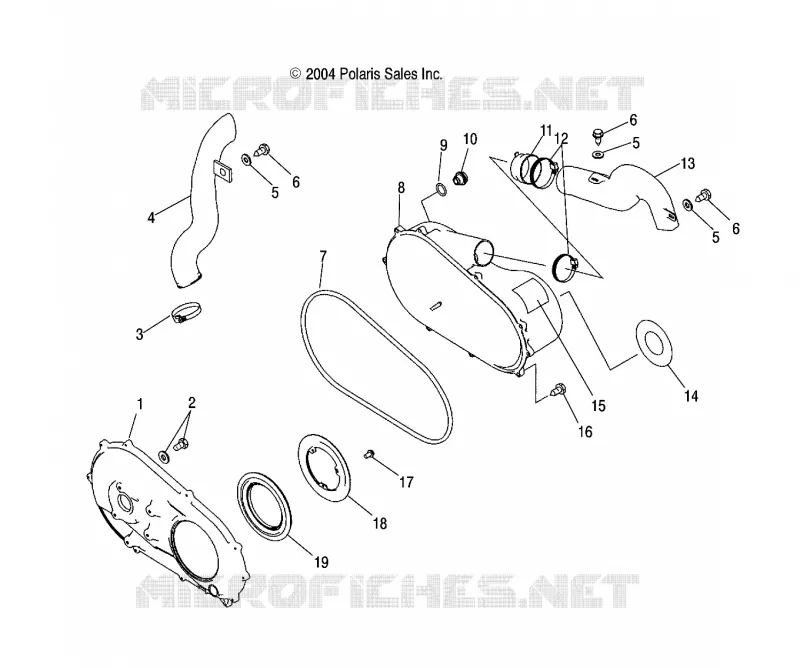

Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
REAR WHEEL DRIVE
CLUTCH COVER
1
2
3
4
5
5
5
6
6
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
1
Kit Inner Clutch Cover [Incl. 4 6 18]
2201678
$283,49 Unit Price incl. VAT
2
Asm. Screw and Washer [INCL. 15 &16]
7517599
$10,49 Unit Price incl. VAT
3
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
4
Duct Inlet Down Tube
5432698
Not Available
5
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
6
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
7
Seal Cover Clutch Outer
5521578
5526450
$78,74 Unit Price incl. VAT
8
Asm. Clutch Cover Outer [Incl. 16 17]
2633262
2633926
$346,49 Unit Price incl. VAT
9
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
10
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
11
Boot Duct Hi Flow
5411489
Not Available
11
Boot Duct Hi-Flow
5412636
$47,24 Unit Price incl. VAT
12
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
13
Duct Air Outlet
5434213
Not Available
14
Decal #Automatic Transmission EBS#
7172747
Not Available
15
DECAL WARNING CLUTCH COVER
7172563
Not Available
16
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
Bracket Clutch Seal
5242046
$68,24 Unit Price incl. VAT
19
SEAL COVER CASE
5410575
$78,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
