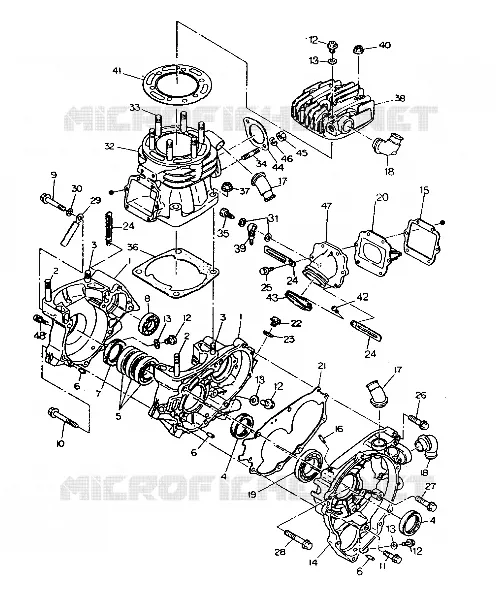

CRANKCASE AND CYLINDER 350 2X4-UPDATE (4919821982035A) FOR TRAIL BOSS 350L 2X4

DRIVEN CLUTCH ASSEMBLY 350 2X4 (4919821982026A)

CRANKSHAFT AND PISTON 350 2X4-UPDATE (4919821982036A)

HEADLIGHT ASM. (Incl. 20 22)

4032038

Not Available

CRANKCASE ASM.

3084117

Not Available

HARNESS HEADLIGHT Substituted by 2460427

2460283

Not Available

STUD

3084118

Not Available

SWITCH HI/LO/ST. Substituted by 4110157

4110095

Not Available

STUD

3084119

$17,84 Unit Price incl. VAT

SWITCH IGN.(MODIFIED) Substituted by 4110140

4110086

$257,24 Unit Price incl. VAT

SEAL OIL

3084120

Not Available

SW O#RIDE REV.LIMIT.

4110083

$57,63 Unit Price incl. VAT

BEARING BALL

3084121

$68,24 Unit Price incl. VAT

STRIP SOCKET

4032037

$43,56 Unit Price incl. VAT

PIN DOWEL Substituted by 3086838

3080103

$13,64 Unit Price incl. VAT

HARNESS MAIN WIRE Substituted by 2460405

2460284

Not Available

SEAL OIL

3084122

Not Available

BEARING BALL

3084123

Not Available

STRAP BLK

7080272

Not Available

BOLT FLANGE

3084124

Not Available

SOCKET TAILLIGHT ASM.

4032033

Not Available

BOLT FLANGE Substituted by 3086742

3084125

Not Available

SPEED NUT-WASHER HEAD-1/4

7670054

$2,09 Unit Price incl. VAT

BOLT FLANGE

3084126

Not Available

BACKING TAILLIGHT

4032036

Not Available

PLUG DRAIN

3083767

Not Available

GASKET TAILLIGHT

4032031

Not Available

GASKET ALUM (10) Substituted by 7555998

3082758

7555998

$2,09 Unit Price incl. VAT

BULB TAILLIGHT (10)

4030040

$16,79 Unit Price incl. VAT

LENS TAILLIGHT Substituted by 4032046

4032030

4032046

$62,99 Unit Price incl. VAT

CRANKCASE #3

3084127

Not Available

SCREW-TAILLIGHT

4032029

$9,44 Unit Price incl. VAT

GASKET REED VALVE (10) (Reed Valve)

3084148

Not Available

PIPE BREATHER (Breather)

3084128

Not Available

BOARD TERMINAL

4040022

Not Available

PIPE 1 ELBOW Substituted by 3086746 (Elbow)

3084129

Not Available

CLAMP POLY

7080303

Not Available

PIPE 2 ELBOW Substituted by 3086747

3084130

Not Available

SCREW(10)

7511942

Not Available

BEARING BALL

3084131

Not Available

INSULATOR-CABLE

5410346

$12,59 Unit Price incl. VAT

VALVE ASM. REED

3084147

Not Available

CABLE BATTERY/ENGINE

4010066

Not Available

GASKET CASE 3 (Case 3)

3084133

Not Available

BATTERY 14 AMP [FROM 8/17/2020]

4140006

$136,49 Unit Price incl. VAT

PLUG Substituted by 3086749

3083453

Not Available

Hook Strap Battery

7010032

$3,14 Unit Price incl. VAT

STRAP BATTERY HOLDDOWN

5410424

5418182

$9,44 Unit Price incl. VAT

GASKET

3082956

$9,44 Unit Price incl. VAT

LINE VENT (38.0##) Substituted by 8360009-600

5521087

8360009-600

$83,99 Unit Price incl. VAT

CLAMP

3083590

$7,34 Unit Price incl. VAT

PAD-BATTERY NOT SHOWN

5810290

5810290-CO

$13,64 Unit Price incl. VAT

BOLT FLANGE Substituted by 3086759 (Adapter)

3084145

Not Available

DECAL BATTERY [No Longer Available]

7072606

Not Available

BOLT FLANGE Substituted by 3086751

3084177

Not Available

BOLT FLANGE

3084134

Not Available

CABLE SOLENOID/STARTER

4010064

Not Available

CABLE BATTERY/SOLENOID

4010065

Not Available

BOLT FLANGE

3084135

Not Available

CLAMP

3083384

Not Available

NUT-NYLOC 10-24 Y

7541925

$1,56 Unit Price incl. VAT

WASHER(10)

3080142

Not Available

RECTIFIER VOLTAGE

4060087

Not Available

HEAT SINK

5210650

Not Available

WASHER(10) Substituted by 7555998

3083138

7555998

$2,09 Unit Price incl. VAT

CYLINDER

3084137

Not Available

SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]

7512018

$6,29 Unit Price incl. VAT

LIMITER REV.SPEED

4060085

Not Available

STUD

3084138

Not Available

STUD (10)

3080016

$9,23 Unit Price incl. VAT

BOLT

7512007

$7,34 Unit Price incl. VAT

WASHER-.197X.50 INT/EXT LK-Y

7571602

$9,44 Unit Price incl. VAT

BOLT-BANJO

3083137

Not Available

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$2,09 Unit Price incl. VAT

GASKET CYLINDER (Cylinder)

3084140

Not Available

NUT FLANGE

3082911

7547013

$3,14 Unit Price incl. VAT

RIVET POP(50)

7621322

Not Available

SHIELD TERM.BOARD

5431152

Not Available

HEAD CYLINDER

3084141

$647,84 Unit Price incl. VAT

VALVE CHECK

3083894

Not Available

NUT-FLANGE(10)

3082910

Not Available

GASKET HEAD Substituted by 3084517 (Head)

3084142

Not Available

SCREW

3081497

$4,19 Unit Price incl. VAT

BAND ASM. (Adapter)

3084144

Not Available

GASKET EXHAUST

3083770

Not Available

NUT(10)

3080285

Not Available

WASHER LOCK (10)

3080530

$6,29 Unit Price incl. VAT

ADAPTER

3084143

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
