1
Engine displacement
500
2
Year
1998
3
Trim
big-boss-500-6x6-w98ae50a
4
Parts Catalog

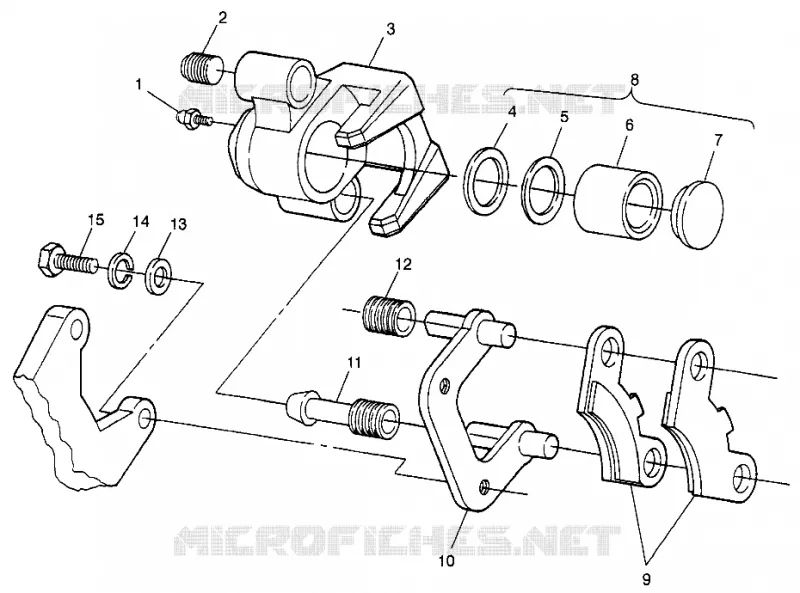

MIDDLE AXLE BRAKE
5
Parts Diagram
Parts Catalog
CONTROLS
by
SWING ARM
MIDDLE AXLE BRAKE
-
-
-
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
-
-
-
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
-
-
-
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
-
CALIPER ASM LH(MID-AXLE) (Complete)
1930663
Not Available
-
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
-
CALIPER ASM RH(MIDAXLE) (Complete)
1930664
Not Available
1
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
2
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
3
CALIPER LH BRAKE MACH. Substituted by 5131261 (Use w/1910234 1910309)
5131115
$262,49 Unit Price incl. VAT
3
CALIPER RH BRAKE MACH. Substituted by 5131262 (Use w/1910235 1910310)
5131116
5133880
$262,49 Unit Price incl. VAT
4
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
5
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
6
PISTON CALIPER Substituted by 5132294 (Before 2/11/99)
5020506
1930665
$104,99 Unit Price incl. VAT
7
INSULATOR CALIPER FR. Substituted by 5132294 (Before 2/11/99)
5910026
1930665
$104,99 Unit Price incl. VAT
8
KIT PISTON AND SEAL [INCL. 4-6]
1930665
$104,99 Unit Price incl. VAT
9
KIT BRAKEPAD FRONT (Complete set of 2 pads)
2200465
$83,99 Unit Price incl. VAT
10
MOUNT CALIPER ASM.
1910037
Not Available
11
BOOT BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
12
BOOT PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
14
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
15
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
