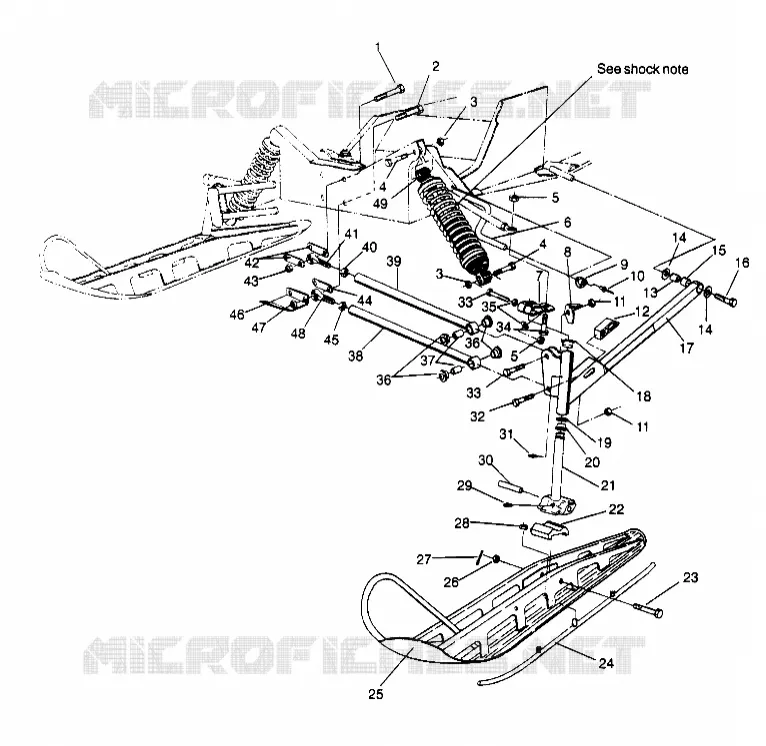

FRONT SUSPENSION AND SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004)
5
Parts Diagram
Parts Catalog
HOOD
by
STEERING
FRONT SUSPENSION AND SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004)
1
BOLT(10)
7512551
Not Available
2
BOLT(10)
7512656
$11,01 Unit Price incl. VAT
3
NUT NYLOC(10)
7542453
7542439
$2,09 Unit Price incl. VAT
4
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
5
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
6
BAR SWAY BLACK
5224237067
Not Available
6
BAR SWAY 9/16 BLK.
5224476067
Not Available
7
ARM STEERING
5220326067
Not Available
8
STOP STRNG RH BLK.
5220238067
Not Available
8
STOP STRNG LH BLK.
5220237067
Not Available
9
BUSHING-SWAYBAR
5410383
Not Available
10
RIVET
7621433
$2,09 Unit Price incl. VAT
11
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
12
SLIDE-SWAYBAR
5410384
Not Available
13
PIVOT-TRAILING ARM
5410382
Not Available
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
Not Available
16
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
17
ARM TRLG LH BLK. Substituted by 1822427
1822053067
Not Available
17
ARM TRLG RH BLK. Substituted by 1822428
1822052067
Not Available
18
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
19
BUSHING
7556509
$3,14 Unit Price incl. VAT
20
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
21
SPINDLE BLK.
6230073067
Not Available
22
STOP RUBBER
5521276
Not Available
23
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
24
60 DEG 4#CARBIDE(STEEL SKI) (PT) (Pair)
2871288
$110,24 Unit Price incl. VAT
24
SKAG PR. CARBIDE
2870693
$99,74 Unit Price incl. VAT
25
SKI WELD BLK
1820332067
Not Available
26
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
27
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
28
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
29
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
30
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
31
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
32
BOLT(10) Substituted by 7515540
7515492
7515540
$9,44 Unit Price incl. VAT
33
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
34
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
35
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
36
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
37
BUSHING
5010127
$12,59 Unit Price incl. VAT
38
ROD RAD.LOW. (SKS)
1822123067
Not Available
38
ROD RAD.LOW.(STORM) (Storm)
1822102067
Not Available
39
ROD RAD.UPPER(STORM) (Storm)
1822099067
Not Available
39
ROD RAD.UP. (SKS)
1822121067
Not Available
40
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
41
ROD END RH Substituted by 7061010
7060155
Not Available
42
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
43
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
44
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
45
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
46
BRACE PAN
5223997067
Not Available
47
NUT FLEX (10)
7542703
Not Available
48
ROD END RH Substituted by 7061011
7060156
7061071
$99,74 Unit Price incl. VAT
49
SPRING COMPRESSION BLACK
7041261067
$246,74 Unit Price incl. VAT
49
SHOCK FR.SUSP. (XLT SKS)
7041285
Not Available
49
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
49
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
