1
Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN 570 SP EPS QUAD
4
Parts Catalog

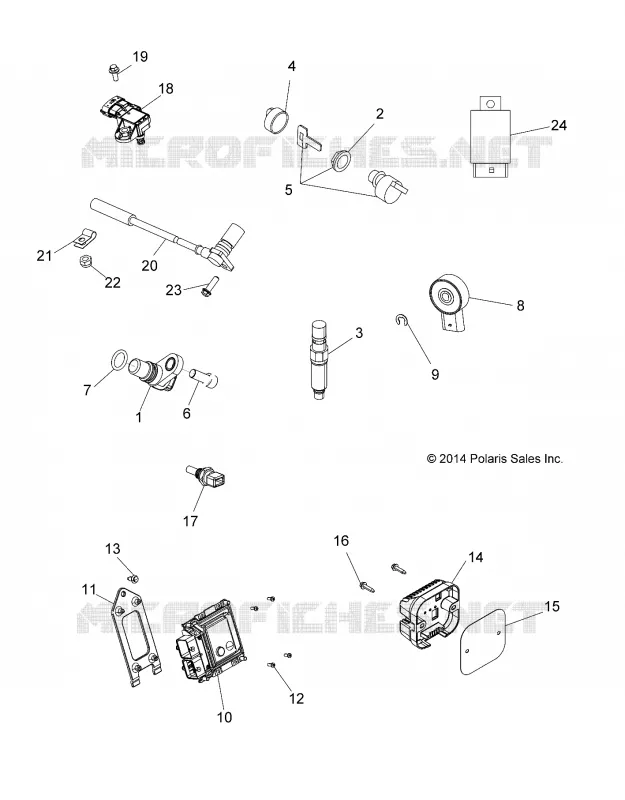

ELECTRICAL, SWITCHES, SENSORS AND ECM
5
Parts Diagram
Parts Catalog
ELECTRICAL, MAIN WIRE HARNESS
by
ENGINE, OIL FILTER AND DIPSTICK
ELECTRICAL, SWITCHES, SENSORS AND ECM
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
1
1
1
1
2
2
3
3
4
4
5
6
6
7
8
9
9
10
10
11
12
13
13
14
15
16
17
18
19
1
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
2
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
3
SWITCH-BRK M10X1.25 DBL SEALED [TO 10/01/2022]
4014262
4081264
$153,29 Unit Price incl. VAT
4
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
5
SWITCH KEY 3 POSITION [INCL. 23-25]
4012165
4083589
$202,64 Unit Price incl. VAT
5
Blank Key Series 2200 2300 2700 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.
4010321
4083604
$27,29 Unit Price incl. VAT
5
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
6
SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75
3234247
$10,49 Unit Price incl. VAT
7
O-RING
3234302
$13,64 Unit Price incl. VAT
8
SWITCH ROTARY 2 PIN RESISTIVE
7661999
$220,49 Unit Price incl. VAT
9
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
10
ECM-HARD ME17 2CYL 250K
4014125
$1 123,49 Unit Price incl. VAT
11
MNT-ECM REAR BLK
5438708070
$19,94 Unit Price incl. VAT
12
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
13
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
14
REG-3PH 50A SERIES HISPD TCAP
4015230
2208110
$556,49 Unit Price incl. VAT
15
COVER VOLTAGE REGULATOR
5253294
$20,99 Unit Price incl. VAT
16
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
17
SENSOR-THERMISTER
4010644
$141,74 Unit Price incl. VAT
18
SENSOR-TMAP DSS3-TF
2411528
$178,49 Unit Price incl. VAT
19
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
20
FOIL
5814263
Not Available
20
SENSOR CRANK POSITION
2411719
$194,24 Unit Price incl. VAT
21
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
22
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
23
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
24
MODULE FLASHER LED
4013043
$283,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
