1
Engine displacement
700
2
Year
2002
3
Trim
SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB
4
Parts Catalog
FRONT RACK AND BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING (IF BUILT BEFORE 9/03/01)
by
ENGINE MOUNTING

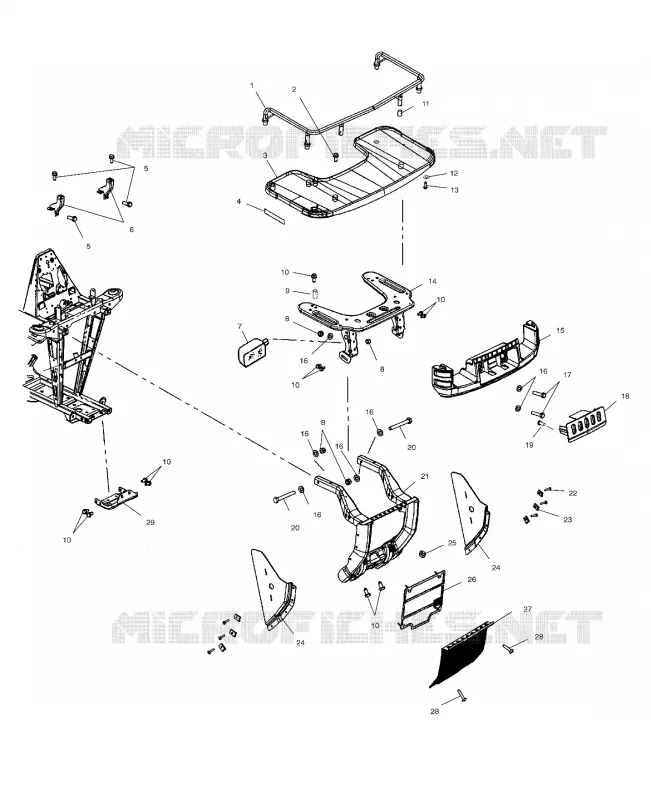

FRONT RACK AND BUMPER MOUNTING
1
2
3
4
5
5
6
6
6
6
7
7
7
8
8
9
10
10
10
10
10
10
11
12
13
14
14
15
16
16
16
16
16
16
17
18
19
20
20
21
21
22
23
24
24
25
26
27
28
28
28
28
29
1
2
2
3
5
5
6
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
18
19
20
21
22
1
Kit Front Rack Extender
2871499067
Not Available
2
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
3
RACK FRONT BLK (Incl. Ref. 3 and Decal)
2670180070
Not Available
4
Decal Reflector Amber
7079926
Not Available
5
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
6
Support Front Rack LH
1013744067
Not Available
6
Support Front Rack RH
1013746067
$141,74 Unit Price incl. VAT
7
Headlight LH
2431014
Not Available
7
Headlight RH
2431015
Not Available
7
Bulb Replacement 27W
4030059
Not Available
8
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
9
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
10
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
11
Insert
5432387
Not Available
12
WASHER
7556175
$9,44 Unit Price incl. VAT
13
Screw Flange
7517208
$3,66 Unit Price incl. VAT
14
Support Front Rack
1013461067
$335,99 Unit Price incl. VAT
14
Support Front Rack (AA)(CA)(CB)
1013461317
Not Available
15
Bumper
5434001070
Not Available
16
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
17
BOLT(10) Substituted by 7515352
7515306
Not Available
18
Panel
5434002070
Not Available
19
SCR-#14X1-3/4 LG HI/LO/TAPER-M
7512093
$2,09 Unit Price incl. VAT
20
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
21
Guard Brush
1013667067
Not Available
22
Screw
7512097
$7,34 Unit Price incl. VAT
23
NUT U-TYPE
7670094
$10,49 Unit Price incl. VAT
24
Shield Side Radiator LH
5434314
$68,24 Unit Price incl. VAT
24
Shield Side Radiator RH
5434315
Not Available
25
GROMMET RUBBER
5410774
5412504
$7,34 Unit Price incl. VAT
26
Cover Radiator
5434313
$99,74 Unit Price incl. VAT
27
Grill
5244808067
$99,74 Unit Price incl. VAT
28
SCREW(10)
7522021
Not Available
28
Screw
7518046
$9,44 Unit Price incl. VAT
29
Bracket Bumper Lower
5245767067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
