SEAT BASE AND SLIDER FOR RANGER CREW 1000 WINTER PREP FACTORY CHOICE 49S & 50S FROM 2020

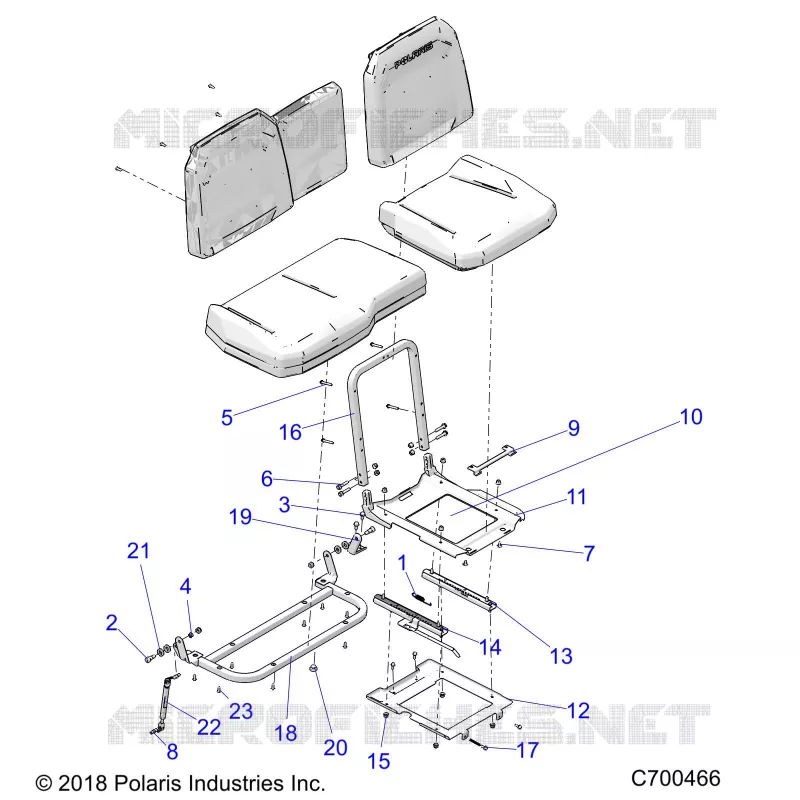

SEAT BASE AND SLIDER

1

SPRING-SEAT SLIDER

7082394

Not Available

2

SCR-SHS-M10X1.5-M12X16 RIE

7519355

$19,94 Unit Price incl. VAT

3

SCR-HFH-M8X1.25X20 TAP/R ZPB

7519780

$9,44 Unit Price incl. VAT

4

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$7,34 Unit Price incl. VAT

5

SCR-#14X1-3/4 LG HI/LO/TAPER-M

7512093

$2,09 Unit Price incl. VAT

6

SCR-HXFL-M8X1.25X45 8.8 ZOD

7519738

$7,34 Unit Price incl. VAT

7

SCR-M6X1X16 TR/TX-M

7518936

$7,34 Unit Price incl. VAT

8

BALL-END

7082301

$5,24 Unit Price incl. VAT

9

BRKT-SEAT HINGE DOUBLE BLK

5265262458

$52,49 Unit Price incl. VAT

10

ASM-SLIDE SEAT [INCL. 11-15 27]

2688492

$834,74 Unit Price incl. VAT

11

WELD-SLIDE SEAT TOP BLK

1023808458

$167,99 Unit Price incl. VAT

12

BRKT-SEAT BTM BLK

5265236458

$120,74 Unit Price incl. VAT

13

SLIDE SEAT LH

7081852

$99,74 Unit Price incl. VAT

14

SLIDE SEAT RH

7081853

$99,74 Unit Price incl. VAT

15

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

16

TUBE-SEAT BACK BLK

5340280458

$136,49 Unit Price incl. VAT

17

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

18

WELD-SEAT BASE PASS M. BLK

1023099458

$194,24 Unit Price incl. VAT

19

BRKT-SEAT PIVOT BLK

5263494458

$141,74 Unit Price incl. VAT

20

BUMPER-RUBBER

5412067

$7,34 Unit Price incl. VAT

21

WASHER-SEATBELT RUBBER

5813829

$2,09 Unit Price incl. VAT

22

SHOCK-GAS 285MM

7044799

$73,49 Unit Price incl. VAT

23

SCR-TX TRUSS-#14X3/4 HI/LO ZBK

7519045

$6,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
