1
Engine displacement
400
2
Year
1997
3
Trim
scramber-400l-w97bc38c
4
Parts Catalog
FRONT DRIVE SCRAMBLER 400L W97BC38C (4939893989B001)
5
Parts Diagram
Parts Catalog
DECALS SCRAMBLER 400L W97BC38C (4939893989A014)
by
FRONT TIGHTENER SCRAMBLER 400L W97BC38C (4939893989B002)

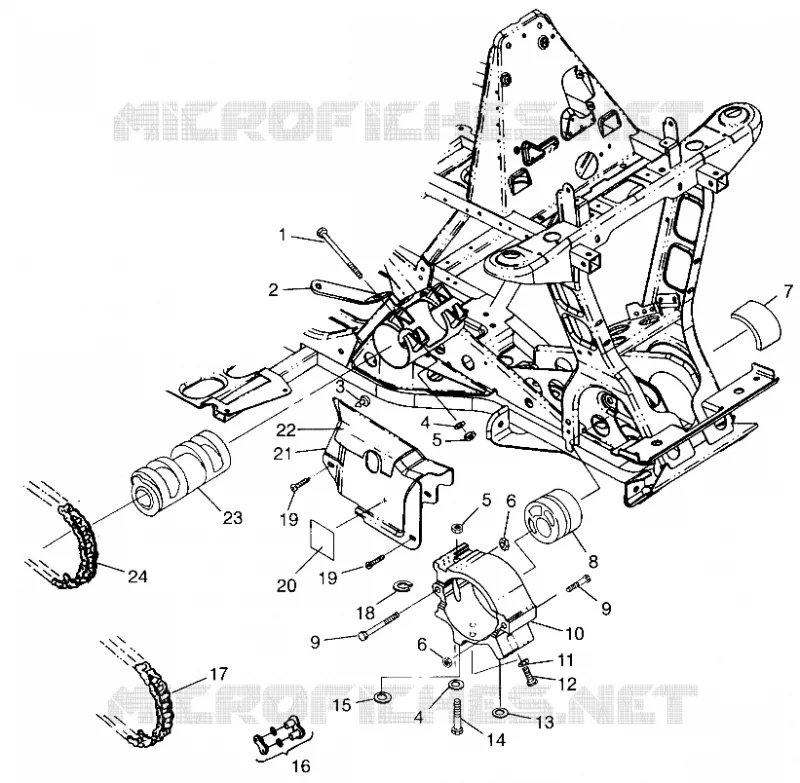

FRONT DRIVE SCRAMBLER 400L W97BC38C (4939893989B001)
1
2
3
4
4
5
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
8
24
1
BOLT(10)
7512583
Not Available
2
BRKT UP.COVER MT.
5222270067
Not Available
3
CLIP-XMAS TREE .945 X .228
7670101
$4,19 Unit Price incl. VAT
4
WASHER-.453X1.0X.078-Y
7555883
$7,34 Unit Price incl. VAT
5
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
6
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
7
SPACER F.ECCENTRIC
5811519
Not Available
9
SCREW
7517303
Not Available
10
CLAMP FR.ECCENTRIC
5131379
Not Available
11
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
12
BOLT(10)
7515522
$7,34 Unit Price incl. VAT
13
WASHER THRUST
7555787
$10,49 Unit Price incl. VAT
14
SCREW
7517304
Not Available
15
WASHER Substituted by 7555720
7555784
$1,56 Unit Price incl. VAT
16
CONNECTOR LINK
3225024
$47,24 Unit Price incl. VAT
17
CHAIN DRIVE Substituted by 3224056-064
3224041
$194,24 Unit Price incl. VAT
18
Shim [.030 Inch]
5211517
$52,49 Unit Price incl. VAT
19
SCREW(10)
7512252
Not Available
20
DECAL FR.CHAIN TENSION
7074956
Not Available
21
GUARD FR.CHAIN
5432572
Not Available
22
FOIL CHAINGUARD
5811502
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
CHAIN DRIVE Substituted by 3224056-070
3224044
$209,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
