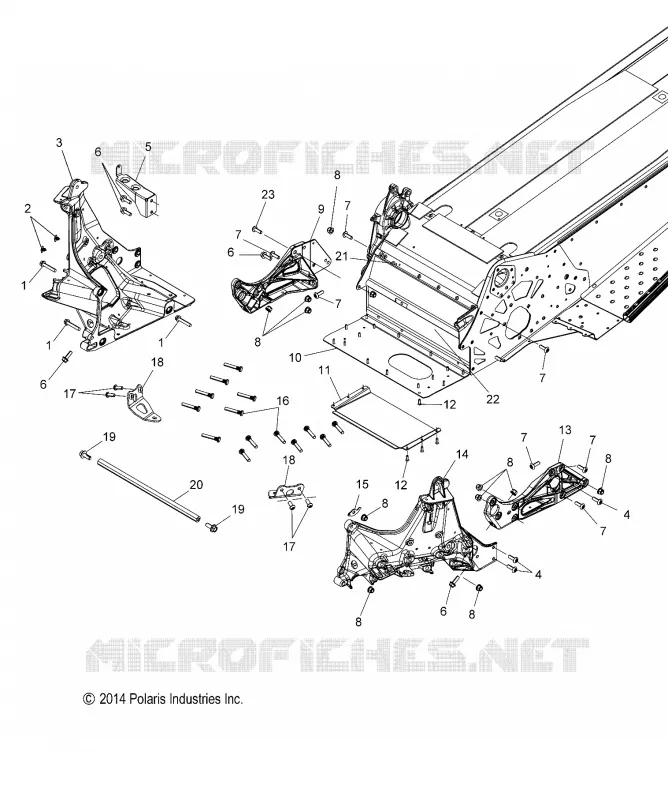

CHASSIS, BULKHEAD ASM. FOR 550 VOYAGEUR 155 ES FROM 2019

CHASSIS, BULKHEAD ASM.

-

KIT LORD 406 REPAIR KIT 50 ML [ADHESIVE]

2204171

$517,64 Unit Price incl. VAT

-

KIT LORD MIX NOZZLES 12 PIECE

2204172

$14,69 Unit Price incl. VAT

-

KIT LORD 406 50 ML CARTRIDGE [ADHESIVE]

2204400

$369,59 Unit Price incl. VAT

1

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$3,14 Unit Price incl. VAT

2

CLIP-DART (NYLON)

7670067

$7,34 Unit Price incl. VAT

3

ASM. CLIP F/C RH RACK STEER [INCL. STUDS][REQUIRES ADHESIVE]

1020266

$509,24 Unit Price incl. VAT

4

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

5

BRKT. LWR SUPPORT RESONATOR

5255064

$73,49 Unit Price incl. VAT

6

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$7,34 Unit Price incl. VAT

7

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$6,29 Unit Price incl. VAT

8

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

9

BRACE LOWER RH [REQUIRES ADHESIVE]

5138693

$167,99 Unit Price incl. VAT

10

FLOOR BULKHEAD VENTED

5256779

$47,24 Unit Price incl. VAT

11

VENT FLOOR

5256780

$83,99 Unit Price incl. VAT

12

RIVET-3/16-.090-.290

7661637

$2,09 Unit Price incl. VAT

13

ASM. BRACE LOWER LH [REQUIRES ADHESIVE][INCL. SLEEVE]

1017942

$125,99 Unit Price incl. VAT

14

ASM. CLIP F/C LH RACK STEER [INCL. STUDS][REQUIRES ADHESIVE]

1020265

$509,24 Unit Price incl. VAT

15

BRKT. PIPE/CHASSIS

5252680

$10,49 Unit Price incl. VAT

16

STUD

7519204

$36,74 Unit Price incl. VAT

17

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$7,34 Unit Price incl. VAT

18

ASM. BRKT. PITMAN/IDLER SUPPORT

1020246

$26,24 Unit Price incl. VAT

19

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$7,34 Unit Price incl. VAT

20

TUBE CROSS

5137910

$99,74 Unit Price incl. VAT

21

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$2,09 Unit Price incl. VAT

22

CLOSE OFF BULKHEAD F/C

5137715

Not Available

23

SCREW M8x30 TR/TX

7518953

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
