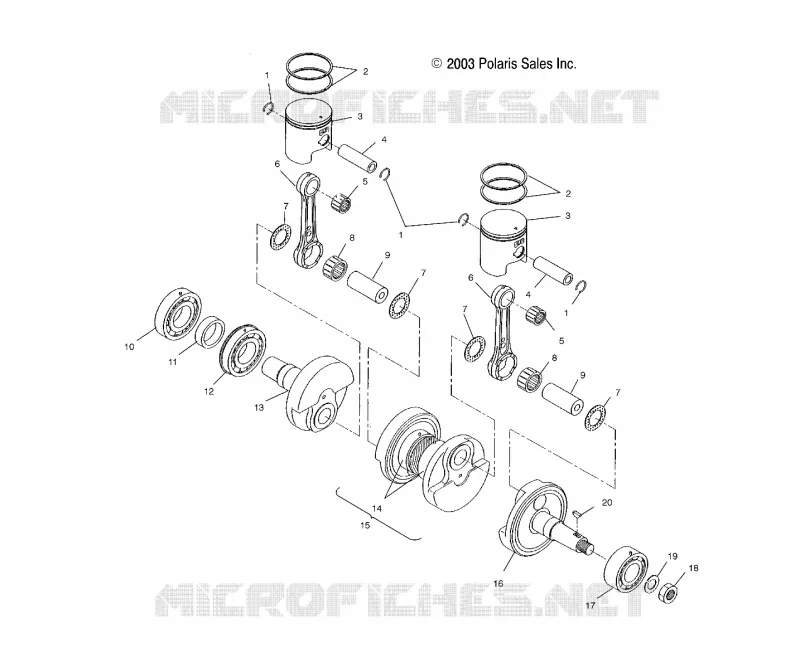

PISTON CRANKSHAFT FOR 550 CLASSIC EDGE FROM 2004

PISTON CRANKSHAFT

1

CLIP PISTON PIN

3084167

$356,99 Unit Price incl. VAT

2

RING-PISTON(STD) (Standard)

3086988

Not Available

2

RING-PISTON(0.50 O/S) (0.50mm/.020#O/S)

3086990

$47,24 Unit Price incl. VAT

2

RING-PISTON(0.25 O/S) (0.25mm/.010#O/S)

3086989

Not Available

3

Piston Set [Standard](If built after 8/13/02)

3088216

Not Available

3

Piston Set [0.50m/.020O/S](If built after 8/13/02)

3088218

$216,29 Unit Price incl. VAT

3

Piston Set [0.25m/.010O/S](If built after 8/13/02)

3088217

Not Available

4

PIN PISTON

3083838

$356,99 Unit Price incl. VAT

5

BEARING END SMALL

3083216

$25,71 Unit Price incl. VAT

6

ROD CONNECTING

3240083

$2 351,99 Unit Price incl. VAT

7

SPACER CRANK PIN

3083277

$27,29 Unit Price incl. VAT

8

BEARING END LARGE

3086390

$2 351,99 Unit Price incl. VAT

9

CRANK PIN 2

3083456

$57,74 Unit Price incl. VAT

10

BEARING BALL

3085754

$88,19 Unit Price incl. VAT

11

SPACER

3085677

$23,09 Unit Price incl. VAT

12

BEARING BALL

3085753

$88,19 Unit Price incl. VAT

13

Crankshaft 3 [PTO Side](If built after 8/13/02)

3088199

$410,54 Unit Price incl. VAT

14

BEARING BALL

3084586

$60,89 Unit Price incl. VAT

15

CRANKSHAFT 2 CENTER [INCL. 7]

3085674

$1 044,74 Unit Price incl. VAT

16

Asm. Crankshaft [Incl. 7-9 10 14-15](If built after 8/13/02)

3088198

$2 530,49 Unit Price incl. VAT

16

CRANKSHAFT 1 MAG SIDE

3087177

$797,99 Unit Price incl. VAT

17

BEARING BALL

3084681

$141,74 Unit Price incl. VAT

18

NUT

3083093

$7,34 Unit Price incl. VAT

19

WASHER SPRING

3083094

$6,29 Unit Price incl. VAT

20

KEY Substituted by 3081543

3080130

$26,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
