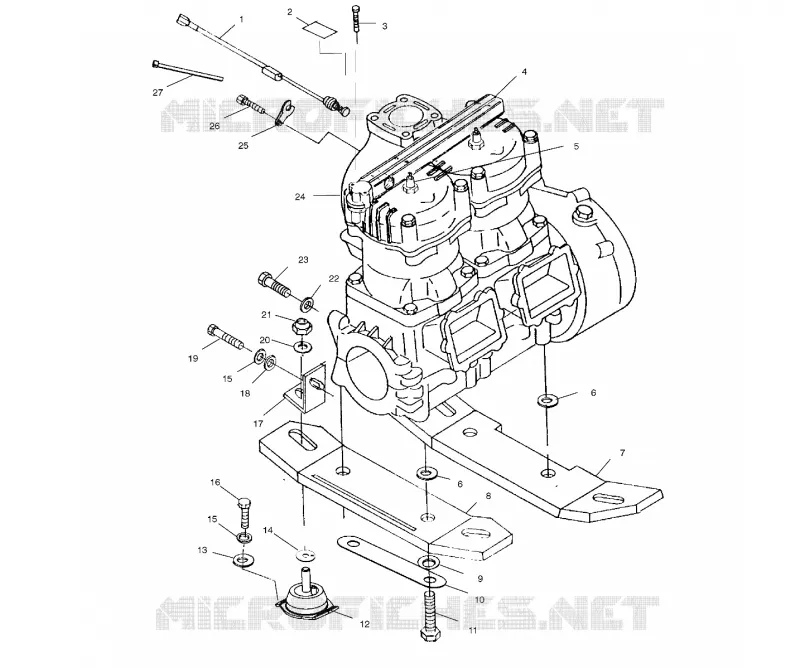

ENGINE MOUNTING FOR VIRAGE I - W025101C FROM 2002

ENGINE MOUNTING

1

SENSOR-WATER TEMP DFI

2410125

Not Available

2

DECAL SPARKPLUG REC.

7077026

$4,82 Unit Price incl. VAT

3

SCREW SHOULDER S.S.(10)

7515149

Not Available

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

6

WASHER-FLAT .44X1.25X.10 SS

7556184

$6,18 Unit Price incl. VAT

7

Plate Mount Front

5631166329

$225,74 Unit Price incl. VAT

8

Plate Rear Mount

5631167329

Not Available

9

WASHER-FLAT .44X.94X.06 18-8SS

7556170

Not Available

10

LOCK-MOUNT PLATE

5245460

$21,20 Unit Price incl. VAT

11

SCREW SS.

7517330

Not Available

12

MOUNT-ENGINE LORD BENT 50-520

3021254

$119,16 Unit Price incl. VAT

13

WASHER(10)

7555866

$9,02 Unit Price incl. VAT

14

SHIM ENG.MT.(PWC)

5211727

Not Available

15

WASHER LOCK S.S.(10)

7552610

Not Available

16

SCREW(10)

7517627

Not Available

17

BRKT R.MUFFLER

1060142

$85,88 Unit Price incl. VAT

18

WASHER FLAT S.S. (10)

7555835

$0,93 Unit Price incl. VAT

19

BOLT S.S.(10)

7515357

Not Available

20

WASHER FLAT S.S.(10) (.02)

7555848

Not Available

21

NUT NYLOK S.S.(10) Substituted by 7547001

7542725

$4,61 Unit Price incl. VAT

22

WASHER LOCK SS.

7556055

Not Available

23

BOLT SS.

7517497

$7,13 Unit Price incl. VAT

24

Kit Short Block NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly.

2201843

Not Available

25

CLIP RETAINER TEMP SWITCH

5244176

$7,76 Unit Price incl. VAT

26

SCR-HXFL-M5X0.8X14 18-8

7516603

$19,94 Unit Price incl. VAT

27

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
