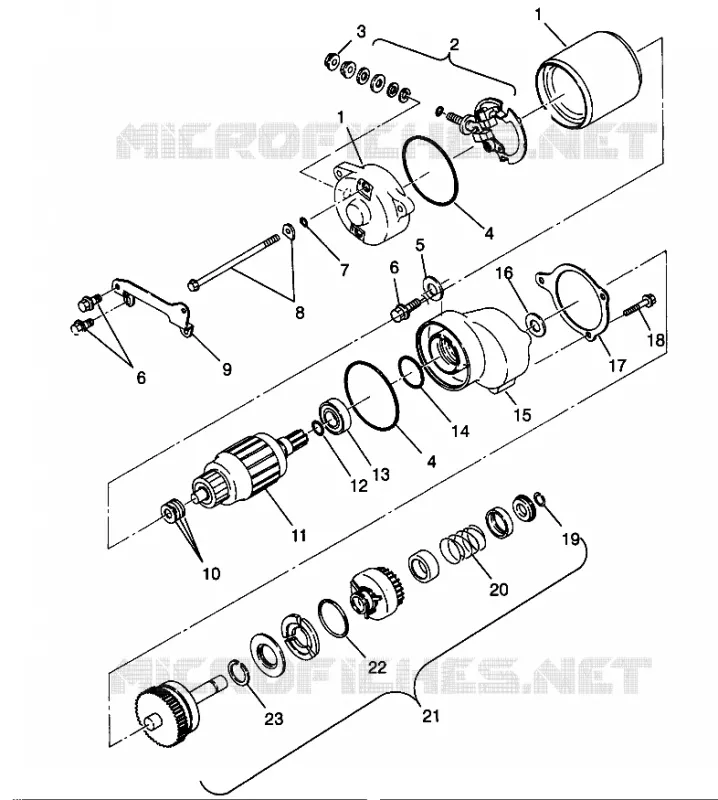

STARTING MOTOR SCRAMBLER W967840 (4935823582D005)
5
Parts Diagram
Parts Catalog
RECOIL STARTER SCRAMBLER W967840 (4935823582D004)
by
MAGNETO ASSEMBLY SCRAMBLER W967840 (4935823582D006)
STARTING MOTOR SCRAMBLER W967840 (4935823582D005)
-
1
1
1
1
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
-
STARTER MOTOR ASM. Substituted by 3085393 (Incl.8-17) (#J# Model Only)
3084403
Not Available
1
MOTOR STARTING Substituted by 3085392
3085282
Not Available
1
COVER REAR STARTER(300-400)
3085032
$132,29 Unit Price incl. VAT
2
BRUSH COMPL.2-POLE *
3084406
$230,99 Unit Price incl. VAT
3
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
4
RING RUBBER
3084405
Not Available
5
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
6
BOLT FLANGE(10) Substituted by 3087035
3083568
7520710
$7,34 Unit Price incl. VAT
7
O-RING
3084408
Not Available
8
BOLT THROUGH (#J# Model Only)
3084407
Not Available
9
BRACKET Substituted by 3086780
3084214
Not Available
10
WASHER SET
3083754
$4,19 Unit Price incl. VAT
11
ARMATURE ASM. *
3084404
$333,89 Unit Price incl. VAT
12
O RING
3083934
Not Available
13
BALL BEARING
3083777
$54,59 Unit Price incl. VAT
14
O RING
3083741
Not Available
15
COVER FRT COMPLETE
3085305
Not Available
16
WASHER GEARSHAFT Substituted by 7555908
3083737
7556994
$6,29 Unit Price incl. VAT
17
GASKET STARTER(NON-ASBESTOS)
3085283
Not Available
18
BOLT FLANGE Substituted by 3086781
3084215
$9,44 Unit Price incl. VAT
19
CLIP
3084409
$13,64 Unit Price incl. VAT
20
SPRING RETURN
3084410
$3,98 Unit Price incl. VAT
21
GEAR SHAFT ASM. Substituted by 3085394
3083647
$456,74 Unit Price incl. VAT
22
SPRING WEIGHT
3084411
$25,08 Unit Price incl. VAT
23
CLIP
3084412
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
