1
Engine displacement
300
2
Year
1996
3
Trim
XPRESS 300 - W969530
4
Parts Catalog

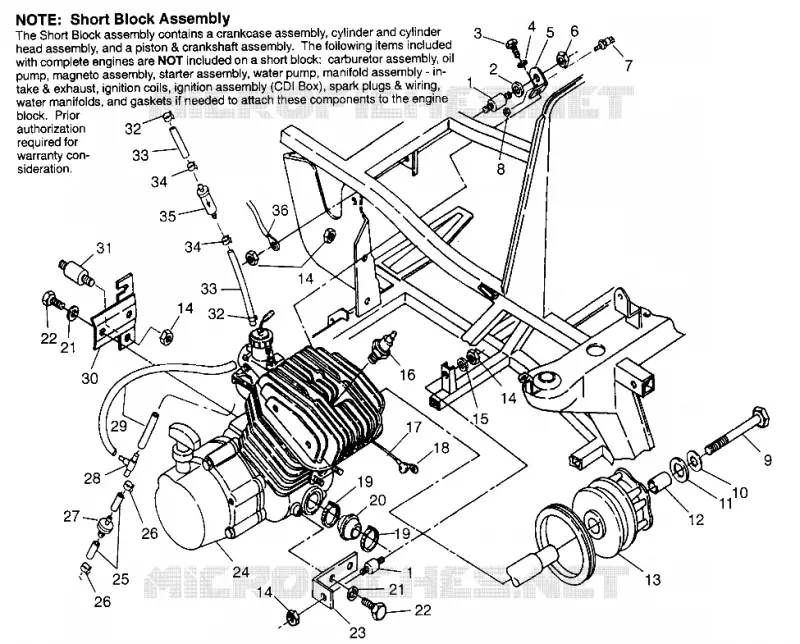

ENGINE MOUNTING (300) XPRESS 300 W969530 (4935923592A013)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING (400) XPRESS 400 W969540 (4935923592A012)
by
COOLING SYSTEM (300) XPRESS 300 W969530 (4935923592A014)
ENGINE MOUNTING (300) XPRESS 300 W969530 (4935923592A013)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
19
20
21
21
22
22
23
24
25
26
26
27
28
29
30
31
32
32
33
33
34
34
35
36
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
19
20
21
21
22
22
23
24
25
26
26
27
28
29
30
31
32
32
33
33
34
34
35
36
1
MOUNT MOTOR
3110026
$73,49 Unit Price incl. VAT
2
INSULATOR MOTOR MT.
5430802
$52,49 Unit Price incl. VAT
3
BOLT(10)
7515321
Not Available
4
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
5
MOUNT ENG.TOP BLK.
5240704067
Not Available
6
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
7
THERMOSTAT COOL.FAN Substituted by 4010211
4110114
Not Available
8
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
9
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
10
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
11
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
12
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
Nut
7542403
Not Available
15
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
16
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
17
CABLE SOLENOID/STARTER
4010064
Not Available
18
INSULATOR-CABLE
5410346
$12,59 Unit Price incl. VAT
19
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
20
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
22
SCREW
7512490
$7,34 Unit Price incl. VAT
23
PLATE FR.MTR.MT.
5220881067
Not Available
24
ENG.(S.B.)EC28PF-SB Substituted by 1211654
3084720
Not Available
25
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
26
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
27
CHECKVALVE VENT Substituted by 7051011
7052047
Not Available
28
FITTING TEE
7052005
Not Available
29
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
30
MT REAR (300) BLK.
5241176067
Not Available
31
MOUNT MOTOR
3110028
Not Available
32
STRAP 8 IN.TYTON
7080571
$3,98 Unit Price incl. VAT
33
FUEL LINE 3/16 ID(600 CM.)
8450042600
Not Available
34
CLAMP
7080236
$3,14 Unit Price incl. VAT
35
FILTER
2530009
$12,59 Unit Price incl. VAT
36
CABLE GROUND/ENG.
4010067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
