1
Engine displacement
500
2
Year
2002
3
Trim
LUH 6X6 PPS - C02CL50AB
4
Parts Catalog

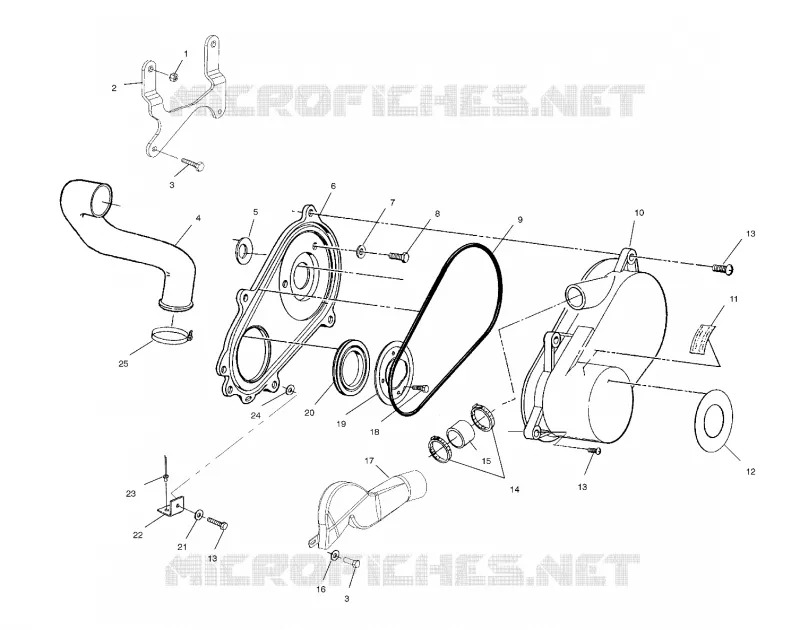

CLUTCH COVER
5
Parts Diagram
Parts Catalog
AIR BOX
by
GEAR SELECTOR
CLUTCH COVER
12
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
12
13
14
15
16
17
17
18
18
19
20
21
22
1
Nutsert
7547067
$11,01 Unit Price incl. VAT
2
Bracket Clutch Cover
5242208067
Not Available
3
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
4
Duct Clutch Air Inlet
5433427
Not Available
5
Seal Cover
5411553
$41,99 Unit Price incl. VAT
6
Kit Inner Clutch Cover Service [Incl. Inner Cover Seals Screws]
2201851
$246,74 Unit Price incl. VAT
7
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$9,44 Unit Price incl. VAT
8
BOLT(10)
7512278
Not Available
9
Seal Cover Clutch Outer
5521578
5526450
$78,74 Unit Price incl. VAT
10
Cover Clutch Outer Black
5433451070
5438142-070
$346,49 Unit Price incl. VAT
11
DECAL WARNING CLUTCH CVR (If built after 10/04/99)
7078689
Not Available
12
DECAL AUTO.TRANSMISSION
7074782
Not Available
13
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
14
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
15
Boot Duct Hi Flow
5411489
Not Available
16
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
17
Duct Air Outlet Clutch
5433657
$58,16 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
Bracket Clutch Seal
5242046
$68,24 Unit Price incl. VAT
20
SEAL COVER CASE
5410575
$78,74 Unit Price incl. VAT
21
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
22
Bracket Clutch Cover
5242693067
Not Available
23
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
24
SPACER-.26IDX.75ODX.38 NY BLK
7556091
$7,34 Unit Price incl. VAT
25
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
