1
Engine displacement
570
2
Year
2017
3
Trim
RZR 570
4
Parts Catalog

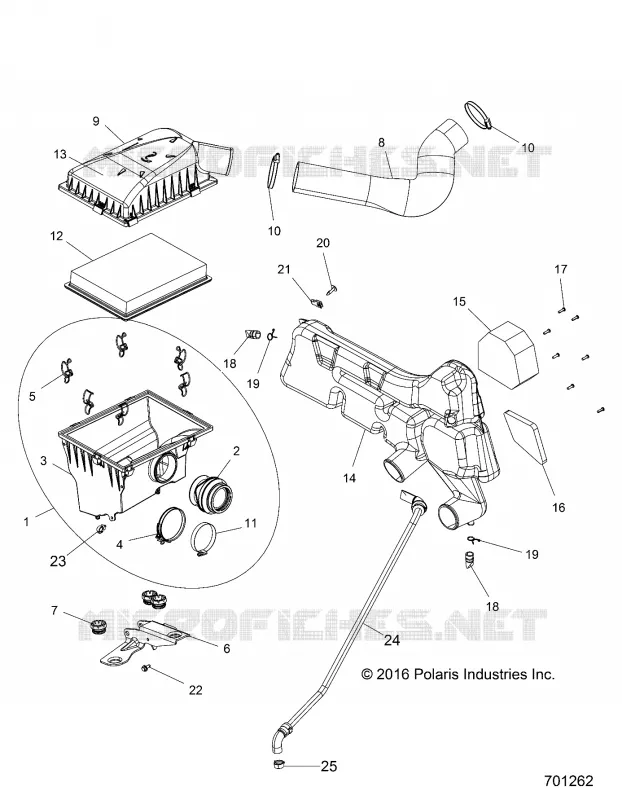

ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
by
ENGINE, BREATHER
ENGINE, AIR INTAKE SYSTEM
15
16
17
18
18
19
19
20
21
22
23
24
25
1
ASM-AIRBOX MAIN [INCL. 1-4]
1241047
$178,49 Unit Price incl. VAT
2
BOOT-AIRBOX
5415864
$47,24 Unit Price incl. VAT
3
BASE AIRBOX
5438897
$136,49 Unit Price incl. VAT
4
CLAMP AIRBOX
7081312
$20,99 Unit Price incl. VAT
5
CLIP-AIRBOX
7081707
$9,44 Unit Price incl. VAT
6
BRACKET MOUNT BLACK
5254922329
$52,49 Unit Price incl. VAT
7
GROMMET
5412507
$12,59 Unit Price incl. VAT
8
HOSE INTAKE
5415098
$173,24 Unit Price incl. VAT
9
LID AIRBOX
5450157
$136,49 Unit Price incl. VAT
10
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
11
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
12
FILTER-AIR
7082241
7081706
$57,63 Unit Price incl. VAT
13
DECAL FILTER MAINTENANCE
7177872
$13,64 Unit Price incl. VAT
14
BOX INTAKE
5450598
$309,74 Unit Price incl. VAT
15
FILTER ENGINE IN
5813713
$68,24 Unit Price incl. VAT
16
FILTER CLUTCH IN
5813712
$26,24 Unit Price incl. VAT
17
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
18
CAP DRAIN
5412960
$31,49 Unit Price incl. VAT
19
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
20
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
21
NUT-1/4-20 U-TYPE(.080-.170)
7670145
$4,19 Unit Price incl. VAT
22
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
23
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT
24
HOSE-BREATHER
5414167
$173,24 Unit Price incl. VAT
25
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
