1
Engine displacement
0
2
Year
1987
3
Trim
TRAIL BOSS 4X4 - W878127
4
Parts Catalog

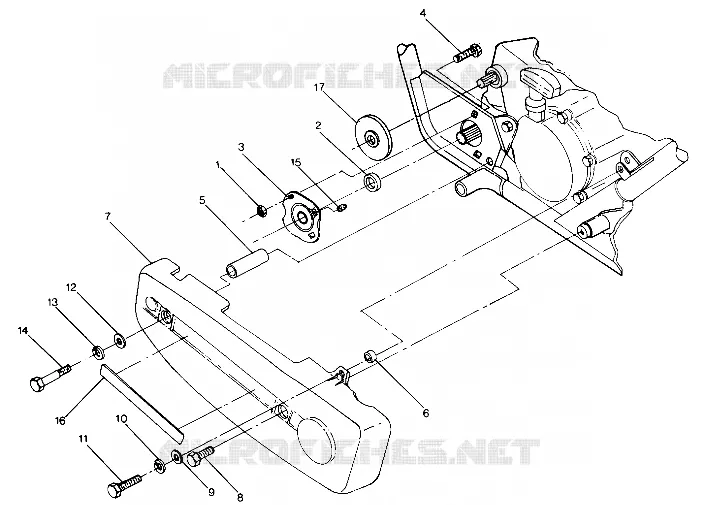

RIGHT HAND CHAIN COVER (4913521352026A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY (4913521352025A)
by
GEARCASE ASSEMBLY (4913521352027A)
RIGHT HAND CHAIN COVER (4913521352026A)
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
1
NUT
7542449
$7,34 Unit Price incl. VAT
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
BEARING RELUBE ASM. Substituted by 2201115 (Incl. 2)
1380008
Not Available
4
BOLT CARRIAGE(10)
7515484
Not Available
5
TUBE SPACER REAR
5332875
Not Available
6
TUBE SPACER UPPER
5332876
Not Available
7
GUARD CHAIN
5430845
Not Available
8
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
9
WASHER(10) Substituted by 7555843
7555729
7558302
$3,14 Unit Price incl. VAT
10
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
11
BOLT(10)
7512269
Not Available
13
WASHER(10)
7552606
$9,44 Unit Price incl. VAT
14
BOLT(10) Substituted by 7515339
7515328
7515339
$9,44 Unit Price incl. VAT
15
FITTING LUBE. 45 DEG. Substituted by 7080438
7080358
7080438
$19,94 Unit Price incl. VAT
16
DECAL DEMAND DRIVE [No Longer Available]
7072418
Not Available
17
DISC BRAKE REAR Substituted by 1910087
1910035
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
