Engine displacement
570
2
Year
2016
3
Trim
RANGER 570 EU
4
Parts Catalog

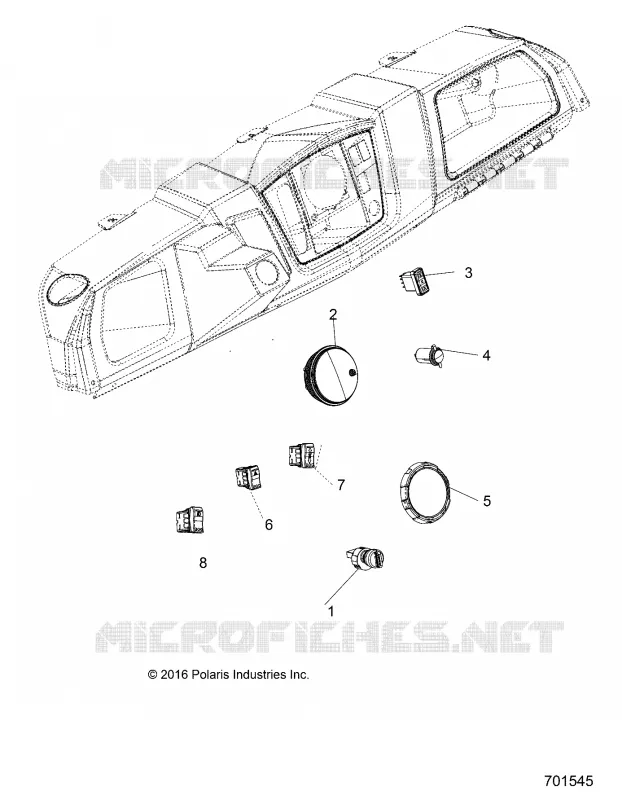

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
ELECTRICAL, IGNITION
ELECTRICAL, DASH INSTRUMENTS AND CONTROLS
6
7
8
6
7
7
8
1
SWITCH-KEY 4 POS ATV MT SLV
4012166
4081557
$204,74 Unit Price incl. VAT
2
ASM. CLUSTER [INCL. RUBBER MOUNT]
3280632
$503,99 Unit Price incl. VAT
2
MOUNT-RUBBER INSTR. CLUSTER
5412138
$83,99 Unit Price incl. VAT
2
INDICATOR-TURN TRAILER TRACTOR [S57F1]
4014050
Not Available
2
BRKT-INDICATOR MOUNT BLK [S57F1]
5262335458
Not Available
2
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
3
SWITCH-AWD
4012747
$104,99 Unit Price incl. VAT
4
RECEPTACLE POD MOUNT 12 VOLT
4015439
4012393
$68,24 Unit Price incl. VAT
5
BEZEL-INSTRUMENT CLUSTER BLK
5438945
$29,39 Unit Price incl. VAT
6
SWITCH HEADLIGHT
4015820
Not Available
7
SWITCH-DRIVEMODE
4015553
$136,49 Unit Price incl. VAT
8
SWITCH FOG LIGHT [SF1]
4015847
Not Available
