RIDE COMMAND DASH FOR RANGER 1000 NORTHSTAR FACTORY CHOICE 49S & 50S FROM 2020

PREP ROOF, LOWER CLOSEOFF, DASH AND FLOOR

FRONT SUSPENSION SHOCK MOUNTING

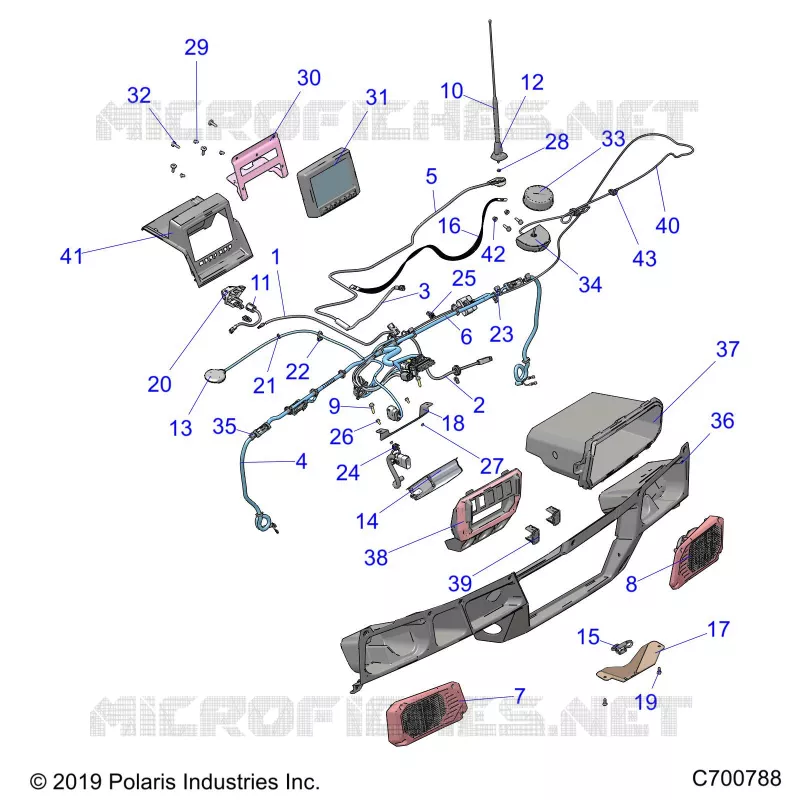

RIDE COMMAND DASH

1

SENSOR AIR TEMP

2410443

$125,99 Unit Price incl. VAT

2

HARNESS USB RC [TO 9/15/2020]

2414297

$120,74 Unit Price incl. VAT

3

HARNESS-AM/FM ADAPTER

2414431

$141,74 Unit Price incl. VAT

4

HARNESS-SPEAKER DASH RC

2414481

$68,24 Unit Price incl. VAT

5

ASM-HARNESS AM/FM ANTENNA 1050

2414727

$99,74 Unit Price incl. VAT

6

HARNESS-RIDE COMMAND

2415224

$435,74 Unit Price incl. VAT

7

ASM-SPKR DASH RGR LH

2637398

$241,49 Unit Price incl. VAT

8

ASM-SPKR DASH RGR RH

2637399

$241,49 Unit Price incl. VAT

9

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

10

ANTENNA MAST AM/FM SHORT

4014849

$209,99 Unit Price incl. VAT

11

CAMERA-FRONT WIDE ANGLE

4016639

$362,24 Unit Price incl. VAT

12

MOUNT-ANTENNA 90-DEG ADJ NUT

4016695

$89,24 Unit Price incl. VAT

13

ANTENNA GPS EXT

4017533

$141,74 Unit Price incl. VAT

14

AMP AUDIO DASH MOUNT 2 CH

4017614

$593,24 Unit Price incl. VAT

15

CAM IR ILLUMINATED AMB SENSE

4017665

$367,49 Unit Price incl. VAT

16

STRAP-GROUND ANTENNA AM/FM

4017858

$57,74 Unit Price incl. VAT

17

BRKT-CAMERA MNT REAR Z BLK

5265002329

$89,24 Unit Price incl. VAT

18

BRKT-AMP 2CH

5265247

$62,99 Unit Price incl. VAT

19

SCR-TXPH-#14X5/8 HI/LO CLR

7520803

$6,29 Unit Price incl. VAT

20

MOUNT CAMERA FRONT BLK

5454705070

$31,49 Unit Price incl. VAT

21

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

22

CLIP-EDGE 1-3MM 6-45MM SERT.

7081808

$10,49 Unit Price incl. VAT

23

CLIP EDGE HARNESS

7081890

$19,94 Unit Price incl. VAT

24

CLIP-EDGE 3-6MM THICKNESS

7082404

$17,84 Unit Price incl. VAT

25

CLIP-FIR TREE 9.7-10.0MM HOLE

7082414

$7,34 Unit Price incl. VAT

26

SCREW-M5X0.8X10 HX/FL-YD

7517795

$9,44 Unit Price incl. VAT

27

NUT-M5X.8 HX NYL-Y

7546601

$2,09 Unit Price incl. VAT

28

NUT-HXFL-M5X0.8 A2SS

7547437

$6,29 Unit Price incl. VAT

29

SCR-TORX BTNHD M6X12 0600129

7518330

$9,44 Unit Price incl. VAT

30

BRKT-7# DISPLAY G2 RC BLK [VAG]

5268173329

$23,09 Unit Price incl. VAT

31

ASM-DISPLAY DIG P7 PRG

3280862

$3 023,99 Unit Price incl. VAT

32

SCR-TXTH-M6X1.0X25 ZFB

7519650

$7,34 Unit Price incl. VAT

33

ANTENNA V2V

4017534

$661,49 Unit Price incl. VAT

34

BRACKET V2V ANTENNA

5455351

$19,94 Unit Price incl. VAT

35

CLIP-EDGE 1-3mm THICKNESS

7082403

$9,44 Unit Price incl. VAT

36

DASH-STORAGE SPKR RTR HVAC BLK

5455831070

$194,24 Unit Price incl. VAT

37

BIN-GOVEBOX BLK RC [FROM 10/20/2022]

5455723070

$89,24 Unit Price incl. VAT

38

DASH-CONTROL ROUTER BLK

5454259070

$99,74 Unit Price incl. VAT

39

SWITCH-PLUG BLANK

4018108

$26,24 Unit Price incl. VAT

40

HARNESS-V2V ANTENNA

2414287

$220,49 Unit Price incl. VAT

41

BEZEL-7# DISPLAY BLK

5454382070

$104,99 Unit Price incl. VAT

42

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

43

CLIP-EDGE 1-3mm THICKNESS

7082403

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
