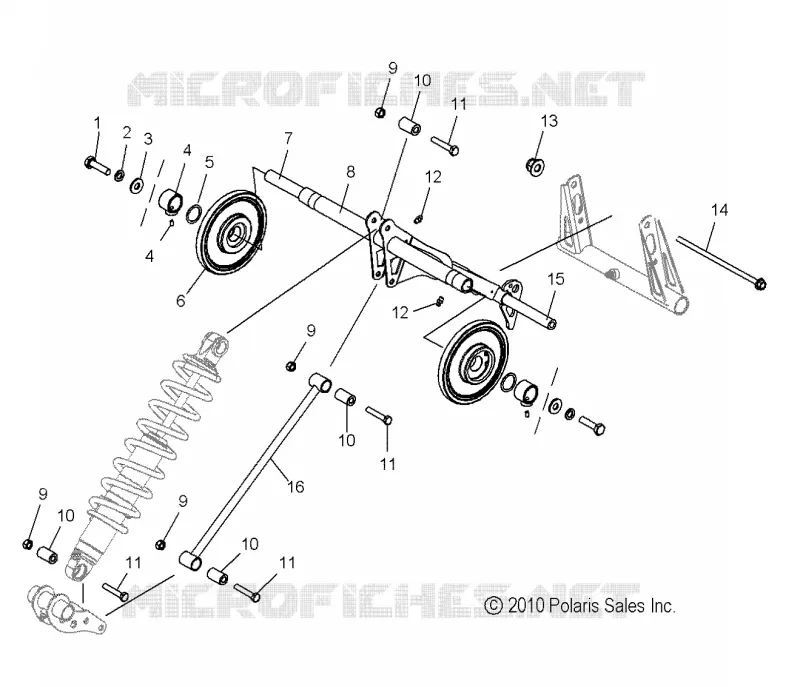

REAR SUSPENSION TORQUE ARM
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
by
TOOL KIT AND OWNERS MANUAL
REAR SUSPENSION TORQUE ARM
11
11
11
11
12
12
13
14
15
16
1
SCR-HH M10X40 10.9 ZPC P80
7519223
$7,34 Unit Price incl. VAT
2
WSHR-M10 SPRING LOC ZPC
7556558
$4,19 Unit Price incl. VAT
3
WSHR-M10.5X25X2.4 ZPC
7556559
$6,29 Unit Price incl. VAT
4
SPACER
5135424
$34,64 Unit Price incl. VAT
4
SCR-10-24-3/8 SOC/SET-Y
7518262
$7,34 Unit Price incl. VAT
5
WASHER SPRING
7571605
$11,54 Unit Price incl. VAT
6
BEARING
3514303
$20,99 Unit Price incl. VAT
6
ASM-WHEEL BOGIE LWT PLAIN 5.62
1590328
$99,74 Unit Price incl. VAT
6
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
7
SHAFT-20.32 X 391.41 HOLLOW
5138059
$115,49 Unit Price incl. VAT
8
ARM TORQUE REAR NARROW BLACK
1543150329
$335,99 Unit Price incl. VAT
9
NUT-HEX-M8X1.25 8 ZOD NYL
7547480
$4,19 Unit Price incl. VAT
10
ASM-BUSHING SHOCK
1823987
$27,29 Unit Price incl. VAT
10
BUSHING-M8X17.5X30
5137230
$6,29 Unit Price incl. VAT
11
SCREW-HH M8X1.25X45 8.8 ZOD
7519097
$3,14 Unit Price incl. VAT
12
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
13
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
14
SCR-HXFL-M8X1.25X150 8.8 ZOD
7519200
$17,84 Unit Price incl. VAT
15
SHAFT
5337198
$52,49 Unit Price incl. VAT
16
ROD SHOCK BLACK
1542797329
$120,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
