Parts Catalog
OIL PUMP ASSEMBLY STARLITE 0943427 (4924992499040A)
5
Parts Diagram
Parts Catalog
OIL PUMP ASSEMBLY LITE 0943433 AND LITE DELUXE 0943431 (4924992499039A)
by
MAGNETO ASSEMBLY LITE 0943433,STARLITE 0943427 AND LITE DELUXE 0943431 (4924992499041A)

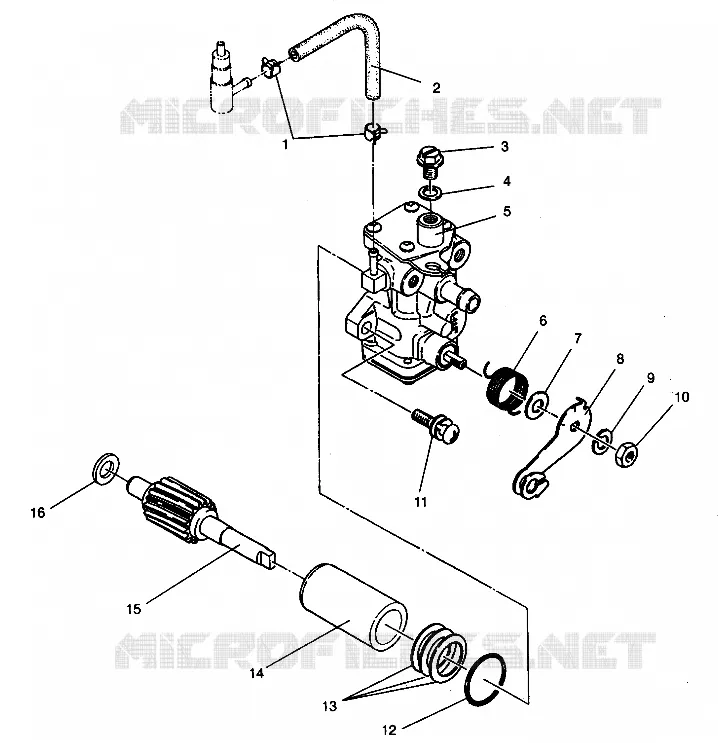

OIL PUMP ASSEMBLY STARLITE 0943427 (4924992499040A)
1
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
2
PIPE VINYL
3084607
Not Available
3
SCREW-AIR VENT
3083125
Not Available
4
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
5
PUMP OIL (Incl.2-9)
3084317
Not Available
6
SPRING RETURN
3083427
Not Available
7
COLLAR CAM SHAFT
3083445
$4,19 Unit Price incl. VAT
8
LEVER CONTROL
3084318
$43,56 Unit Price incl. VAT
9
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
10
NUT
3083120
$6,29 Unit Price incl. VAT
11
SCREW&WASHER (10)
3083783
$4,19 Unit Price incl. VAT
12
O RING
3083127
Not Available
13
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
13
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
13
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
14
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
15
GEAR SMALL
3083429
Not Available
16
SPACER *
3083428
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
