1
Engine displacement
500
2
Year
2002
3
Trim
INT'L BIG BOSS 6X6 - A02CL50DA
4
Parts Catalog
HANDLEBAR HEADLIGHT POD
5
Parts Diagram
Parts Catalog
ELECTRICAL
by
CRANKCASE

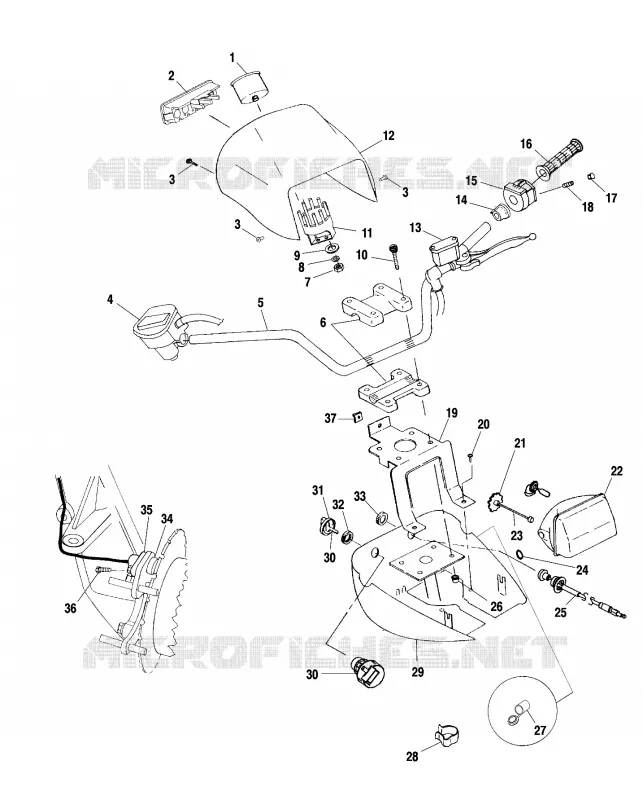

HANDLEBAR HEADLIGHT POD
1
1
2
2
3
3
3
13
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
30
30
30
30
30
31
32
33
34
35
36
37
1
1
2
2
3
3
3
13
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
30
30
30
30
30
31
32
33
34
35
36
37
1
2
3
13
5
6
7
8
9
10
11
12
13
14
1
2
2
2
3
13
13
5
6
7
7
8
8
9
9
10
11
11
12
13
13
14
15
16
17
1
2
2
2
3
13
13
5
6
7
7
8
8
9
9
10
11
11
12
13
13
14
15
16
17
1
ASM-SPEEDOMETER KILO 3.38# 6P (EB)
3280358
Not Available
1
SPEEDOMETER 3.38# 6-PULSE (AA)(AB)(AE)(AF)(AJ)(AK)
3280363
Not Available
2
Panel Indicator Light
4010315
Not Available
2
BULB-INDICATOR HOBBS
4010416
$18,89 Unit Price incl. VAT
3
SCREW(10)
7511881
$2,09 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
TUBE-HANDLEBAR GEN4 POD 6X6BLK [SEG]
5244581067
$152,24 Unit Price incl. VAT
6
Block Handlebar Retainer
5630616067
Not Available
6
Kit Handlebar Block [Incl. Blocks and 7 11 29]
2200774
Not Available
7
Nut
7541933
$7,34 Unit Price incl. VAT
8
WASHER LOCK (S.S.)(10)
7555868
Not Available
9
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
10
SCREW(10)
7515189
7515189-CO
$2,09 Unit Price incl. VAT
11
Clamp Speedometer
3280291
Not Available
12
POD-HEADLIGHT UPPER E B GREEN
5433763195
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
Spacer Switch
5433903
Not Available
15
Switch Handlebar
4010422
$241,49 Unit Price incl. VAT
16
Grip Handlebar
5433834070
$52,49 Unit Price incl. VAT
17
PLUG-HOLE .25 FLUSH (BPF-1/4)
5432952
$12,59 Unit Price incl. VAT
18
SCREW SET
7517625
$9,44 Unit Price incl. VAT
19
Bracket Pod Mounting
5244969067
5244969-329
$68,24 Unit Price incl. VAT
20
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
21
KNOB ADJUSTING
4032079
$52,49 Unit Price incl. VAT
22
KIT-HARNESS HEADLIGHT
2204143
$141,74 Unit Price incl. VAT
22
Asm. Head Lamp
2410268
$204,74 Unit Price incl. VAT
22
BULB-HEADLIGHT 50 WATT
4010253
$52,49 Unit Price incl. VAT
23
Rod Adjusting
4032078
Not Available
24
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
25
Cable Choke
7081008
$152,24 Unit Price incl. VAT
26
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
27
Asm. 12V Power Plug
4010283
Not Available
28
CLIP CABLE RETAIN (10)
7080631
Not Available
29
Pod Headlight Lower
5433762070
Not Available
30
Switch Ignition [Incl. Key]
4010390
4083589
$202,64 Unit Price incl. VAT
30
Blank Key Series 2200 2300 2700 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.
4010321
4083604
$27,29 Unit Price incl. VAT
30
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
31
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
32
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
33
NUT CHOKE
7080922
$5,76 Unit Price incl. VAT
34
CAP HALL EFFECT
5132382
$47,24 Unit Price incl. VAT
35
Sensor
4010298
$220,49 Unit Price incl. VAT
36
SCREW
7517658
$10,49 Unit Price incl. VAT
37
CLIP-SCREW #8/10 .03-.10 PANEL
7670127
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
