1
Engine displacement
570
2
Year
2018
3
Trim
RANGER 570 FULL SIZE
4
Parts Catalog

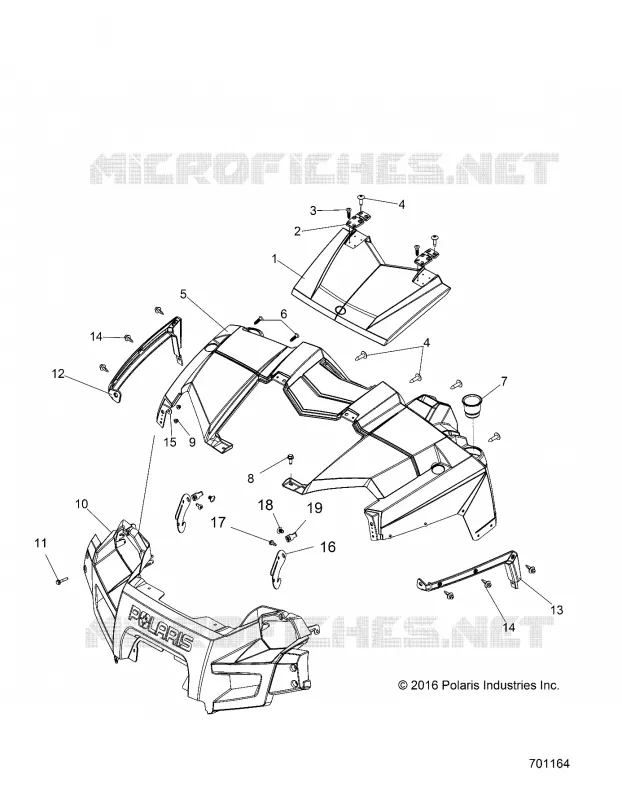

HOOD AND FRONT FASCIA
5
Parts Diagram
Parts Catalog
WHEELS, FRONT
by
HOOD LATCH
HOOD AND FRONT FASCIA
1
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
1
HOOD-CTR ACCESS RNGR SGEBRSH M [A1]
5438256498
$330,74 Unit Price incl. VAT
1
Hood Center Access Solar Red [A7]
5438256342
$330,74 Unit Price incl. VAT
2
ASM-HINGE
5437902
$19,94 Unit Price incl. VAT
3
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
4
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
5
K-HOOD W/DASH RGR FS SB GRN [INCLUDES DECAL][A1]
2207125
$1 259,99 Unit Price incl. VAT
5
K-HOOD W/DASH RGR FS SLR RED [INCLUDES DECAL][A7]
2207126
$1 259,99 Unit Price incl. VAT
6
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
7
HOLDER-CUP
5436836
$36,74 Unit Price incl. VAT
8
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
10
FASCIA-FRONT RANGER BLK
5437575070
$351,74 Unit Price incl. VAT
11
SCR-HXFLM6X1.0X35 8.8 ZPB
7520292
$7,34 Unit Price incl. VAT
12
FENDER-FRONT W/FLARE RH BLK
5437569070
$68,24 Unit Price incl. VAT
13
FENDER-FRONT W/FLARE LH BLK
5437568070
$68,24 Unit Price incl. VAT
14
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
15
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
16
BRKT-HEADLIGHT
5262056
$16,79 Unit Price incl. VAT
17
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
18
CLIP-PLASTIC DART NYLON
7670088
$3,14 Unit Price incl. VAT
19
NUT-1/4-20 U-TYPE(.080-.170)
7670145
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
