1
Engine displacement
600
2
Year
2004
3
Trim
600 / 700 / 800 PRO X / PRO X2
4
Parts Catalog
IFS SHOCK (PRO X 2)
5
Parts Diagram
Parts Catalog
IFS SHOCK (PRO X)
by
FRONT TRACK SHOCK (PRO X)

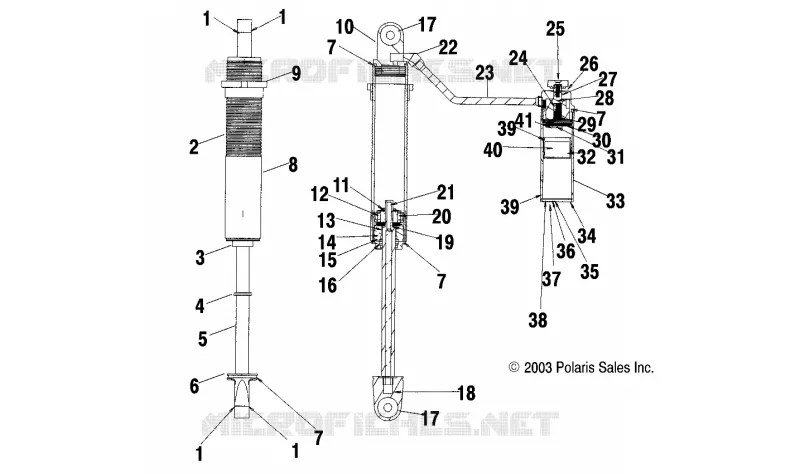

IFS SHOCK (PRO X 2)
-
1
1
1
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
25
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
40
41
-
Shock IFS
7042296
Not Available
1
SNAP RING END BEARING
1800041
$15,74 Unit Price incl. VAT
2
Body Threaded
1800100
Not Available
3
Asm. Shaft Seal Housing
1800131
Not Available
4
O-RING
1800095
$2,09 Unit Price incl. VAT
5
Shaft
1800102
Not Available
6
RING SPRING RETAINING
1800116
$120,74 Unit Price incl. VAT
7
O-RING 2-125
1800027
$3,66 Unit Price incl. VAT
8
Sleeve Wear
1800191
$40,94 Unit Price incl. VAT
9
RETAINER SPRING
1800046
$68,24 Unit Price incl. VAT
10
Loop Body
1800098
Not Available
11
WASHER
1800050
$7,34 Unit Price incl. VAT
12
Asm. Piston w/Band .076 Gold
1800197
Not Available
13
BUSHING SHAFT
1800038
$24,14 Unit Price incl. VAT
14
O-RING SHAFT SEAL HEAD
1800037
$3,14 Unit Price incl. VAT
15
Seal Shaft U-Cup
1800035
$52,49 Unit Price incl. VAT
16
WIPER 5/8# D/TYPE- BLK
1800034
$68,24 Unit Price incl. VAT
17
BEARING END
1800040
$152,24 Unit Price incl. VAT
18
Eyelet Shaft
1800103
Not Available
19
Washer
1800194
Not Available
20
Band Wear
1800026
1800297
$62,99 Unit Price incl. VAT
21
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
22
Fitting
1800193
$70,86 Unit Price incl. VAT
23
Hose
1800192
$167,99 Unit Price incl. VAT
24
Drum
1800195
$173,24 Unit Price incl. VAT
25
Knob
1800123
Not Available
25
SCREW
1800196
$7,34 Unit Price incl. VAT
26
SPRING-D-TENT
1800128
$20,99 Unit Price incl. VAT
26
BALL D-TENT
1800127
$12,59 Unit Price incl. VAT
26
Housing Adjuster
1800126
$146,46 Unit Price incl. VAT
26
O-Ring
1800129
Not Available
27
O-RING 2-010
1800094
$1,56 Unit Price incl. VAT
28
Shim Valve
1800052
Not Available
29
Ball Check
1800125
Not Available
30
Valve Shim
1800072
Not Available
31
Bolt Check Ball
1800124
$14,16 Unit Price incl. VAT
32
Band Wear
1800029
Not Available
33
Reservoir Body
1800120
$157,49 Unit Price incl. VAT
34
SNAP RING
1800019
$13,64 Unit Price incl. VAT
35
Valve Needle
1800107
Not Available
36
O-Ring
1800108
$2,09 Unit Price incl. VAT
37
SCREW BUTTON HEAD
1800109
$6,29 Unit Price incl. VAT
38
Cap End
1800106
Not Available
39
O-RING
1800028
$3,14 Unit Price incl. VAT
40
Piston Reservoir w/Bleed Screw
1800189
$73,07 Unit Price incl. VAT
40
O-Ring w/Bleed Screw
1800190
$2,72 Unit Price incl. VAT
41
Washer
1800118
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
