Parts Catalog
CHASSIS AND SEAT SPORT, TRAIL, 400 AND 600 (4912701270001A)
5
Parts Diagram
Parts Catalog
CARBURETOR SPORT (4912701270056A)
by
STEERING SPORT, TRAIL, 400 AND 600 (4912701270009A)

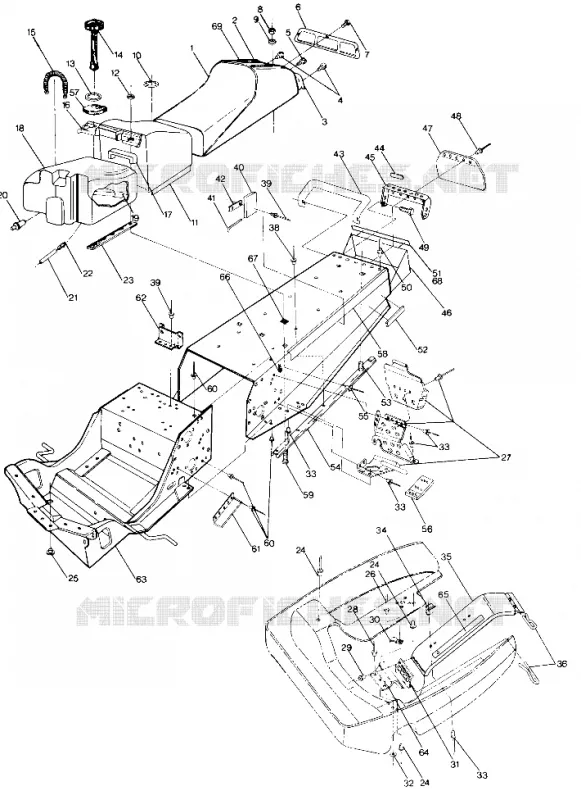

CHASSIS AND SEAT SPORT, TRAIL, 400 AND 600 (4912701270001A)
-
SEAT ASM (400&600) [No Longer Available] (Incl. 2-7) (400 600)
2681278
Not Available
-
SEAT ASM (SPORT) Substituted by 2200747 (Incl. 2-7) (Sport)
2681281
Not Available
1
SEAT ASM (TRAIL) Substituted by 2200748 (Incl. 2-7) (Trail)
2681273
Not Available
2
COVER SEAT (SPORT) Substituted by 2200738 (Sport)
2681282
Not Available
2
COVER SEAT (TRAIL) Substituted by 2200739 (Trail)
2681274
Not Available
2
COVER SEAT (600) Substituted by 2681330 (400 600)
2681279
Not Available
3
HOUSING TAILLIGHT
5430425
Not Available
4
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
5
BULB BRAKELIGHT
4030019
Not Available
6
LENS TAILLIGHT
5430423
Not Available
7
SCREW(10)
7511840
Not Available
8
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
9
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
10
GROMMET-GAS TANK
5430575
Not Available
11
COVER TANK (400) (400)
2681277
Not Available
11
COVER TANK (TRAIL) Substituted by 2200739 (Trail)
2681272
Not Available
11
COVER TANK (600) [No Longer Available] (600)
2681280
Not Available
11
COVER TANK (SPORT) Substituted by 2200738 (Sport)
2681283
Not Available
13
GASKET-GAS CAP Substituted by 5810513
5810142
5810513
$15,74 Unit Price incl. VAT
14
GAUGE GAS Substituted by 2511246
2511149
2511246
$83,99 Unit Price incl. VAT
15
SPRING TANK FRONT
7042020
$27,29 Unit Price incl. VAT
16
STRAP GAS TANK Substituted by 5222330-067
5221722
Not Available
17
CUSHION TANK H.D.
5420126
Not Available
18
TANK GAS (Incl. 19-22)
2511150
Not Available
19
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
20
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
21
KIT-TANK VENT
2200190
Not Available
22
VENT-TANK
5430579
Not Available
23
PAD-GAS TANK
5810063
$7,97 Unit Price incl. VAT
24
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
25
PLUG
7080288
Not Available
26
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
27
FOOTREST ASM LH
2200250
Not Available
27
FOOTREST ASM RH
2200254
Not Available
28
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
29
RIVET
7621330
$2,09 Unit Price incl. VAT
30
CLIP WIRING (10) Substituted by 7080665
4020035
Not Available
31
HINGE
5210728
Not Available
31
HINGE (TRAIL)
5211047
Not Available
32
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
33
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
34
CLIP BELT Substituted by 5222769 (400 600)
5220817
5222769
$15,74 Unit Price incl. VAT
35
FOOTREST ASM RH
2200254
Not Available
35
GUARD CLUTCH Substituted by 5240965
5230118
Not Available
36
PIN RETAINING (10)
7080216
7080698
$17,84 Unit Price incl. VAT
36
PIN FRONT (TRAIL)
7080311
Not Available
38
RIVET Substituted by 7661638
7661625
7661638
$2,09 Unit Price incl. VAT
39
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
40
BELT SEAT
7080322
Not Available
41
WIRE-SEAT-BELT
5223864
Not Available
42
PLATE-SEAT BELT
5210842
Not Available
43
BUMPER REAR [No Longer Available]
5224313
Not Available
43
BUMPER-REAR [No Longer Available]
5224228
Not Available
44
DECAL TRACK Substituted by 7072872
7072132
Not Available
45
PANEL-BACK [No Longer Available]
5220714
Not Available
46
PANEL BACK [No Longer Available]
5220767
Not Available
47
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
48
RIVET-POP 3/16 (.376-.500) AL-LFB
7621460
$2,09 Unit Price incl. VAT
49
SCREW(10)
7512252
Not Available
50
RIVET-POP3/16X.402(.126-.250)
7621425
$2,09 Unit Price incl. VAT
51
DECAL [No Longer Available] (400 SKS Only) (400)
7072414
Not Available
52
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
53
BOLT
7512103
$6,29 Unit Price incl. VAT
54
STRIP-WEAR (600 600 SE)
5510130
Not Available
55
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
56
PLATE TUNNEL RH
5220635
Not Available
56
PLATE TUNNEL LH
5220634
Not Available
57
FOAM FILLER
5810201
Not Available
58
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
59
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
61
GUARD
5223789
Not Available
62
BRACKET Substituted by 5221932-067
5221932
Not Available
63
BULKHEAD (400) [No Longer Available] (400)
1011613
Not Available
63
BULKHEAD (600/650) (600)
1011614
Not Available
63
BULKHEAD (TRAIL) (Trail)
1011612
Not Available
63
BULKHEAD (SPORT&GT) (Sport)
1011615
Not Available
64
BRACKET HINGE Substituted by 5241437
5220406
Not Available
65
DECAL WARNING [No Longer Available] (600 SE)
7072153
Not Available
66
SNAP-MALE(10)
7080227
Not Available
67
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
68
DECAL [No Longer Available] (Trail SKS Only) (Trail)
7072416
Not Available
69
BUCKLE&STRAP (Trail)
2681291
Not Available
69
BUCKLE&STRAP (Sport 400 600)
2681290
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
