1
Engine displacement
570
2
Year
2018
3
Trim
570 SPORTSMAN 6X6
4
Parts Catalog
SUSPENSION
5

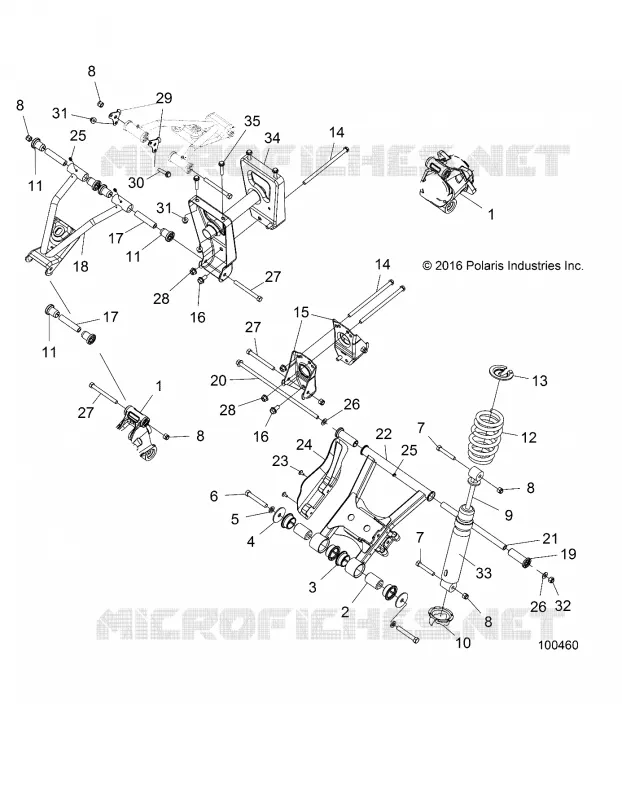

Parts Diagram
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
by
DECALS
SUSPENSION
11
11
11
12
13
14
14
15
16
16
17
17
18
18
19
20
21
22
22
23
24
24
25
25
26
26
27
27
27
28
28
29
30
31
31
32
33
34
35
1
CARRIER-BEARING WHEEL RH(MACH)
5137436
$175,34 Unit Price incl. VAT
1
CARRIER-BEARING WHEEL LH(MACH)
5139363
$188,99 Unit Price incl. VAT
2
BUSHING BEARING CARRIER
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL LOWER BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
5
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
6
Screw
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
9
SHOCK-RR IRS 6X6
7043451
$430,49 Unit Price incl. VAT
10
CAM-SPRING ADJUST 1-3/8
5631014
$68,24 Unit Price incl. VAT
11
Bushing A-Arm. Short Black [TO 9/9/2023]
5438895
5439270
$4,19 Unit Price incl. VAT
12
Spring Compression 130/165 Black
7041986067
$104,99 Unit Price incl. VAT
13
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
14
BOLT-3/8-16X7 HX FLNG GR5-Y
7518365
$13,64 Unit Price incl. VAT
15
BRACKET CONTROL ARM PIVOT BLACK
5254267329
5273355-329
$83,99 Unit Price incl. VAT
16
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
17
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
18
ARM CONTROL UPPER BLACK RH
1017748067
$178,49 Unit Price incl. VAT
18
ARM CONTROL UPPPER BLACK LH
1017747067
$178,49 Unit Price incl. VAT
19
BUSHING-A-ARM LONG 102.36MM
5436973
$9,44 Unit Price incl. VAT
20
SCR-3/8-24X12.25 FLG HX GR8-Y
7519065
$36,74 Unit Price incl. VAT
21
TUBE-PIVOT .625ODX.385IDX11.12
5137562
$62,99 Unit Price incl. VAT
22
Arm Control Lower Black LH
1015888067
$225,74 Unit Price incl. VAT
22
Arm Control Lower Black RH
1015889067
$225,74 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
SHIELD CV REAR RH MATTE BLACK
5435009070
$47,24 Unit Price incl. VAT
24
SHIELD CV REAR LH MATTE BLACK
5435008070
$47,24 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
WASHER
7556153
$3,66 Unit Price incl. VAT
27
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
28
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
29
BRKT-CNTRL ARM PIVT 6X6 E-COAT [TO 6/7/2022]
5260989329
5273356-329
$83,99 Unit Price incl. VAT
30
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
31
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
32
NUT-3/8-24 HEX LOC GR8
7547344
$1,56 Unit Price incl. VAT
33
Sleeve Shock Protector
5433551
$83,99 Unit Price incl. VAT
34
WELD-SUPPORT MID 6X6 BLK
1543627067
$220,49 Unit Price incl. VAT
35
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
