1
Engine displacement
570
2
Year
2021
3
Trim
SPORTSMAN 570 EPS SP EU / ZUG / TRACTOR
4
Parts Catalog

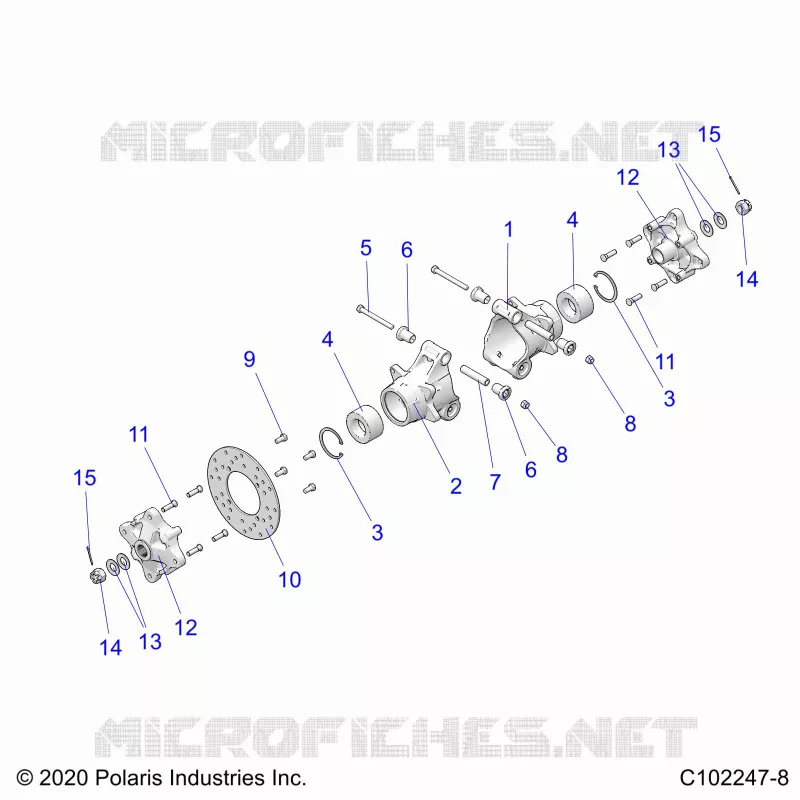

REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC
5
Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
REAR SUSPENSION SHOCK
REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC
1
1
3
3
4
4
5
6
6
6
6
7
8
8
9
10
11
11
12
12
13
13
14
14
15
15
1
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
2
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
3
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
4
BEARING-WHEEL HD 40X74X40MM [OPTIONAL]
3515087
$108,14 Unit Price incl. VAT
5
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
6
Bushing A-Arm. Short Black [TO 9/9/2023]
5438895
5439270
$4,19 Unit Price incl. VAT
6
ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)
1543326
$24,14 Unit Price incl. VAT
7
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
8
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
9
SCR-HH-3/8-16X0.75 GR5 ZY3
7518903
$7,34 Unit Price incl. VAT
10
DISC-BRAKE REAR 8.625X.188
5248250
$141,74 Unit Price incl. VAT
11
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
12
Hub Rear Wheel Black
5135113
5143629
$157,49 Unit Price incl. VAT
13
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
14
NUT-M18X1.5 CASTLE ZINC/YELLOW
7547337
$3,66 Unit Price incl. VAT
15
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
