1
Engine displacement
500
2
Year
2006
3
Trim
500 WIDETRAK LX
4
Parts Catalog

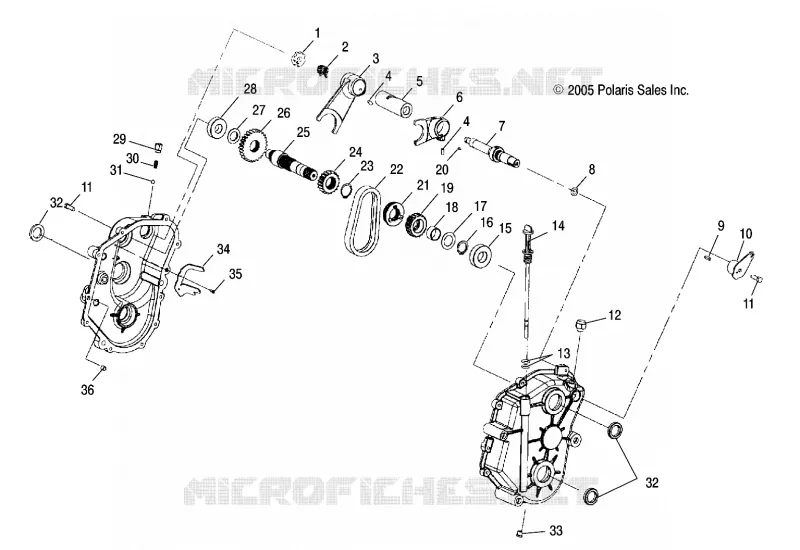

GEARCASE (1 OF 2)
5
Parts Diagram
Parts Catalog
BRAKE
by
GEARCASE (2 OF 2)
GEARCASE (1 OF 2)
23
24
25
26
27
28
29
30
31
32
33
-
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
-
Asm. Gearcase [Incl. All]
1341494
Not Available
1
Index Shift
3234170
Not Available
2
Spring Torsion
3234171
Not Available
3
FORK SHIFT
3233503
$220,49 Unit Price incl. VAT
4
PIN DOWELL
3233375
Not Available
5
DRUM SHIFT
3233504
Not Available
6
FORK SHIFT HIGH
3233505
Not Available
7
SHAFT SHIFT
3233403
$293,99 Unit Price incl. VAT
8
O-RING
5410440
$8,39 Unit Price incl. VAT
9
KEY (3/16 X 1/4)
3233414
Not Available
10
BELLCRANK WTD
3233393
$79,47 Unit Price incl. VAT
11
SCREW
3233026
$12,59 Unit Price incl. VAT
12
SWITCH
3233410
$44,82 Unit Price incl. VAT
13
O-RING
5410675
$3,14 Unit Price incl. VAT
14
DIPSTICK Substituted by 1332143
5431419
1332143
$89,24 Unit Price incl. VAT
15
BEARING
3233019
$54,59 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
17
WASHER THRUST
3233468
$29,39 Unit Price incl. VAT
18
BEARING NEEDLE
3233383
Not Available
19
SPROCKET 19T [NOTE: MUST ORDER WITH REF. 5]
3233509
$225,74 Unit Price incl. VAT
20
KEY (1/8 X 1/4)
3233415
7710608
$6,29 Unit Price incl. VAT
21
DOG ENGAGEMENT [NOTE: MUST ORDER WITH REF. 9]
3233470
$167,99 Unit Price incl. VAT
22
CHAIN SILENT (.75W 40P)
3233508
3222166
$194,24 Unit Price incl. VAT
23
RING RETAINING
3233424
Not Available
24
SPROCKET 19T
3233507
$62,99 Unit Price incl. VAT
25
SHAFT INPUT
3233506
$351,74 Unit Price incl. VAT
26
GEAR 27T
3233419
$188,99 Unit Price incl. VAT
27
SPACER
3233416
$9,23 Unit Price incl. VAT
28
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
29
Extension Detent
3234173
$26,24 Unit Price incl. VAT
30
SPRING DETENT SHIFTER
7041483
$83,99 Unit Price incl. VAT
31
BALL DETENT
7080310
$10,49 Unit Price incl. VAT
32
SEAL DUAL LIP
3610134
$73,49 Unit Price incl. VAT
33
PLUG
7052115
$10,49 Unit Price incl. VAT
34
DEFLECTOR OIL
3233406
Not Available
35
SCREW Substituted by 3233747
3233033
Not Available
36
PIPE KNOCK
3233021
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
